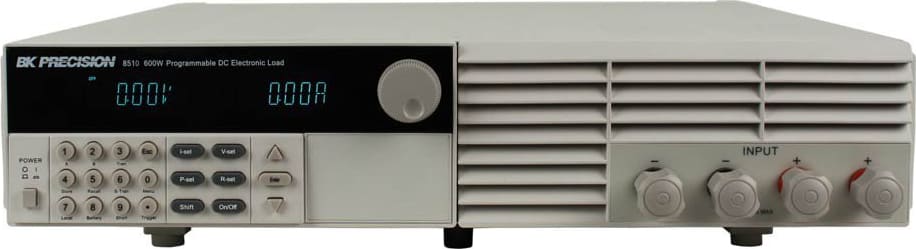

BK Precision 8510 - 600W Programmable DC Electronic Load

0 reviews | UPC: 817050851007 | Model: BK Precision 8510


600W Programmable DC Electronic Load

  • Replaced by: 8510B
  • USB to TTL serial converter cable, RS232 to TTL serial converter cable and application software included
  • Constant current (CC), resistance (CR), voltage (CV) and power (CP) operation
  • Wide voltage and current range, 0 to 500 V, 0 to 240 A (5000 W max)
  • Low minimum operating voltage of < 0.1 V and minimum input resistance of 5 mΩ (model 8518) allowing the load to sink high current at low voltages, required for fuel and solar cell applications
  • Selected models operate up to 500 V, suitable for high voltage applications
  • Built-in transient generator
  • All models are rack mountable. Compact 300 W and 600 W models for bench use
  • Short circuit test
  • Built-in high resolution (0.1 mA/1 mV) voltage and current measurement (models 8500 & 8502)
  • Bright, easy to read display (VFD technology)
  • Over-Current/Over-Voltage/Over-Power/Over- Temperature Protection
  • List mode operation for increased throughput.
  • Battery testing mode to provide A*hr rating of battery (ending voltage level is adjustable)
  • Flexible triggering: Create trigger events by front panel keystroke, back panel TTL signal, or software.
  • Remote voltage sensing to compensate for the effect of voltage drop in wires.
  • Thermostatically-controlled fans allow operation in quiet environments with minimal disruption.
  • Store 25 instrument setups
View Product Details

List Price: $2,280.00

In Stock:
