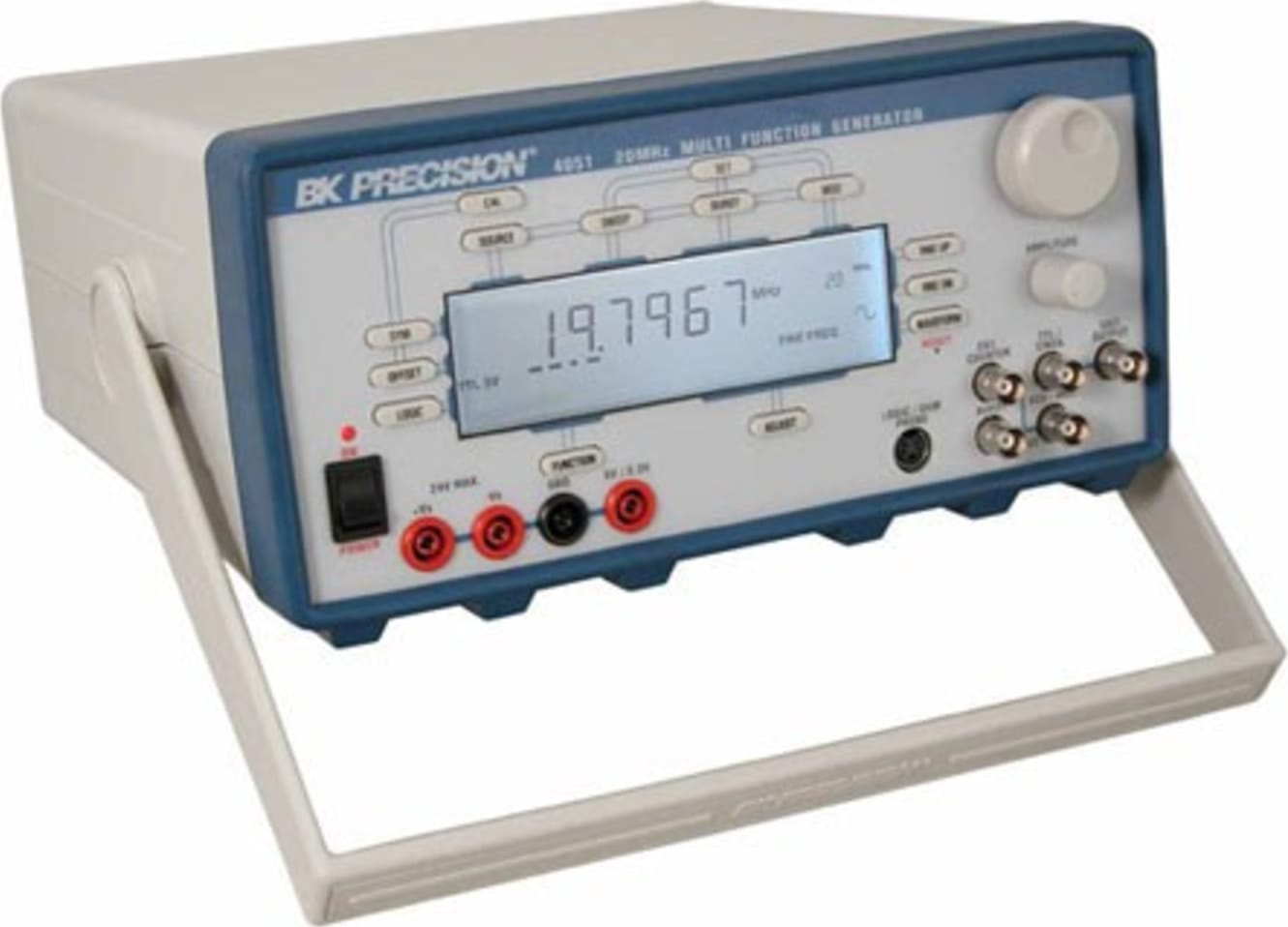

Wave forms: Sine, Square, Triangle, ±Pulse, ±Ramp Range: 0.15 Hz to 20 MHz in 8 ranges Resolution: 0.01, 0.1, 1, 10, 100 Hz Display Tuning Range: Coarse: 10:1, Fine: ±3% of Coarse Setting Variable Duty Cycle: 15:85:15 Continuously variable Operating Modes: Normal, Sweep, VCG, AM, FM, Single Burst, Multiple Burst Frequency Stability: ±0.2% of the tuning frequency Impedance: 50 ohm ±10% Level: 200 mV to 20V p-p Open-circuit, 10V p-p into 50 ohm to 10 MHz Amplitude Control: Variable, 20 dB range typical DC Offset: Preset : ±0.10 V typical, Variable: ±10V opencircuit, ±5 V into 50 ohm Distortion: 1.0 % THD from 10 Hz to 100 KHz Flatness: ±3% (0.3 dB) 0.15 Hz to 200 KHz±5% (0.45 dB) 200 KHz to 10 MHz±20% (2.0 dB) 10 MHz to 20 MHz Symmetry: 2% 0.15 Hz to 100 KHz Rise Time: 20 ns Overshoot & Undershoot: 6% Linearity: 98% up to 100 KHz TTL OUTPUT (Open - Circuit Condition for Frequencies 2 MHz) Max. Logic Low Level Voltage: 0.4 V Min. Logic High Level Voltage: 2.6 V Rise Time: 15 ns Duty Cycle: 50% typical CMOS OUTPUT (Open - Circuit Condition for Frequencies 2 MHz) Level: Output from 3.0 V to 15.0 V ±0.5 Vp-p Rise Time: 120 ns Input Voltage: 0-10V ±0.5 V causes a 10:1 frequency change Impedance: 10K ohm ±5% Mode: LIN/LOG Source: Internal, External Width: 10:1, continuously variable Rate: 10 ms to 1 sec, continuously variable Sweep Output: 0 to 2 V Start/Stop Frequency: By digital setting Source: Internal, External Modulation Ratio: 5% to 100% INT. Modulation: 1 KHz EXT. Modulation: DC to 500 KHz EXT. Sensitivity: Less than 10Vp-p for 100% modulation Source: Internal, External Deviation: 0 to 5% INT. Modulation: 1 KHz EXT. Modulation: DC to 500 KHz EXT. Sensitivity: Less than 10 Vp-p for 100% modulation Mode: Multiple, Single, or Key controlled one shot Source: Internal, External Burst Width: Continuously variable from 5% to 90% of internal gating frequency Repetition Rate: 0.5 Hz to 50 Hz, internal or DC to 500 KHz Burst Frequency: Determined by the main generator frequency setting. Tone burst is in integral cycles of gated frequency. Range: 3.0 Hz to 35 MHz Auto-ranging Resolution: 0.01, 0.1, 1, 10, 100 Hz Max. Display: 6 digits Input Port: Logic Probe or EXT. CNTR BNC Jack Impedance: 1 M OHM / 100 pf Coupling: AC (Ext. counter BNC input)/DC (logic probe input) Max. Overload Protection : ±260 V AC/DC Sensitivity: 0.45 Vrms Accuracy: Time base accuracy ±1 count ±trigger Triggering Threshold: Selectable for TTL, CMOS, logic threshold or 0-3.5 V continuously adjustable triggering level. Range: 0.04 Hz to 3 Hz Resolution: 0.01, 0.001 Hz Max. Display: 4 digits Input Port: Logic Probe only Frequency Range: up to 5.0 KHz Max. Display: 6 digits Reset Key: ?CAL? Input Port: Logic Probe for DC coupling or EXT. CNTR BNC Jack when frequency is greater than 3Hz. Input Range: 0 to ±2.500 V, ±25.00 V DC, ±250.0 V Resolution: 1 mV, 10 mV, 100 mV Accuracy: ±0.75% Input Protection: Max. ±260 V DC/AC Impedance: 1 M OHM Max. Display: 4 digits |
