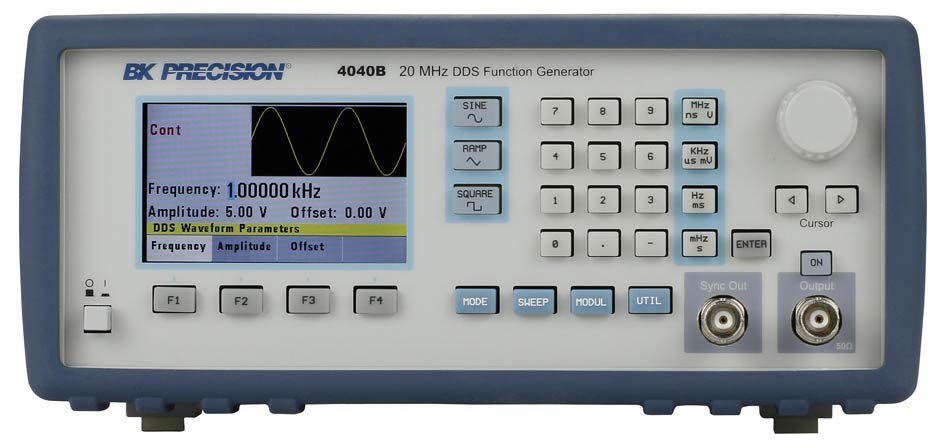

BK Precision 4040B - 20 MHz DDS Function Generator

Name: BK Precision 4040B - 20 MHz DDS Function Generator
Brand: BK Precision
SKU: BK4040B
Price: 506.98 USD
Availability: InStock
Rating: 5.00 (3 reviews)

5 (3 Reviews) | Model: BK Precision 4040B

Images (4) | Videos (3)

Compare

20 MHz DDS Sweep Function Generator

Sine and square frequency range: 0.01 Hz - 20 MHz
Triangle/ramp frequency range: 0.01 Hz - 2 MHz
Bright color display with waveform preview
Linear and logarithmic sweep
AM/FM modulation
Independent output and DC offset amplifiers allow for small amplitude output signals with large DC offsets
Low-jitter square wave generation
Adjustable duty cycle
Output ON/OFF button
Internal/external triggering
Gate and burst mode (4040B only)
Built-in counter
USB interface
SCPI-compliant command set
Short circuit and overvoltage protection on all inputs and outputs

View Product Details

List Price: $595.00

Your Price: $506.98

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	BK Precision 4040B 20 MHz DDS Sweep Function Generator	BK Precision 4014B 12 MHz DDS Sweep Function Generator
Price
In Stock
Channels	1	1
Frequency Maximum	20 MHz	12 MHz
Frequency Minimum	1 uHz (0.000001 Hz)	1 uHz (0.000001 Hz)
Compare	Add to compare	Add to compare

Recommended for you

BK Precision 4040B Accessories

Choose a Category

for the BK Precision 4040B

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(7)

In Stock!

Add to Cart

BK Precision CC-21 BNC Breakout to Alligator Clips

Catalog: CC-21

(5)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Cal Test CT4037 Advanced Function Generator Accessory Kit

Catalog: CT4037

(11)

In Stock!

Add to Cart

BK Precision TLFG Function Generator Test Leads Set

Catalog: TLFG

(1)

In Stock!

Add to Cart

BK Precision 4040B - 20 MHz DDS Function Generator

Sine and square frequency range: 0.01 Hz - 20 MHz
Triangle/ramp frequency range: 0.01 Hz - 2 MHz
Provides linear and logarithmic sweep for users needing sweep capability
Can also be remotely operated via the USB interface and is SCPI compatible

Models 4014B and 4040B are 12 MHz and 20 MHz DDS (direct digital synthesis) function generators that generate stable and precise sine, square, and triangle waveforms. Both models provide variable output voltages from 0 to 10 Vpp into 50 Ω (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, built-in counter, and a continuously variable DC offset that allows the output to be injected directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset (e.g. ± 4.99 V ) with a small amplitude output signal (e.g. 10 mV), a feature typically found in more expensive generators.

The 4014B and 4040B are both designed with a dual technology architecture, combining traditional DDS technology with a low-jitter square wave generator. The instruments generate a 2-point waveform to simulate the amplitude and use a high accuracy PLL (phase-locked loop) circuit for timing. Compared to signals generated by typical low-cost DDS function and arbitrary waveform generators, this implementation significantly minimizes jitter and improves edge stability of square waves. The improved signal integrity allows these generators to be used for simulating reliable clock signals, generating triggers, or validating serial data buses.

These models are suitable for education and other applications that require digital function generators with sweep and modulation capabilities.

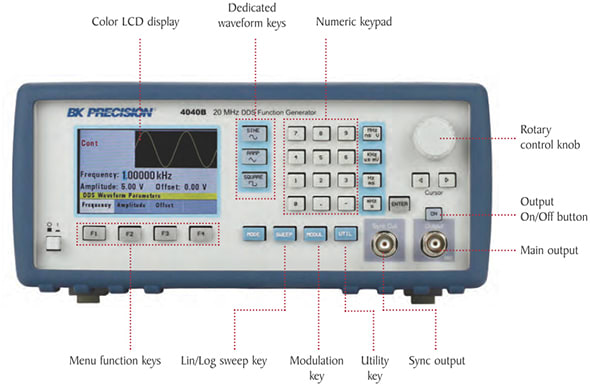

Front panel

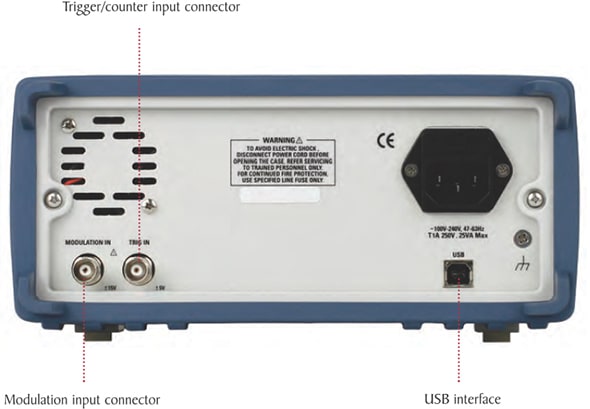

Rear panel

Intuitive user interface

Easily change all waveform parameters using the intuitive menu-driven front panel keypad, rotary control knob, and large color LCD display that shows a preview of the output waveform. Convenient waveform and range selection buttons let users make quick and precise adjustments to the output signal.

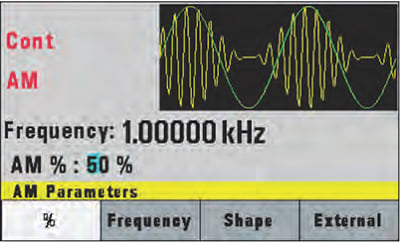

Versatile tools

Both models provide AM and FM modulation along with linear/logarithmic sweep and built-in counter capabilities. Internal and external sources can be used for triggering and modulating the signal.

Easy PC connectivity

The function generators can be programmed remotely via the USB (virtual COM) interface using SCPI commands. B&K Precision also offers application software that provides virtual front panel emulation, allowing users to remotely control their instrument without the need for programming.

Generators / Counters/Function Generator Template
Channels	1
Frequency Maximum	20 MHz
Frequency Minimum	1 uHz (0.000001 Hz)
Functions	Ramp, Sine, Square, Triangle
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	No
Screen Type	LCD
Color Screen	Yes
Digital Amplitude Resolution	3 Bits
Triggering	Yes
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM
Graphical Display	Yes
Direct Digital Synthesis (DDS)	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	USB
Product Weight	5.5 LBS
Product Height	3.46 IN
Product Length	8.27 IN
Product Width	8.39 IN
Shipping Weight	6 LBS
Data Logging	Yes
HTS/Schedule B Number	8543.20.0000
ECCN Number	3A992
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	Taiwan
Shipping Height	6 IN
UPC	817050404029
Shipping Length	12 IN
Shipping Width	12 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 3 reviews

Most Helpful First | Newest First

Recommend to a Friend

BK Precision 4040B

5.0

We use this product for automated testing in mobile test stations. This product is very reliable and gives repeatable readings and we are able to communicate without issue through our automated test software.

Verified Purchase Pete Walker on Jun 15, 2016

Recommend to a Friend

BK4040B

5.0

I purchased the BK 4040B for personal use. I found that it is easy to use. I would highly recommend the item for someone needing a function generator. Very good price for the quality. Customer service was great and I had all my questions answered before I made my purchase.

Verified Purchase Anonymous on Mar 17, 2014

Recommend to a Friend

BK 4040B

5.0

I recently purchased a BK 4040B on tequipment.net for personal use. I found customer service very helpful and got all my questions answered prior to my purchase. The item shipped when promised and exceeded my expectation. I found the BK 4040B TO be very accurate and well worth the price

Verified Purchase Anonymous on Mar 17, 2014
