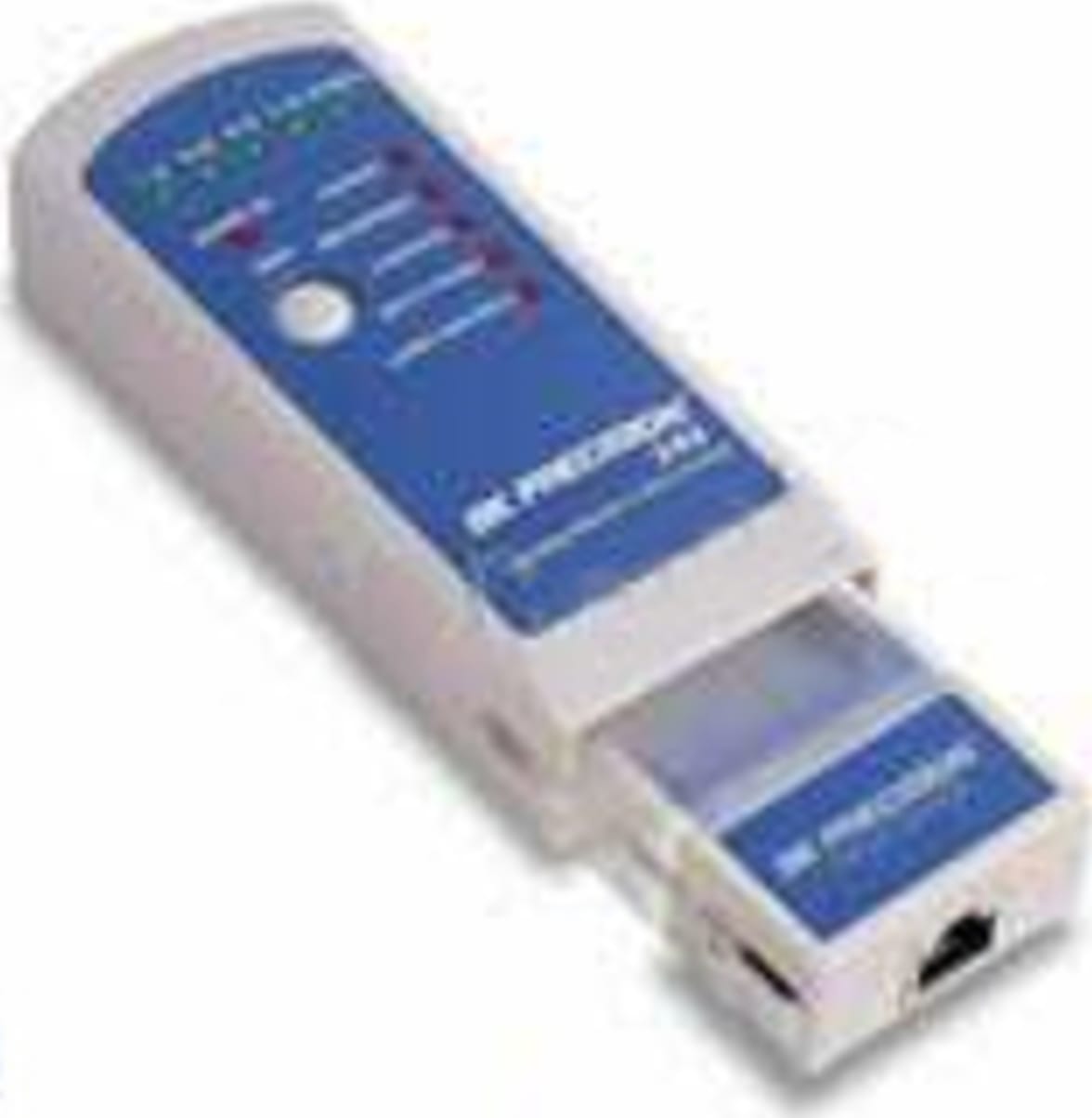

B&K Precision 240 - Remote Network Cable Analyzer

Name: B&K Precision 240 - Remote Network Cable Analyzer
Brand: B&K Precision
SKU: BK240
Availability: InStock

0 reviews | Model: B&K Precision 240

Compare

Remote Network Cable Analyzer

Replaced by: 262
Testing of twisted pair cables for open circuits, shorts, crossed pairs, reversed pairs and split pairs
Minimum length for split pair detection is 1.97ft (0.6m)
Testing of twisted pair cables over 450ft (135m) in length
Tone generator for tracing installed cables and locating faults (use with 240P)
Shield integrity testing
Cross talk detection in excess of 3dB +0.3dB at 3.5MHz between any two pairs
Special designed remote unit that enables one-person testing of installed cables
Small remote unit that slides into master unit for convenient and safe storage
Automatic sleep mode and power switch to decrease power consumption
Low battery LED
Dimensions (HxWxD): 4.93 x 2.05 x 1.18" (125 x 52 x 30mm) Weight: 0.28lbs. (130g)
Accessories Supplied: Master unit, Remote terminator, one patch cable, carrying case.
One Year Warranty

View Product Details

In Stock:

View Payment Options

Recommended for you

The 240 is a small handheld tester that enables the user to quickly read the status of Ethernet twisted pair cables. The 240's tone generator feature can be used to trace installed cables and locate areas of discontinuity. The 240 includes one master unit and one remote and can be operated easily by one person testing patch cords or installed cables.
