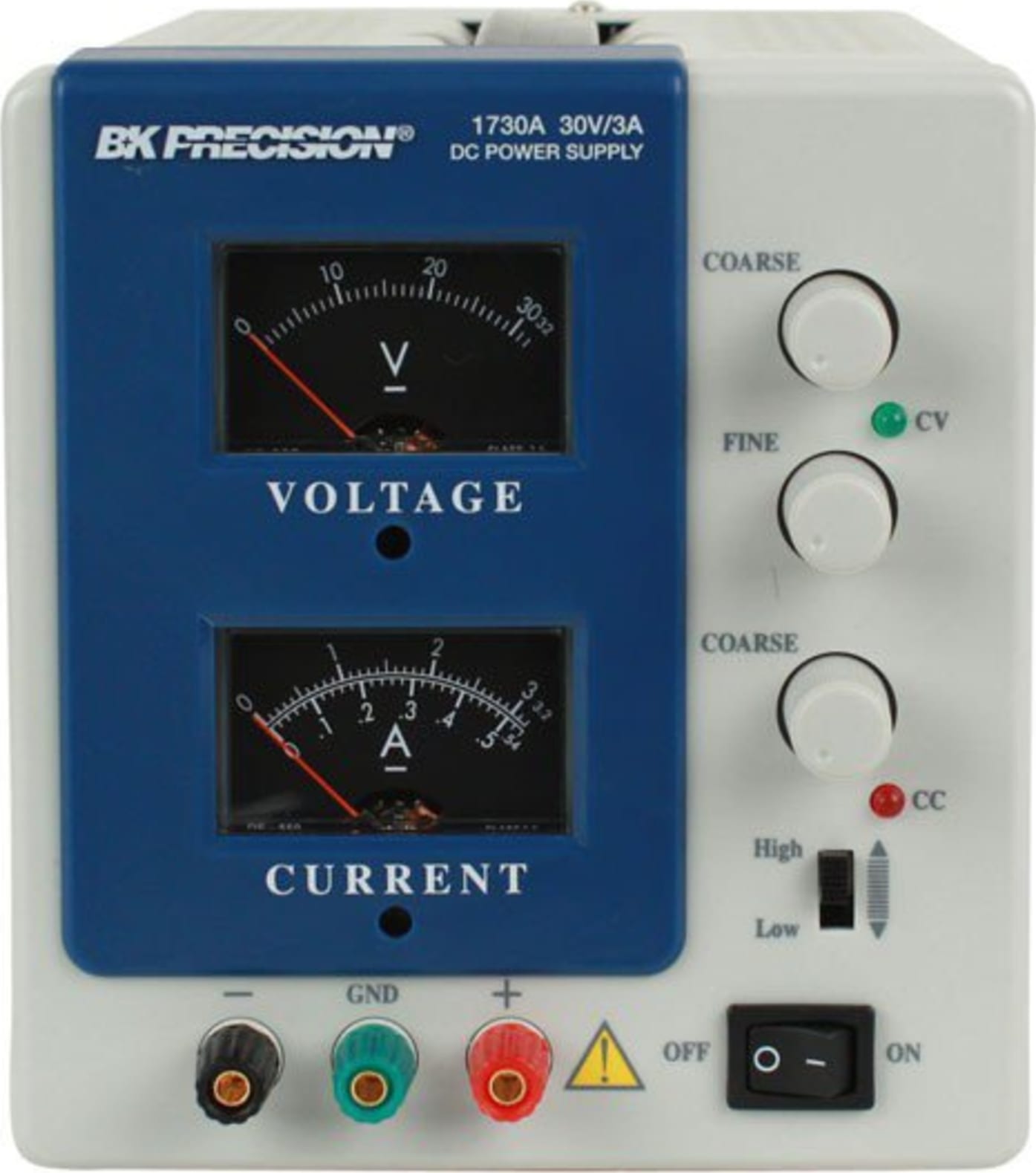

B&K Precision 1730 - Analog DC Power Supply, Single Output

Name: B&K Precision 1730 - Analog DC Power Supply, Single Output
Brand: B&K Precision
SKU: BK1730
Availability: InStock

0 reviews | Model: B&K Precision 1730

Compare

Analog DC Power Supply, Single Output

View Product Details

In Stock:

Recommended for you

Choose a Category

(24)

In Stock!

Add to Cart

Output Voltage	0-30V
Output Current	0-3A
Constant Voltage Operation
Voltage Regulation Line (120VAC +- 10%)	<=0.01% + 3 mV
Load (no load - full load)	<=0.01% + 3 mV
Recovery TIme	<=100 us
Ripple & Noise	<=1mV rms
Temperature Coefficient	<=300 ppm/0C
Constant Current Operation
Adjustable Current Range	5% to 100%
Current Regulation Line (120VAC +- 10%)	<=0.2% + 3 mA
Load	<=0.2% + 3 mA
Current Ripple	<=3mA rms
Metering
Type	Analog
Voltmeter Range	0-32V
Voltmeter Accuracy	+-2.5%
Ammeter High Range	0-3.2A
Ammeter Low Range	0-0.53A
Ammeter Accuracy	+-2.5%
Overload Protection	Current limiting, reverse polarity, overvoltage, short circuit
Power Requirements	120 VAC +- 10%, 60 Hz only (120/220/230/240 VAC +- 10%, 50/60 Hz version available)
Power Consumption	180W
Operating Temperature	320 to 104 0 F (0 0 to 40 0 C). <=75% R.H
Storage Temperature	5 0 to 158 0 F (-15 0 to 70 0 C). <=85% R.H
Dimensions (HxWxD)	6.2x5.5x12.5'' (158x140x318 mm)
Weight	10.5 lb. (4.7 kg)
Two Year Warranty
Accessories
Optional	Hook-up leads - up to 5 amps Model TL-5A, up to 30 amps Model TL-30
