• Voltage (variable outputs): 0-32 V
• Current (variable outputs): 0-6 A
• Independent control knobs for voltage and current settings of variable outputs
• LED indication for CV and CC modes

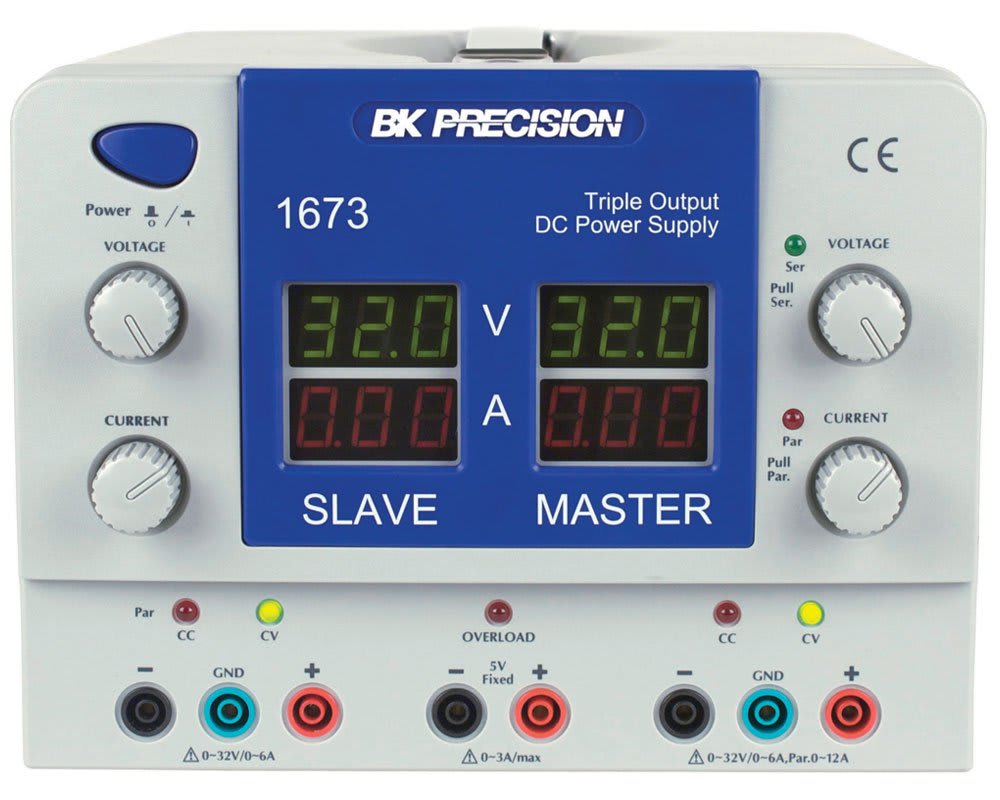

BK Precision’s 1672 and 1673 are quad display triple output DC power supplies that provide two variable outputs and one fixed output. The variable outputs can work independently, in series tracking, or parallel mode. Conveniently adjust voltage and current with independent front panel knobs and bright quad LED display.

Accessible through a simple push/pull switch, the 1672 and 1673’s unique series and parallel tracking features let you easily double the output voltage or current. For achieving even higher voltages or current, multiple units can be connected in series or parallel.

The 1672 and 1673 are both designed to operate in a constant voltage or a constant current mode with automatic crossover, allowing continuous transition from constant current to constant voltage modes in response to load condition changes.

These power supplies are ideally suited for applications in electronic test, production, and service, where multiple independent DC power supplies are required.

Intuitive Operation

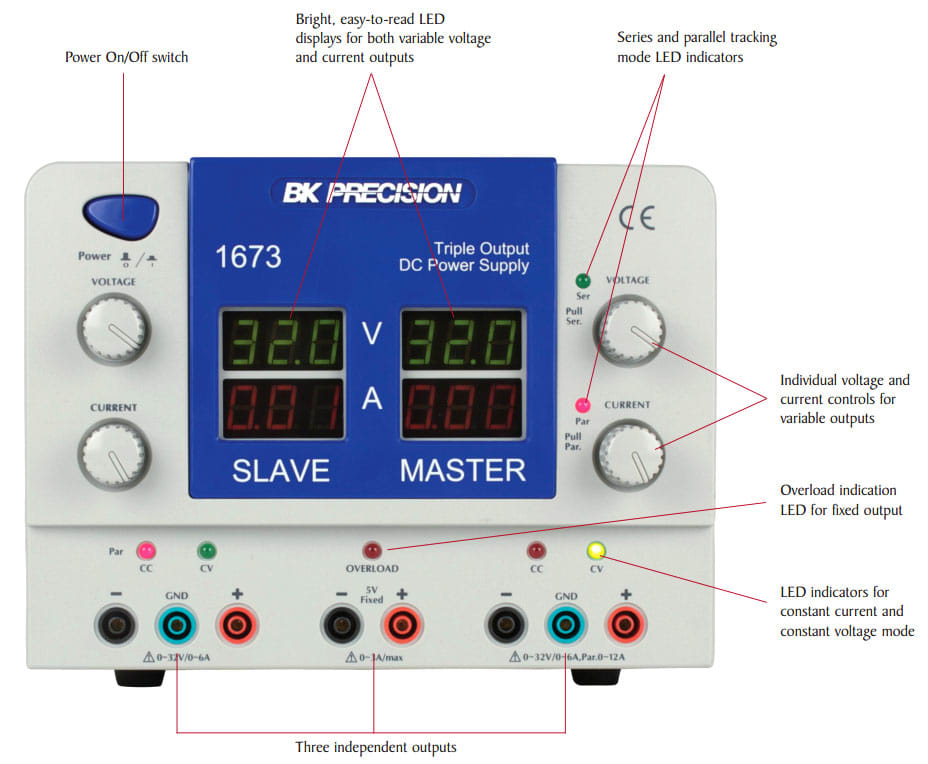

Easy-to-use voltage and current adjustment knobs with simple push/pull switch mechanism for series and parallel tracking modes. CC and CV mode LEDs clearly indicate constant current or constant voltage mode.

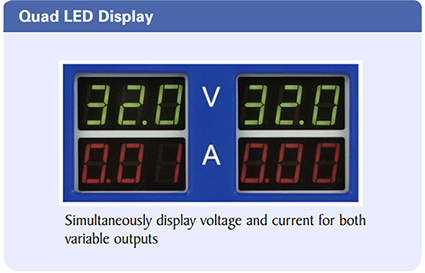

Quad Display

The 1672 and 1673’s bright, quad 3-digit LED displays provide excellent readability at a distance and allows you to view voltage and current output values for variable outputs independently.

Safety in Mind

Both models use sheathed safety banana input jacks that accept sheathed or shrouded banana plugs and meet the latest international safety standards.
