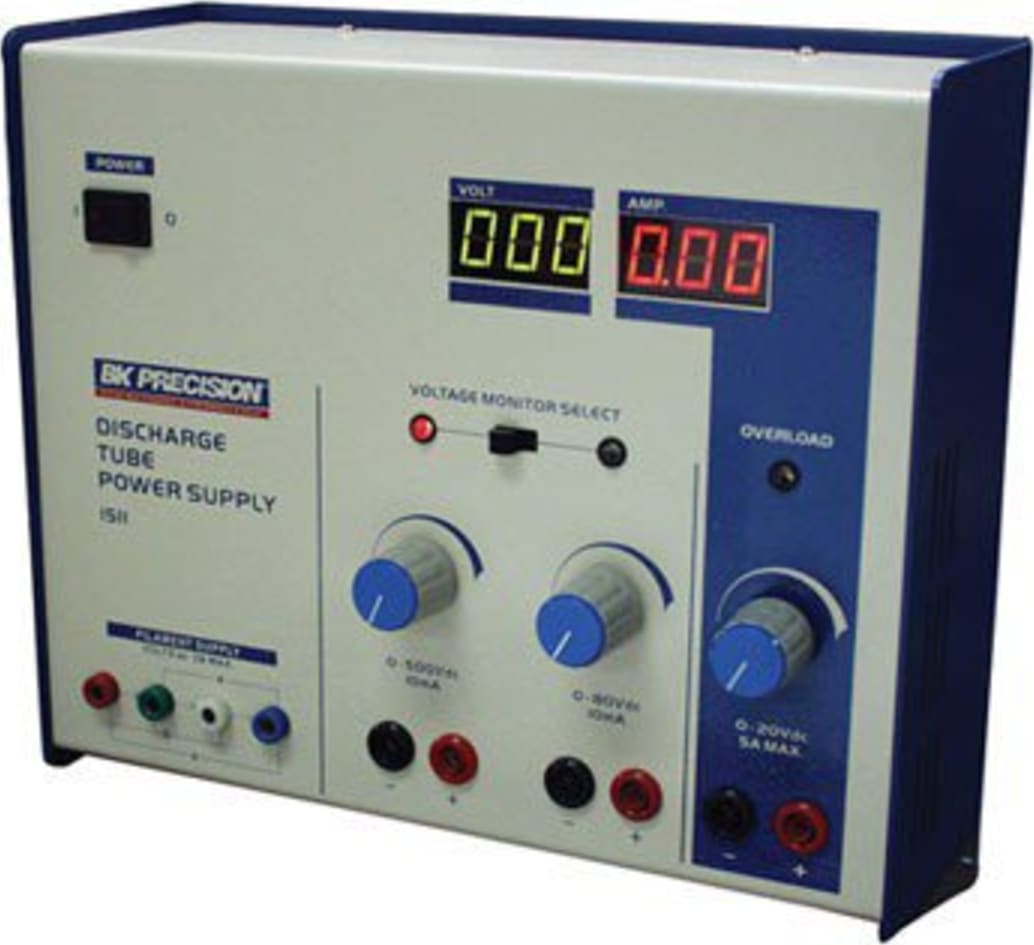

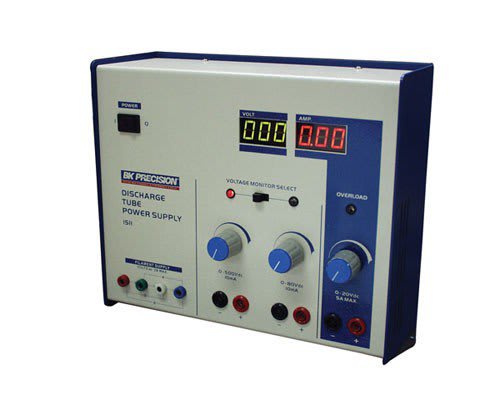

B&K Precision 1511 - Digital Discharge Tube Power Supply

Name: B&K Precision 1511 - Digital Discharge Tube Power Supply
Brand: B&K Precision
SKU: BK1511
Price: 640.29 USD
Availability: InStock

0 reviews | UPC: 817050151107 | Model: B&K Precision 1511

Compare

Digital Discharge Tube Power Supply

New digital LED meters, improving the resolution of the readings to 1%
Four separate power supplies, all insulated from each other and grounded: high voltage, bias voltage, filament supply, and Helmholtz coil supply
AC/DC, high voltage, and high current for versatility
Voltmeter selectable between 80V and 500V supplies
Electronic overload protection
Banana jack connectors

View Product Details

List Price: $830.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Power Supply Kits

for the B&K Precision 1511

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

BK 1511 Specifications
INPUT VOLTAGE	115VAC, 60Hz
ENVIRONMENTAL TEMPERATURE	25°C
0-20VDC
Output Voltage Range	Min. 1V 20V
Minimum Output Voltage Range	Min. 0.8V, typical / Max. 1V
Maximum Output Voltage	Min. 20.5V / Max. 22.5V
Output Current	Min. 5A
Protection Current (start point)	Min. 5A / Max. 8A
Load Voltage Regulation (0-100% load)	Max. 2.5V
Line Voltage Regulation (100-130VAC Variation)	Max. 2.5V
Ripple & Noise	Max. 50mVrms
0-80VDC
Max. Output Voltage No Load	Min. 90V / Max. 120V
Max. Output Voltage Full Load	Min. 80V / Max. 100V
Output Current	Min. 10mA, typical
0-500VDC
Max. Output Voltage No Load	Min. 600V / Max. 800V
Max. Output Voltage Full Load	Min. 500V
Output Current	Min. 10mA, typical
AC Output Voltage 1	Min. 1V / Max. 1.4V
AC Output Voltage 2	Min. 2.1V / Max. 2.5V
AC Output Voltage 3	Min. 3.2V / Max. 3.6V
AC Output Voltage 4	Min. 4.2V / Max. 5V
AC Output Voltage 5	Min. 5.3V / Max. 6.1V
AC Output Voltage 6	Min. 6.3V / Max. 7.5V
No Load Input Current	160mA
Full load Input Current	1.5A
Meter Accuracy
Voltmeter	± 1%+1 digit
Ammeter	± 1%+1 digit
Fuse	3Amps
Dimensions	(W X D X H): 258 mm x 216 mm x 108 mm
Weight	5.80 kgs
