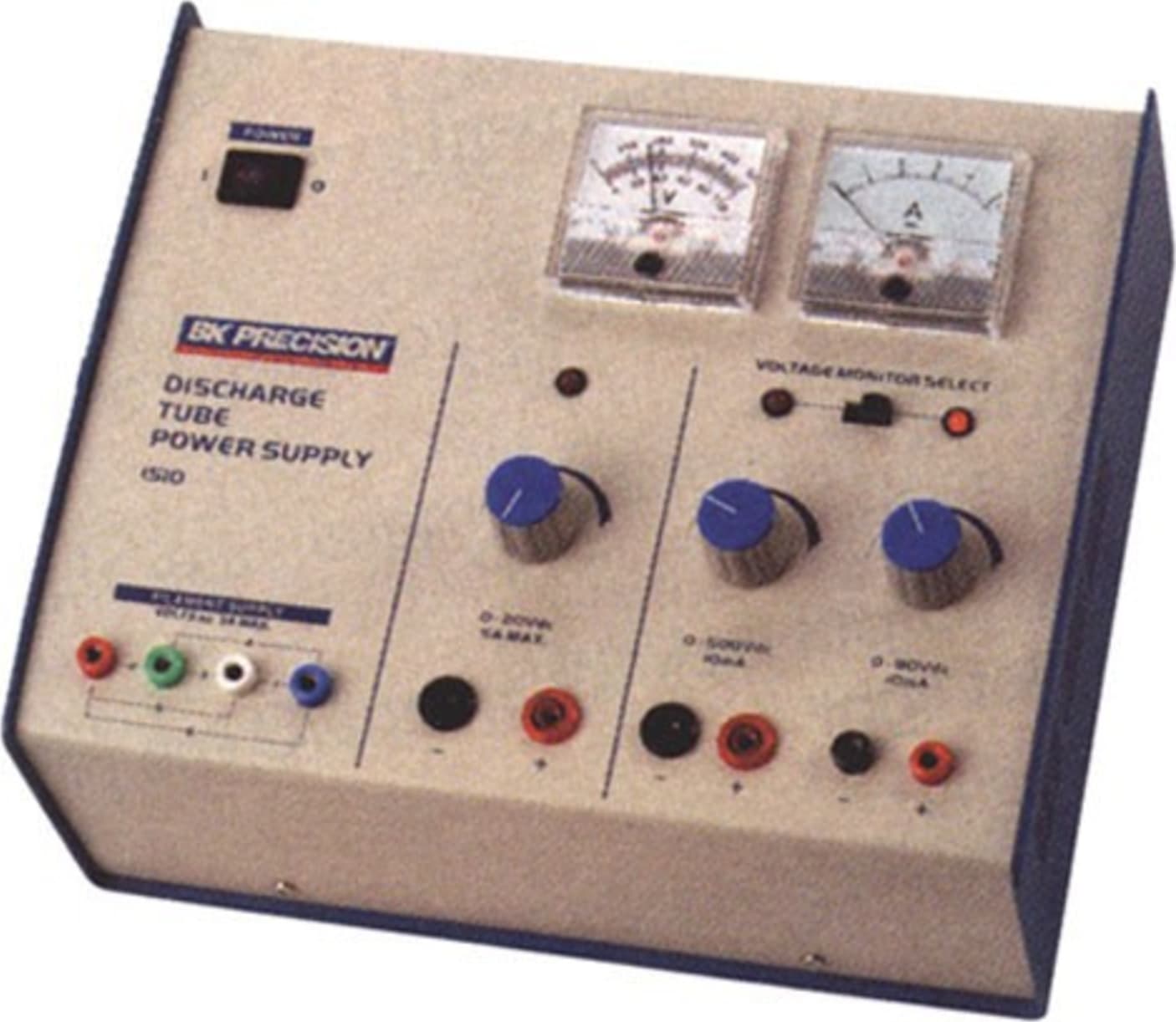

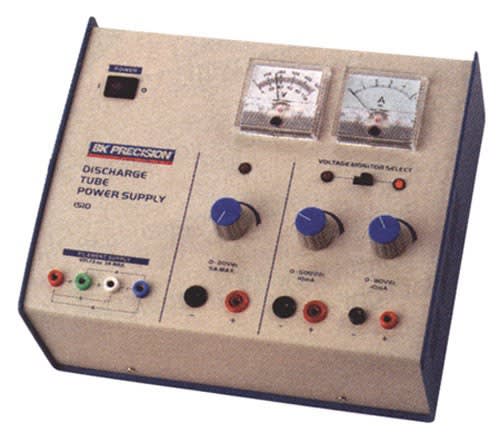

B&K Precision 1510 - Discharge Tube Power Supply

Name: B&K Precision 1510 - Discharge Tube Power Supply
Brand: B&K Precision
SKU: BK1510
Price: 469.20 USD
Availability: InStock

0 reviews | UPC: 817050151008 | Model: B&K Precision 1510

Compare

Discharge Tube Power Supply

View Product Details

List Price: $595.00

In Stock:

Recommended for you

Choose a Category

(24)

In Stock!

Add to Cart

Input Voltage	115VAC 60Hz
Environment Temperature	25°C
0-20VDC
Output Voltage Range	Min. 1 V / Max. 20 V
Min. output Voltage	Typ. 0.8 V / Max. 1 V
Max output Voltage	Min. 20.5 V / Max. 22.5 V
Output Current	Typ. 5 A
Protection Current (start point)	Min. 5 A / Max. 8 A
Load Voltage Regulation (0-100%)	Max. 2.5 V
Line Voltage Regulation (100-130VAC Variation)	Max. 2.5 V
Ripple & Noise	Max. 50 mVrms
0-80VDC
Max. Output Voltage No Load	Min. 90 V / Max. 120 V
Max. Output Voltage Full Load	Min. 80 V / Max. 100 V
Output Current	Typ. 10 mA
0-500VDC
Max. Output Voltage No Load	Min. 600 V / Max. 800 V
Max. Output Voltage Full Load	Min. 500 V
Output Current	Typ. 10 mA
AC Output Voltage 1	Min. 1.0 V / Max. 1.4 V
AC Output Voltage 2	Min. 2.1 V / Max. 2.5 V
AC Output Voltage 3	Min. 3.2 V / Max. 3.6 V
AC Output Voltage 4	Min. 4.2 V / Max. 5.0 V
AC Output Voltage 5	Min. 5.3 V / Max. 6.1 V
AC Output Voltage 6	Min. 6.3 V / Max. 7.5 V
No Load Input Current	200 mA
Full Load Input Current	1.8 A
Meter Accuracy
Voltmeter	Max. ±2.5% Fs%
Ammeter	Max. ±2.5% Fs%
Fuse	Typ. 3 A
Dimensions (W X D X H)	10.2 x 8.50 x4.25”
Weight	12.8 LBS
