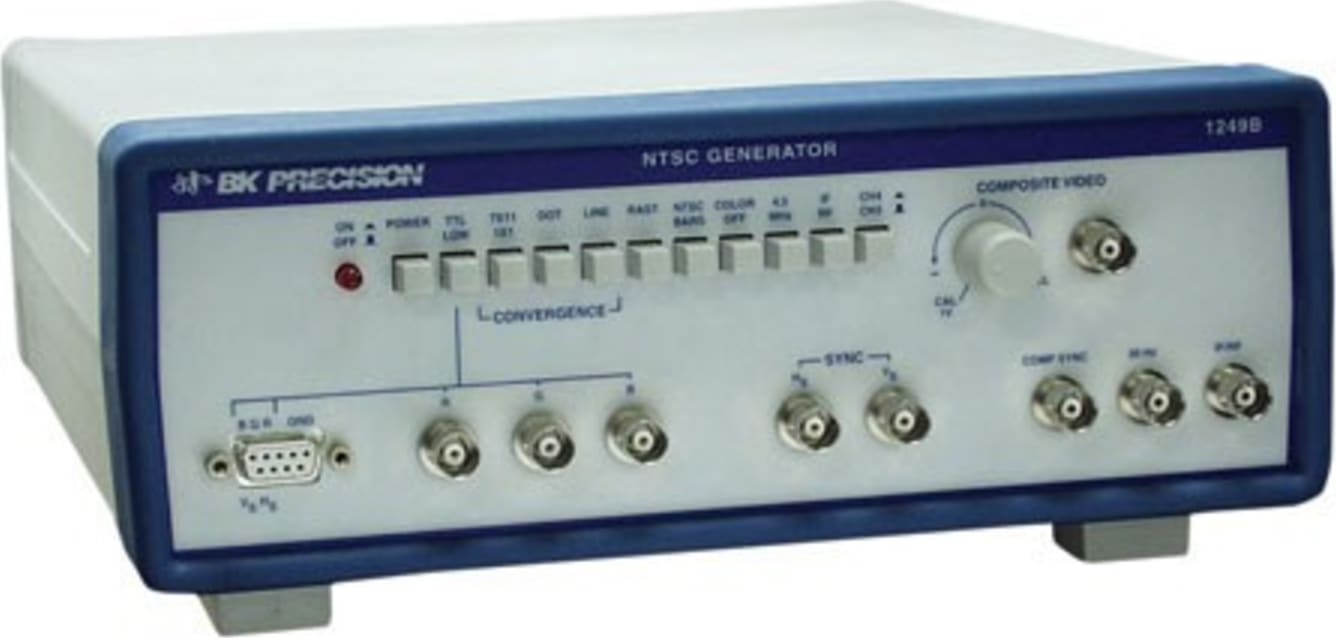

| Color Bars |
White (75% or 100% switch selectable) Yellow, Cyan, Green, Magenta, Red, Blue, Black (7.5% set-up) |
| Staircase |
COLOR OFF obtains staircase from color bars |
| Convergence |
Center dot
7 x 11 dots
7 x 11 crosshatch
Center Cross |
| RF Output |
Channels: CH 3, CH 4, 1F. 61.25, 67.25, 45.75 MHz ± 0.008MHz |
| Level |
10 mV rms minimum into 75 |
| Composite Video |
1V p-p into 75
Negative or positive polarity sync available |
| Amplitude |
Variable 0 to ±1.2V p-p into 75
Calibrated 1V p-p position with negative sync |
| Patterns |
BNC and D-Type Sub-Miniature Connectors, convergence and color bars |
| Level |
TTL level and low level, (0.8 ± 0.2V), switch selectable |
| Sound |
4.5 MHz ± 0.2% modulated by approximately 1 kHz audio tone, switch selectable |
| Composite |
NTSC-M TTL level; interlace for NTSC color bars and switch selectable interlace or progressive for convergence patterns (negative polarity sync) |
| Horizontal |
TTL level (Positive polarity sync.) |
| Vertical |
TTL level (Positive polarity sync.) |
| Color Subcarrier |
NTSC signal: 3.579545 MHz (+50 Hz) |
| Operating Temperature |
32° to 122°F (0° to +50°C) |
| Dimensions |
3.39" x 10.39" x 11.42" (86 x 264 x 290 mm) |
