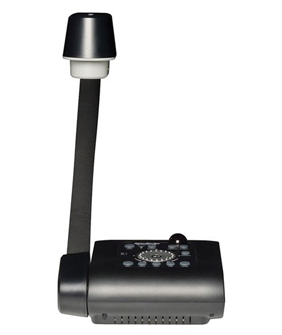

| Model: VISIF508M Specifications |
| Image |
| Sensor |
1/3.2” CMOS |
| Effective Pixel |
3840 H x 2160 V |
| White Balance |
Auto / Manual |
| Image Mode |
Sharp / Graphics / Motion / Microscope |
| RGB Output |
1920x1080, 1280x1024, 1280x720, 1024x768, 1280x800 |
| Composite Output |
720x480 (NTSC) |
| Pixel Count |
8 megapixels |
| Frame Rate |
60 fps (max) |
| Exposure |
Auto / Manual |
| Effect |
Color / B/W / Negative / Mirror / Rotate / Freeze |
| HDMI Output |
HD 1080p 50Hz/60Hz; HD 720p 50Hz/60Hz; 1024x768 60Hz; |
| Optics |
| Focus |
Auto / Manual |
| Shooting Area |
Max. 17.2” x 9.29” (437mm x 246mm) |
| Zooming |
200X Total Zoom (10X Optical + 20X Digital) |
| Function |
| Image EFfect |
Color / B&W / Negative / Mirror / Reverse / Freeze |
| Picture-in-picture |
Yes |
| Presentation Tools |
Spotlight (Yes), Visor (Yes) |
| Remote Control |
Yes |
| Onboard AV Recording |
Yes |
| White balance / exposure / night view |
Auto / Manual |
| Split Screen |
Yes |
| Capture Mode |
Single / Continuous |
| Image Storage |
240 Frames (XGA); 80 Frames (8M Pixel) |
| Onboard Annotation |
Yes |
| Compatibility |
| Operating Systems |
Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.9 or above (Intel based), Chrome OS 29 or above |
| Interative Whiteboard Compatibility |
Yes with AVerVision Flash Plug-in *certain limitations apply |
| AVer Software |
AVer A+ Software Suite (Sphere 2, PowerPoint Plug-in, Flash-Plug-in), Sphere Lite (for Chromebook |
| Power |
| Power Source |
DC 12V, 2A, 100-240V, 50-60Hz |
| Consumption |
12.8 Watts (lamp on), 12 Watts (lamp off) |
| Lighting |
| Lamp Type |
LED light |
| Input / Output Connections |
| RGB Input |
15-Pins D-sub (VGA) |
| HDMI Input |
Yes |
| Composite Video |
RCA Jack (through optional CVBS Adapter) |
| SD |
SD / SDHC (Up to 32GB) |
| MIC Input |
3.5mm jack, pink |
| RGB Output |
15-Pins D-sub (VGA) |
| HDMI Output |
Yes |
| USB |
Mini-USB 2.0 (Connect to PC) |
| DC 12V Input |
Power Jack |
| Dimension |
| Operating |
20.67” x 7.87” x 15.16” 525mm x 200mm x 385mm (+/- 2mm include rubber foot) |
| Weight |
6.17 lbs (2.8kg) |
| Folded |
12.6” x 9.84” x 2.52” 320mm x 250mm x 64mm (+/- 2mm include rubber foot) |
| External Storage |
| Secure Digital (SDHC) |
1GB ~ 32GB (FAT32) |
