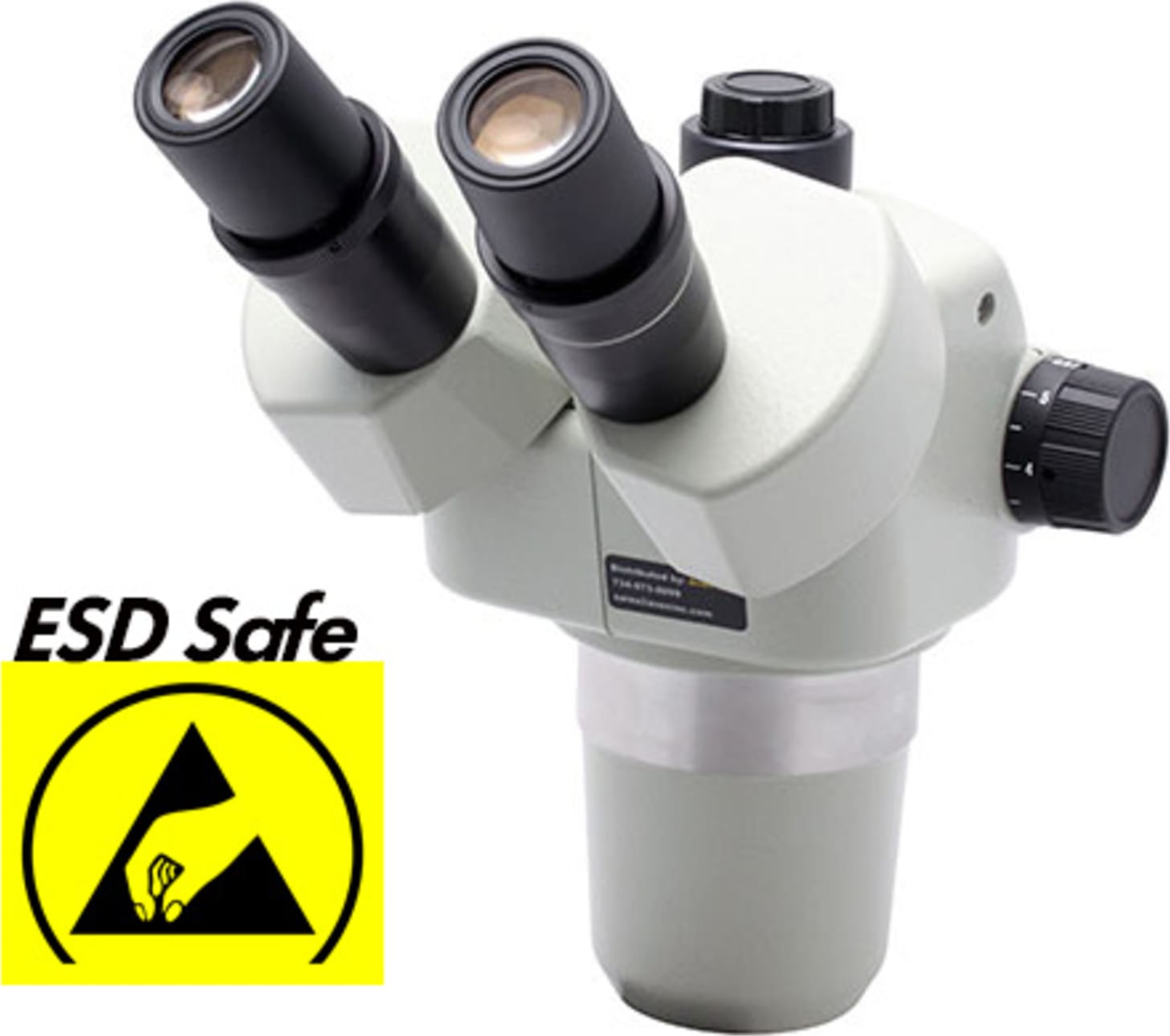

Aven Tools SPZV-50E Trinocular Microscope ESD Safe Stereo Zoom

Name: Aven Tools SPZV-50E Trinocular Microscope ESD Safe Stereo Zoom
Brand: Aven Tools
SKU: Aven ToolsSPZV-50E
Price: 1851.30 USD
Availability: InStock

0 reviews | UPC: 766955374794 | Model: Aven Tools SPZV-50E

Compare

Microscope Body SZ, Trincoular 6.7x to 50x ESD Safe

Specialized ESD Safe coating protects sensitive components from electrostatic discharges+
Large zoom ratio 7.46:1- best zoom ratio in class
Field of View 34.3mm to 3.6mm (1.35"; to 0.14";)
Working distance 108mm (4.25";) -the best in class
17mm (0.67";) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
Diopter adjustment on both eyepiece tubes

View Product Details

List Price: $2,057.00

Your Price: $1,851.30

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Aven Tools SPZV-50E Microscope Body SZ, Trincoular 6.7x to 50x ESD Safe	Aven Tools 26800B-376-1 SPZV-50E Stereo Trinocular Microscope ESD Safe with Stand PLED wit ...	Aven Tools 26800B-376-ESD SPZV-50E Stereo Trinocular Microscope ESD Safe with Stand PLED w ...	Aven Tools SPZV-50E-258-514-ESD Stereo Zoom Trinocular Microscope SPZV-50E [6.7x - 50x] wi ...	Aven Tools SPZV-50E-514-260 SPZV-50E Trinocular Microscope with Mighty Cam Eidos 5M Integr ...
Price
In Stock
Type (Microscopes)	Stereo	Stereo	Stereo	Stereo	Stereo
Body Style	Trinocular	Trinocular	Trinocular	Trinocular	Trinocular
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Aven Tools SPZV-50E

Specialized ESD Safe coating protects sensitive components from electrostatic discharges
Large zoom ratio 7.46:1- best zoom ratio in class
Field of View 34.3mm to 3.6mm (1.35"; to 0.14";)
Working distance 108mm (4.25";) -the best in class
17mm (0.67";) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses

Microscope Body SZ, Trincoular 6.7x to 50x ESD Safe

rotect your sensitive components from electrostatic discharges with Aven's ESD Safe SPZV-50E Trinocular Microscope. Provides crisp clear 3D images, long working distance and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. View magnified images through the microscope eyepieces or on a monitor. If you need help customizing a system contact us at 734-973-0099 or [email protected]

Model: SPZV-50E Specifications
Desciptions	ESD Safe SPZ-50E Stereo Zoom Microscope
Body Type	Binocular, 360° rotatable, 45° inclined eyepiece tube
Eyepieces	Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Auxiliary lens	0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope
Working Distance	108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens
Zoom Ratio	7.46:1
Diopter Adjustment	On both eye tubes: +5.6D-.72D
Interpupillary Distance	Adjustable from 52 to 75mm
Optical System	Greenough
Package Contents	1 ea. SPZ Binocular Stereo Zoom Microscope Body 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual
Weight	5 lbs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Stereo
Body Style	Trinocular
Diopter Adjustment	Yes
Eyepiece Magnification	10
Eyepiece Inclination	Yes
Eyepiece Inclination Degress	45 Degrees
Interpupillary Distance Max	75 MM
Interpupillary Distance Min	52 MM
Magnification max	50 x
Magnification min	6.7 x
Zoom Ratio	7.46:1
Working Distance	108 MM
Rotating Head	Yes
ESD Safe	Yes
Test Equipment General Attributes
Product Weight	5 LBS
Product Height	9.00 IN
Product Length	12.00 IN
Product Width	8.00 IN
Shipping Weight	10 LBS
HTS/Schedule B Number	9011.90.0000
Country of Origin	Japan
Shipping Height	9.00 IN
Shipping Length	12.00 IN
Shipping Width	8.00 IN
