Aven Tools SPZT-50 Stereo Microscopes - Magnification min: 6.7, Magnification max: 50, Number of Objectives: 0

Name: Aven Tools SPZT-50 Stereo Microscopes - Magnification min: 6.7, Magnification max: 50, Number of Objectives: 0
Brand: Aven Tools
SKU: Aven ToolsSPZT-50
Price: 1170.56 USD
Availability: InStock

0 reviews | UPC: 766955372202 | Model: Aven Tools SPZT-50

Compare

Microscope Body SZ, Trinocular, 6.7x -50x

Outstandingly large zoom ratio 7.46 : Best zoom ration in this class
Magnification range: 6.7x to 50x
Field of View 34.3 mm to 3.6 mm (1.35" to 0.14")
Working distance 108 mm (4.25") - the best in this class
Magnification range of 2.25x to 200x with optional lenses
17 mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses.
Trinocular version has diopter adjustment on vertical tube for fine focusing of image

View Product Details

List Price: $1,276.85

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Stands

for the Aven Tools SPZT-50

Aven Tools 26800B-520 Single Arm Boom Stand w/Heavy Metal Base and Tiltable Arbor

Catalog: 26800B-520

(0)

In Stock!

Add to Cart

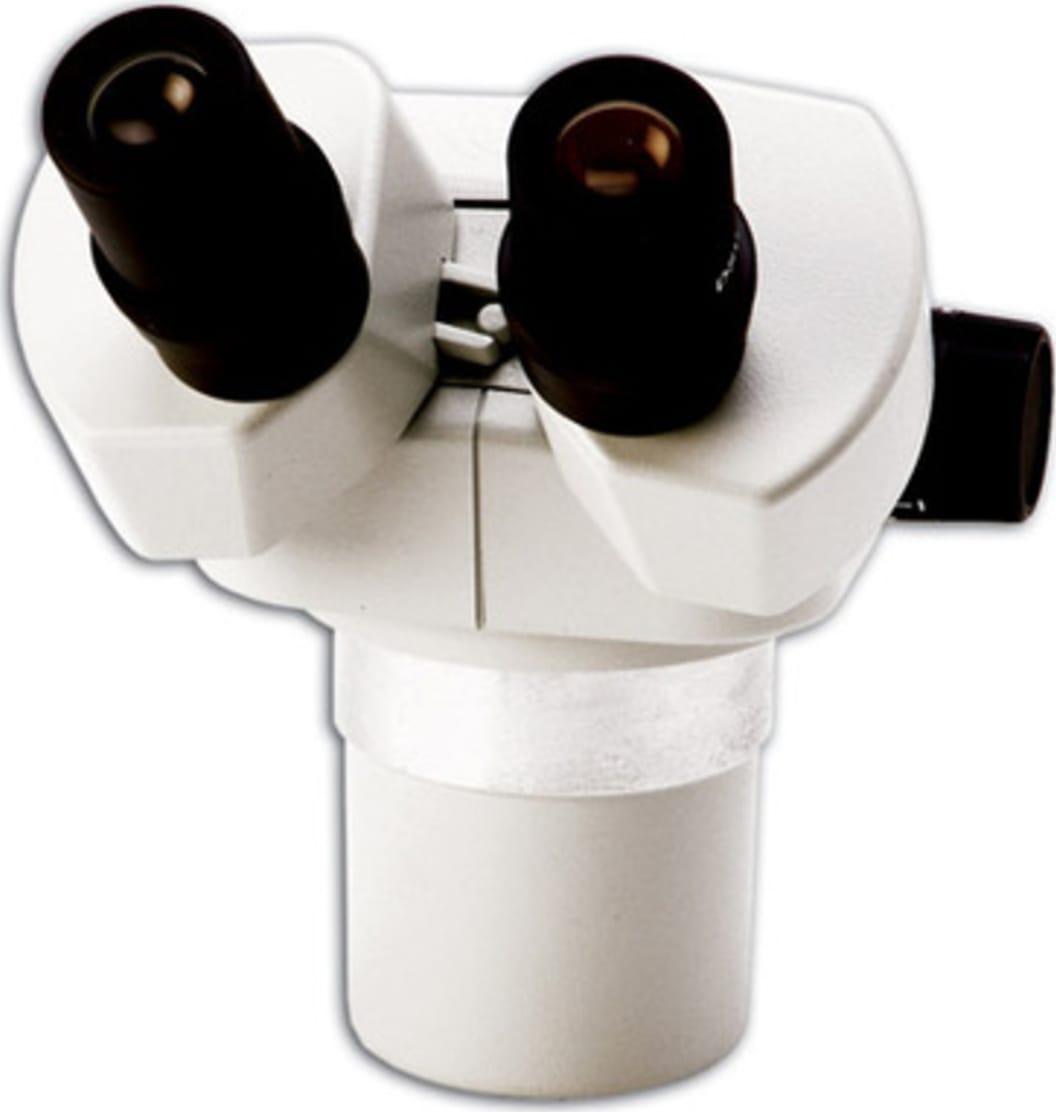

The Aven Tools SPZT-50 Trinocular stereo zoom body with 10x eyepieces. The SPZT-50 Series body can be mounted on a variety of boomstands. You choose the rack & pinion focus mount, illumination, and accessories to meet your specific requirements. Various eyepieces & auxiliary lenses can be used for desired magnification and working distance.

Note:

0.5x Auxiliary Lens cannot be used on this SPZ series body with stand P, PF, T and TL

To Configure Your System Select

The microscope body that meets your magnification, field of view and working distance requirements. Note with a combination of eyepieces and auxiliary lens you can tailor a system to meet your requirements.
Focusing Mount.
Stand (please take into account the working distance and the height of the stand).
Illumination - Fiber Optic, Fluorescent or LED.
Camera and or adapter if you are using a trinocular body.
Monitor if necessary.

Model: SPZT-50 Specifications
Body	Trinocular
Screen Magnification	6.7x to 50x
Working Distance	108 mm
Zoom Ratio	7.46:1
Weight	2 lb

DHW10X (F.N. 23)
Magnification (DHW15x)	6.7x to 50x
Working Dist. (DHW15x)	34.3 to 3.5mm
Field of View (DHW15x)	W/O Auxiliary Lens: 108 mm Auxiliary Lens 0.5x : 240 mm Auxiliary Lens 0.75x : 132 mm Auxiliary Lens 1.6x : 50 mm Auxiliary Lens 0.2x : 41 mm

DHW15X (F.N. 15)
Magnification (DHW15x)	W/O Auxiliary Lens: 10.05x to 75x Auxiliary Lens 0.5x : 5.02x to 37.5x Auxiliary Lens 0.75x : 7.53x to 56.25x Auxiliary Lens 1.6x : 16.08x to 120x Auxiliary Lens 0.2x : 20.1x to 150x
Working Dist. (DHW15x)	W/O Auxiliary Lens: 108 mm Auxiliary Lens 0.5x : 240 mm Auxiliary Lens 0.75x : 132 mm Auxiliary Lens 1.6x : 50 mm Auxiliary Lens 2x : 41 mm
Field of View (DHW15x)	W/O Auxiliary Lens: 22.3 to 3 mm Auxiliary Lens 0.5x : 44.7 to 6 mm Auxiliary Lens 0.75x : 29.8 to 4 mm Auxiliary Lens 1.6x : 16 to 1.8 mm Auxiliary Lens 2x :11.1 to 1.5 mm

DHW10X (F.N. 23)
Magnification (DHW15x)	6.7x to 50x
Working Dist. (DHW15x)	34.3 to 3.5mm
Field of View (DHW15x)	W/O Auxiliary Lens: 108 mm Auxiliary Lens 0.5x : 240 mm Auxiliary Lens 0.75x : 132 mm Auxiliary Lens 1.6x : 50 mm Auxiliary Lens 0.2x : 41 mm

DHW20X (F.N. 11.4)
Magnification (DHW15x)	W/O Auxiliary Lens Nil : 13.4x to 100x Auxiliary Lens 0.5x : 6.7x to 50x Auxiliary Lens 0.75x : 10.05x to 75x Auxiliary Lens1.6x : 21.44x to 160x Auxiliary Lens 2x : 26.8x to 200x
Working Dist. (DHW15x)	W/O Auxiliary Lens Nil : 108 mm Auxiliary Lens 0.5x : 240 mm Auxiliary Lens 0.75x : 132 mm Auxiliary Lens 1.6x : 50 mm Auxiliary Lens 2x : 41 mm
Field of View (DHW15x)	W/O Auxiliary Lens: 17 to 2.2 mm Auxiliary Lens 0.5x : 34 to 4.5 mm Auxiliary Lens 0.75x : 22.6 to 3 mm Auxiliary Lens 1.6x : 10.6 to 1.4 mm Auxiliary Lens 0.2x : 8.5 to 1.1 mm
