• Digital microscope system provides a large magnification range of 18.9x - 502.8x
• Interchangeable lenses included allow users to easily expand the magnification range
• Long working distance with 0.5x auxiliary lens (175mm)
• Zoom Magnification: zoom from highest to low settings without losing focus
• Advanced imaging software included

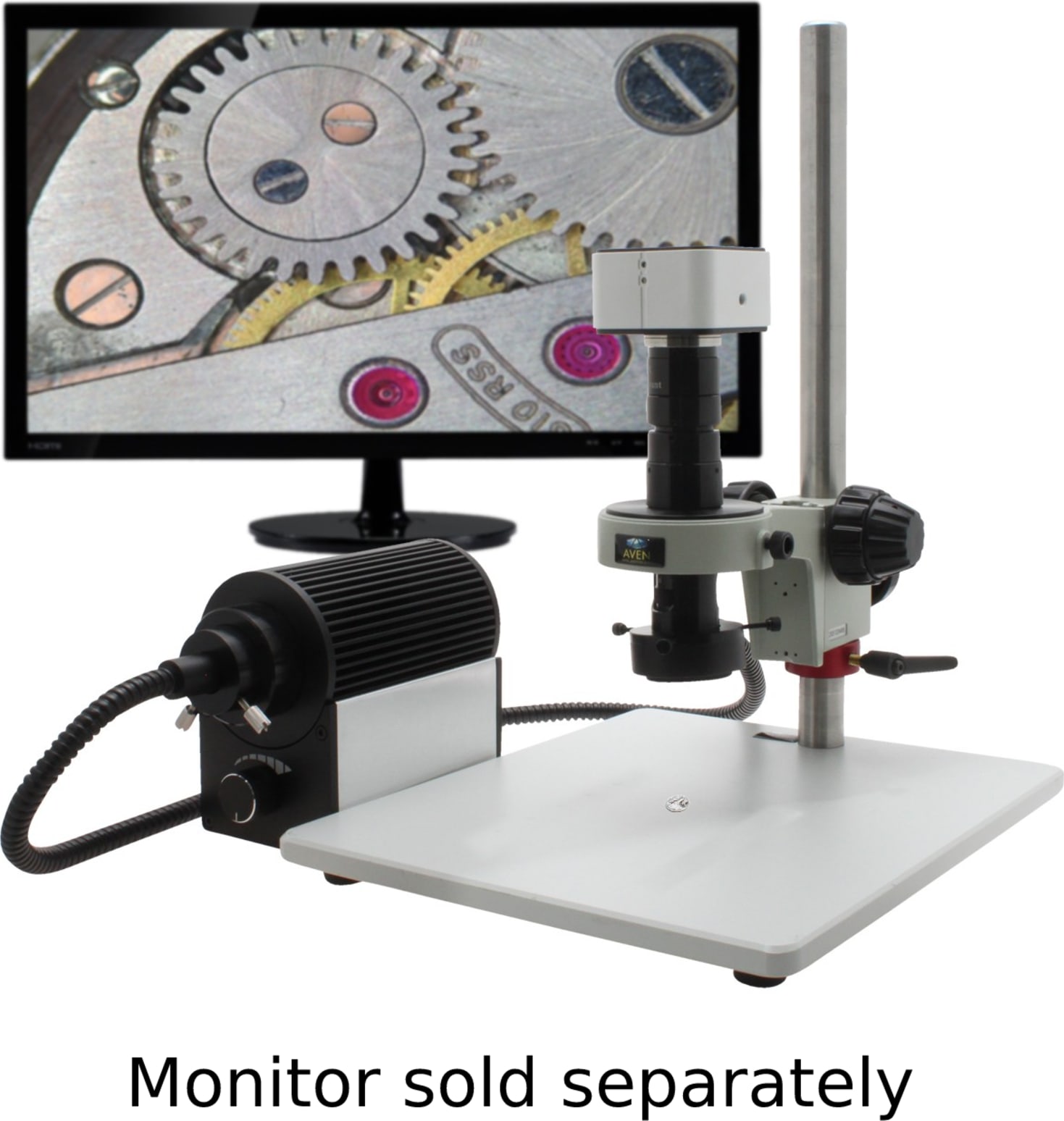

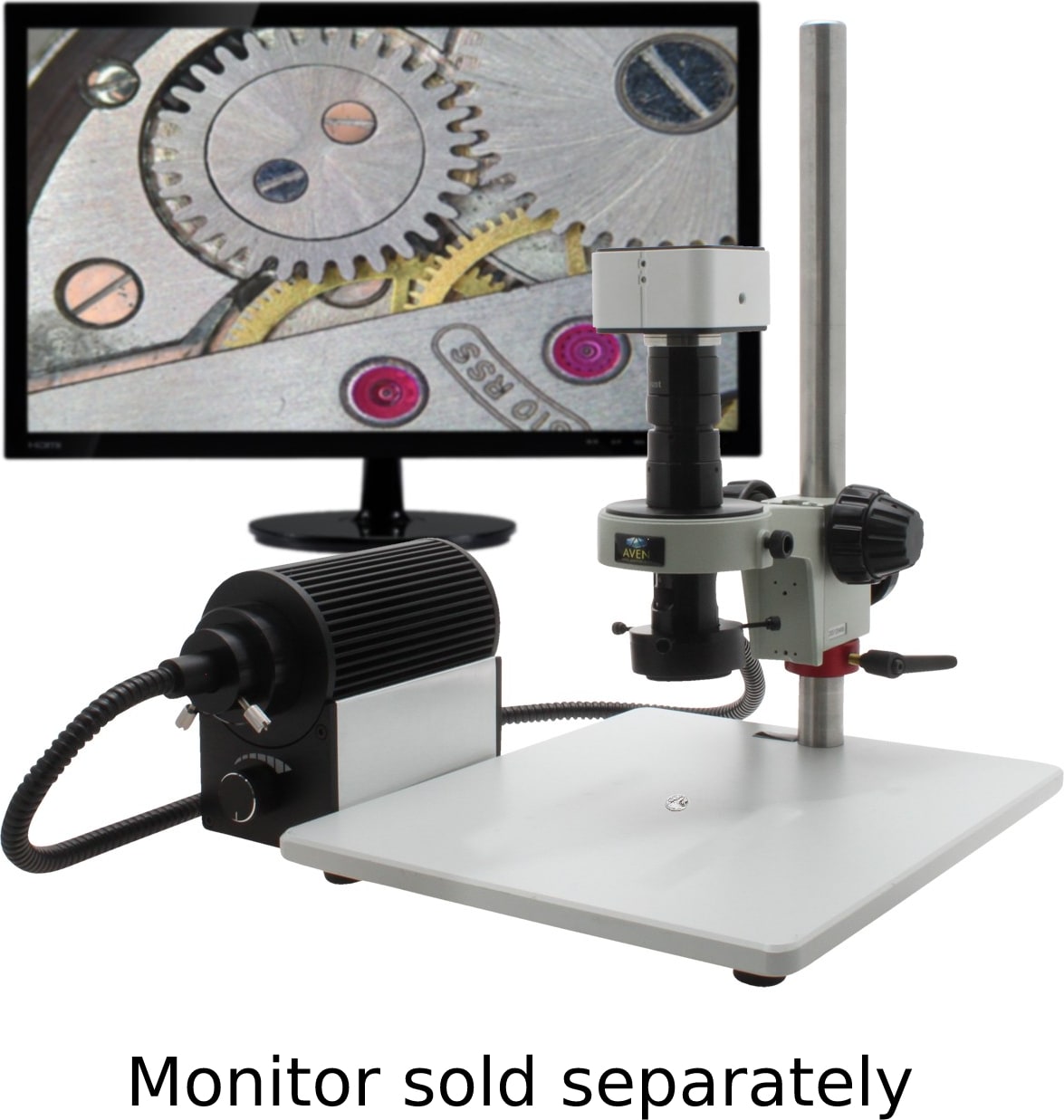

The Aven Tools MLS640-244-310 is a digital microscope system designed to provide a large magnification range. The 6-megapixel camera with USB 3.0 allows users to capture high-resolution images. The detented lens system allows for accurate repeatable measurements. The software included with the camera has advanced features allowing users to perform a variety of measurement and image documentation functions. With the 0.5x lens in use, the working distance is large enough for users to perform tasks under the lens. The MLS640-244-310 enhances productivity while eliminating eye strain and body fatigue.

Aven’s Mighty Cam USB 6M CMOS Camera with imaging and measurement software allows the user to create stunning images with outstanding clarity and then measure, annotate, and analyze with ease using the included imaging software.

Aven's Micro Lens System produces crisp and clear images that are distortion free and void of chromatic aberration. This lens system comes with detents which allows you to calibrate the lens for measurement repeatability. It comes standard with 1x C mount coupler and 1x objective lens. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. Working Distance is 82mm. This system also comes with 2x and 0.5x Aux Lenses providing a larger measurement range for various applications.

On screen tools within the included software provide powerful measurement functions including:

• Freehand line
• Rectangle
• Polygon
• Circle and bicircle
• Angle
• Point line distance and more

The included computational imaging software provides users with more functions including:

• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

A versatile illumination source, this device easily adapts to your specific application. The 26200A-310 contains a 24-watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.

• Aluminum powder-coated base
• All metal construction
• UNC bolt and safety clamp included

The heavy-duty stand is perfect for applications where horizontal extension is limited. The large base (279 x 330 x 12.7mm) accommodates a large variety of parts.
