• Superior optics with Crystal clear high resolution images
• Magnification Range: 6.7x to 50x. On screen 19x-143x
• Light weight, compact, durable metal post stand with base.
• 120 LED ring light with adjustable polarizer reduces the glare from shiny or reflective objects
• Mighty Cam Eidos provides live on-screen images, and features an SD card port for saving image/video files

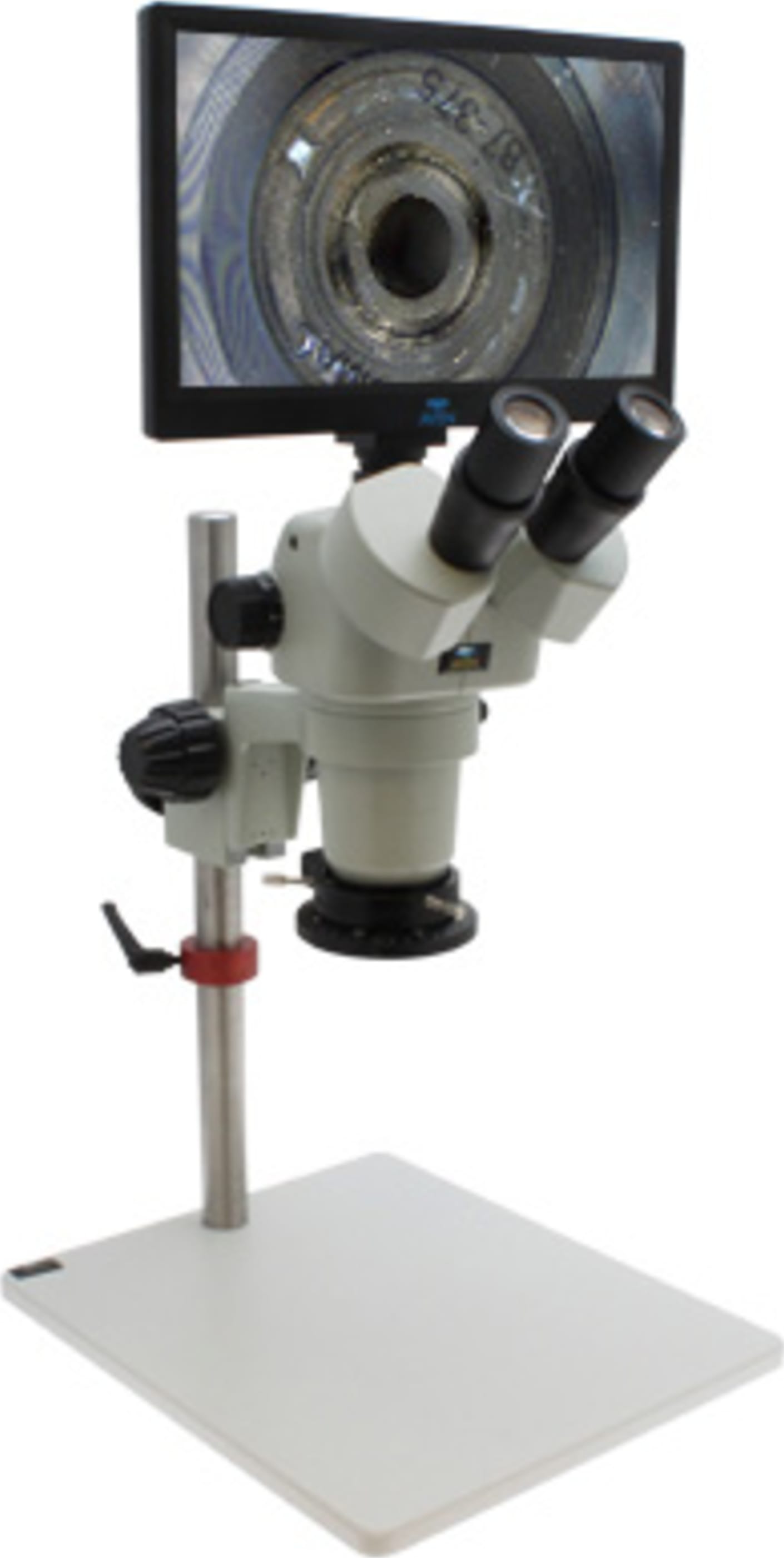

SPZV-50 True Trinocular Stereo Zoom Microscope with 10x eyepieces, a zoom ratio (7.46:1), magnification range of 6.75x to 50x, wide field of view (34.3mm—4.6mm) and a long working distance (108mm). High precision optics ensure excellent contrast and high definition 3D images from edge-to-edge. Integrated 11.6"screen with 5M HD camera with SD card helps increase productivity and reduce eye fatigue. On screen magnification is 19x-143x. The LED Ring Light with Adjustable Polarizer allows operators to reduce the light reflection from shiny or reflective parts, revealing details that would otherwise be washed out.

SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge.

• View images through the eyepiece or a monitor simultaneously.
• Click stop zoom adjustment for accurate measuring
• Easy adjust C-mount camera adapter for fine focusing
• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35" to 0.14")
• Working distance 108mm (4.25") – the best in class
• 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes

DUAL VIEWING OPTIONS WITH AVEN'S MIGHTY CAM EIDOS

Save image files directly to an sd card. No computer required.

Aven Mighty Eidos – Integrated HD monitor and inspection camera. Connect to any C/CS mount microscope or video lens. View High Res 1080p HD images on the 11.6" LCD monitor. No computer or external monitor required for inspection or image/video capture. Features a built-in SD card slot for file capture, and a USB output for PC connectivity. Includes wireless mouse to control menu settings.

• Convenient 2-in-one camera and monitor system
• Magnification Range 19x-143x
• Simple cable management
• 1080p HD image at 60FPS
• Built in SD card reader for instant image/video capture
• USB output for connection to your PC
• Wireless mouse for access to settings menus
• Grid overlays
• Compare mode, freeze mode and mirror mode
• Alleviate the eye strain and neck fatigue associated with frequent microscope use

REDUCE THE GLARE FROM SHINY AND REFLECTIVE PARTS

The polarized ring light significantly reduces the glare from shiny objects, allowing operators to see details that could otherwise be obscured or washed out.

ADJUSTABLE POLARIZER

Aven's LED Ring Light with Adjustable Polarizer features a turn dial with reference markers. Adjust the level of polarization by turning the dial.

Brightness Adjustment Aven's LED Ring Light with Adjustable Polarizer features a built-in brightness dial for precise illumination control of 120 LEDs.

16 INCH POST STAND

This heavy duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts.

TALL AND COMPACT

• Aluminum powder coated base
• All metal construction
• UNC bolt and safety clamp included
