• Digital microscope system includes Mighty Cam ES, 360 Viewer, microlens, 0.5x coupler, lens adapter plate, Track stand with LED lighting, 22-inch HD monitor
• 360 Viewer allows users to inspect from all angles by simply rotating the viewer
• 22x to 147x magnification; 0.6 to 4x zoom
• Micro zoom lens with four detented zoom settings
• Mighty Cam ES camera provides excellent image quality in HDMI or USB modes

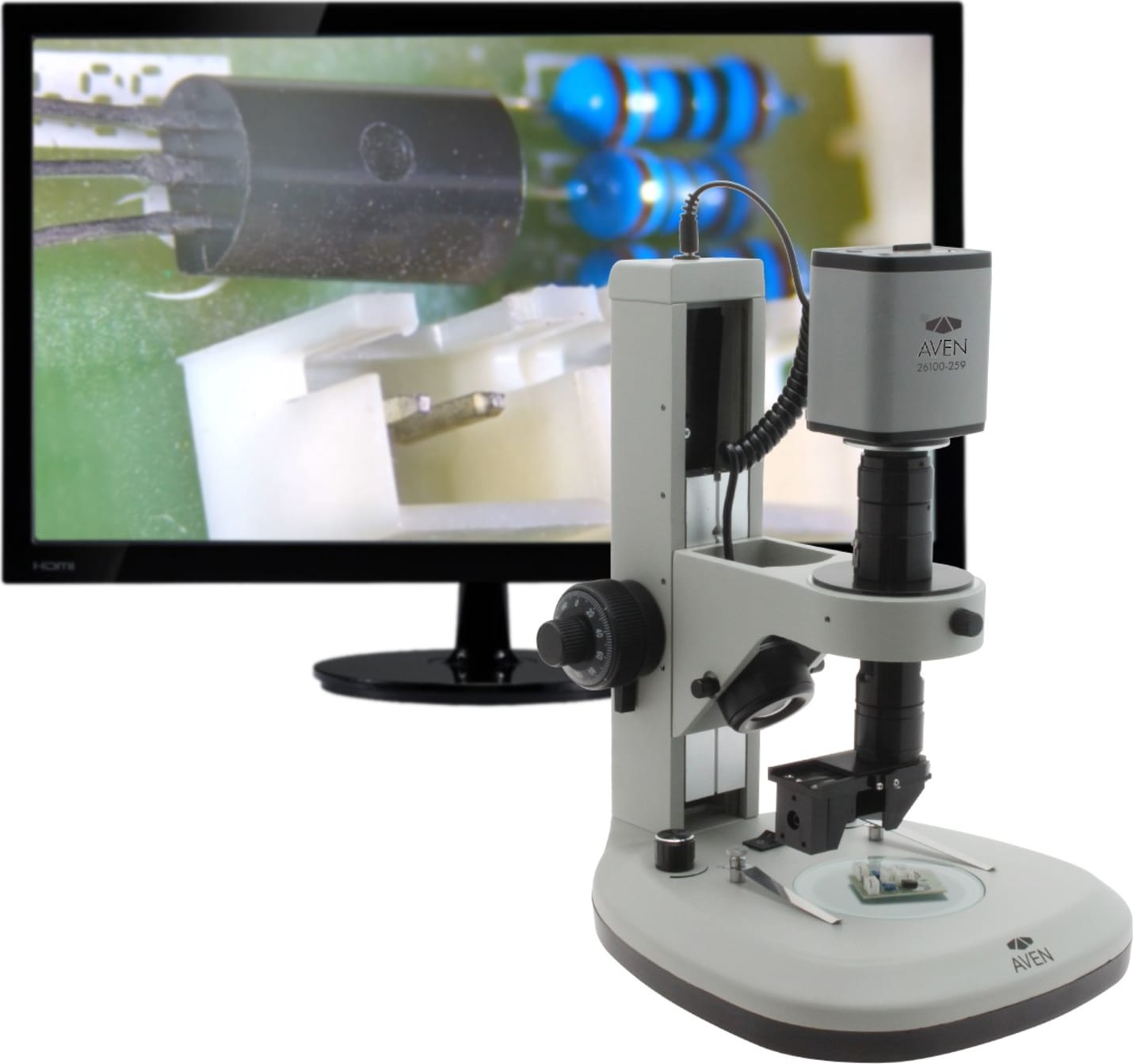

The Aven Tools 26700-151-C05-259506 is a digital microscope system consisting of the Mighty Cam ES camera, a detented microlens with 0.5x coupler, 360 Viewer, lens adapter plate, track stand with top and bottom adjustable LEDs, and 22-inch HD monitor. It provides a magnification range of 22x to 147x.

The 360 viewer allows users to inspect parts from various angles without having to rotate the part. The viewer features a mirror inclined at a 35-degree angle. The 3D viewer can be easily engaged or disengaged by sliding the mechanism in or out.

The high-quality zoom lens has detents set at 0.6x, 1x, 2x, and 4x. This allows for calibrating the lens for high accuracy measurement with the included Image Analysis and Measurement Software. The lens is parfocal and will stay in focus when zooming in or out.

The Mighty Cam ES camera included in this package features a 5M CMOS sensor and has both HDMI and USB outputs.

The camera can be operated in HDMI mode at 1080P resolution without a PC. Only a monitor with an HDMI input is required. All necessary camera adjustments and functions such as digital zoom are available on the screen. Images and videos can be captured onto the built-in SD card.

In USB mode the camera can be connected to a PC and the included software can be used for measurement, image analysis, sharing, image/video capture, and more.

Note: 360 Viewer must be in the OFF position to perform measurements.

The included track stand features an adjustable LED overhead and backlight. The focusing distance is about 4 inches (106mm) and the track length is 11 inches (280mm). The backlight is designed to illuminate translucent objects and is covered by a frosted glass plate for soft diffused lighting. Two clips secure slides over the glass plate. The base size is 11.21 inches x 9.36 inches.
