Aven Tools 26700-108 - Mighty Mag Auto Focus Digital Inspection System with Standard Stand

Name: Aven Tools 26700-108 - Mighty Mag Auto Focus Digital Inspection System with Standard Stand
Brand: Aven Tools
SKU: Aven Tools26700-108
Price: 2495.67 USD
Availability: InStock

0 reviews | Model: Aven Tools 26700-108

Compare

Mighty Mag Auto Focus Digital Inspection System with Standard Stand [7x - 33x]

7x - 33x Magnification (7x – 22x at 6” working distance, 13x – 33x at 3” working distance)
Provides instant focus from any angle
Sharp 1080p Full HD image
Save high resolution image/video files to the included 64GB USB Drive
Significantly reduces inspection time
Includes USB mouse for access to settings menu
Alleviate the eye strain and neck fatigue associated with frequent microscope use

View Product Details

List Price: $2,772.27

Your Price: $2,495.67

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Aven Tools 26700-108 Mighty Mag Auto Focus Digital Inspection System with Standard Stand [ ...	Aven Tools MLS640-244-310 Micro Lens System with USB Mighty Cam on Stand with 310 Fiber Op ...
Price
In Stock
Magnification max	33 x	251.4 x
Compare	Add to compare	Add to compare

Recommended for you

Aven Tools 26700-108

7x - 33x Magnification (7x – 22x at 6” working distance, 13x – 33x at 3” working distance)
Provides instant focus from any angle
Sharp 1080p Full HD image
Save high resolution image/video files to the included 64GB USB Drive
Significantly reduces inspection time

Mighty Mag Auto Focus Digital Inspection System with Standard Stand [7x - 33x]

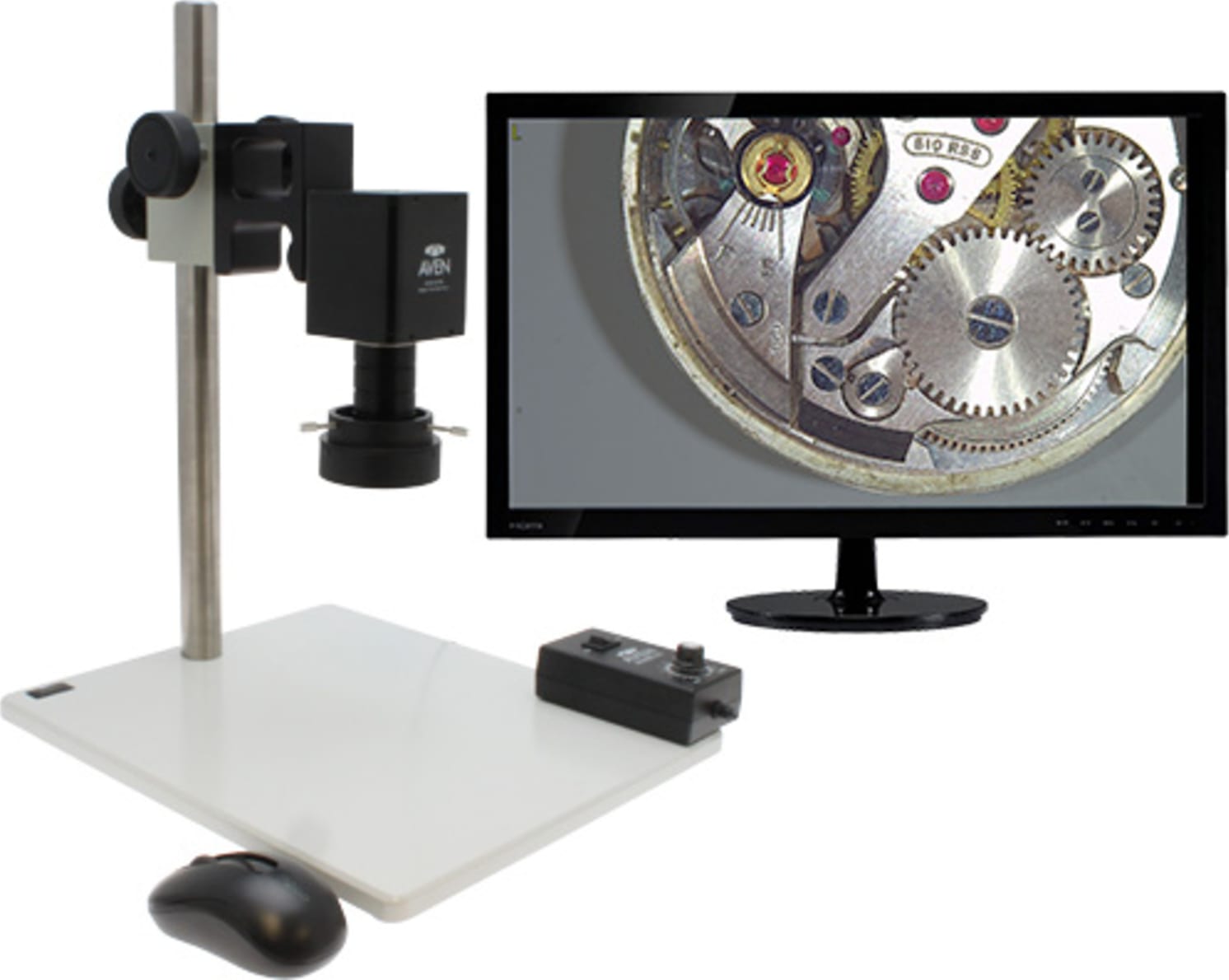

Achieve instant focus without the need to constantly refocus the lens. Ideal for inspecting multilayered objects such as PCBs. View crystal clear 1080p images on your HD monitor. System includes Aven's Mighty Cam Auto Focus camera, heavy-duty post stand with focus mount, 22" 1080p HD Color Monitor, 26700-182 lens, LED ring light with 96 adjustable LEDs.

Magnification range: see optical data

Field of view: 92.2mm - 9.6mm at a 6" working distance

26100-257SD – Mighty Cam Auto Focus with 32GB SD Card
26700-182 – Macro Lens
26800B-571 – Heavy Duty post Stand
26200B-216 – LED Ring Light
26700-406 – 22" 1080p LCD HD monitor
26800B-578 – N Type Focus Mount
Mighty Cam Auto Focus Camera
USB Mouse
Power Supply
HDMI Cable
32 GB Micro SD Card
USB SD Card reader

Model: 26700-108 Specifications
Description	Mighty Mag Auto Focus Micro System
Package Contents	26100-257SD – Mighty Cam Auto Focus w/32GB SD Card 26700-182 – Macro Lens 26800B-571 – Heavy Duty post Stand 26200B-216 – LED Ring Light 26700-406 – 22" 1080p LCD HD monitor 26800B-578 – N Type Focus Mount
Dimensions	11" x 13" x 16"
Weight	25 lbs
Mighty Cam Auto Focus with 32GB SD Card
Sensor	CMOS 1/2.8"
Package Contents	Mighty Cam Auto Focus Camera USB Mouse Power Supply HDMI Cable 32 GB Micro SD Card USB SD Card reader
Efficiency Resolution	1920*1080
Pixel	2M
Resolution	1080p60Hz/1080p50Hz
Frame Rate	60FPS
Output	HDMI
White Balance	Auto/Manual
Exposure	Auto/Maunal
Power Supplier	DC5V

Microscopes/Video Inspection Systems Template
Magnification max	33 x
Illumination Type	LED
Working Distance	6 IN (25.40 MM)
Digital Camera Resolution	2 Megapixels
Magnification min	3 x
Test Equipment General Attributes
Product Weight	25 LBS
Product Height	19.00 IN
Product Length	24.00 IN
Product Width	17.00 IN
Shipping Weight	28 LBS
HTS/Schedule B Number	9012.10.0000
Shipping Height	19.00 IN
Shipping Length	24.00 IN
Shipping Width	17.00 IN
