• HypotULTRA series
• AC Hipot tester
• 5 kV @ 30 mA AC

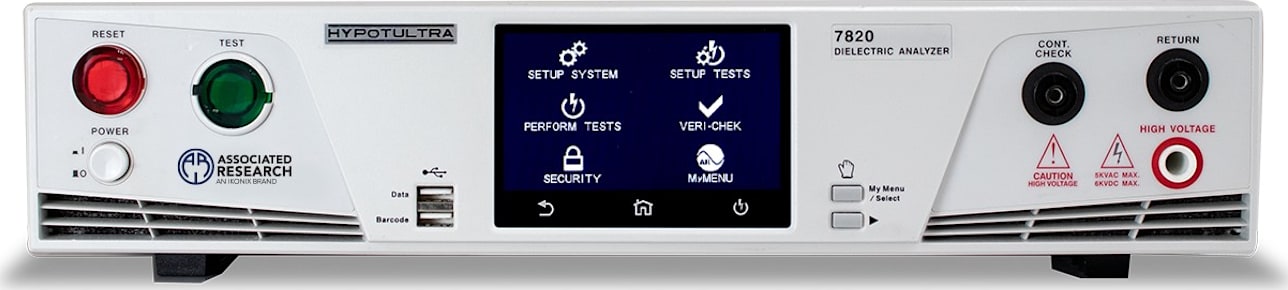

The HypotULTRA Electrical Safety Tester is the premier line of Electrical Safety Testers for Laboratory and Production Line settings. In a world where data is king, HypotUTLRA improves traceability with on-board data storage and allows you to automate Electrical Safety Testing with a variety of communication interfaces. Increase efficiency with a direct barcode scanner connection and intuitive touchscreen interface.

The HypotULTRA Series includes models with both dielectric withstand test and Ground Bond capabilities. The following models have Hipot capability: 7820, 7850, 7800. Models 7804 and 7854 include 4-in-1 test capability and boast 40 Amps Ground Bond capacity.

*Meets 200 mA short circuit requirements

Make Hipot type testing more productive by automatically raising or lowering the output voltage between test steps rather than performing multiple tests at different voltages.

Take the pain out of your data transfer with on-board flash drive support and local data storage. Instantly import test files directly to your instrument during set-up. Save and record up to 10,000 test results directly from your instrument.

Increase efficiency and production throughput by incorporating a barcode scan. A simple scan will associate your DUT with the test sequence and test data.

Testing in Global environments is now easier than ever before. Our instruments can operate in different languages. Simply choose your desired setting.

Provides maximum operator protection by detecting excessive current leakage in the event a DUT is isolated from ground, instantly saving the test operator should he or she come into contact with high voltage.

Increase throughput with no additional rack space required by performing multi-point sequential Hipot or Ground Bond tests with this optional internal multiplexer.

Increase throughput for your test environment by virtually adding an endless number of Hipot or Ground Bond test points with our SC6540 modular multiplexer. With 8 combinations to choose from for each SC6540 module, this scanner is the ideal solution for high throughput production with reduced operator error.

Provides a reverse polarity DC dielectric withstand test output. Maximize testing capability by testing product insulation in both polarities.

Combine the HypotULTRA with an optional multiplexer to test multiple points or multiple DUT’s. The patented SC6540 Modular Multiplexer pioneered the largest productivity improvement in the electrical safety compliance industry in years. With up to 16 independent high voltage or high current channels in a convenient 2U design, the SC6540 Multiplexer (MUX) can be customized in 10 different configurations for multi-point Hipot, Ground Bond, Insulation Resistance, and Leakage Current testing.
