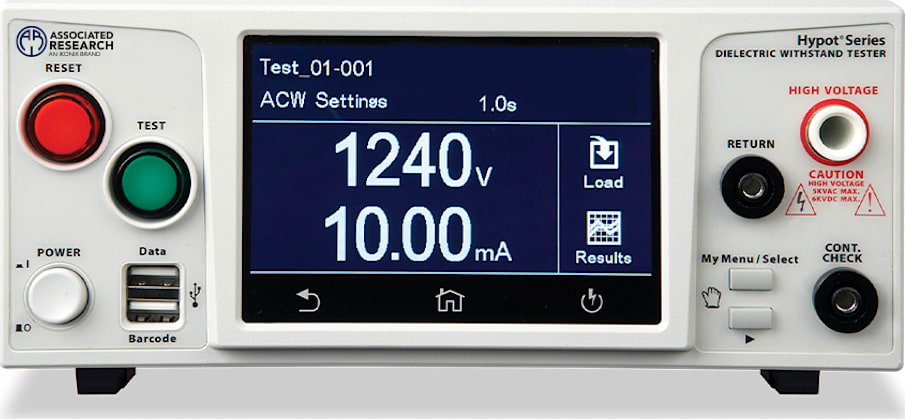

AC/DC Hipot, 5 kV @ 20 mA AC, 6 kV @ 7.5 mA DC
The Associated Research Hypot series raises the bar for production line Hipot testing. Improve traceability with on-board data storage and easily transfer test result data and test settings via convenient front panel USB. Take the guesswork out of your production line with the direct barcode connection to quickly associate products with pre-programmed test files.
Associated Research has included advanced features like improved security and a touchscreen interface that provides custom pop-up prompts displayed before each test step. It has dramatically reduced the weight and footprint of the Hypot series to make safety compliance a less strenuous ordeal. Quickly interconnect with the HYAMP® Series to form a complete safety compliance system.
The Hypot series is offered in several formats with differing functionality. The following is an overview of each:
| AC Hipot | DC Hipot | Ground Continuity | Insulation Resistance | EN 50191 Compliant |
| 03805 | • |
| • |
| • |
| 03865 | • | • | • |
| • |
| 03870 | • | • | • | • | • |
| 03880* | 500 VA* |
| • |
|
|
*Meets 200 mA short circuit requirements
