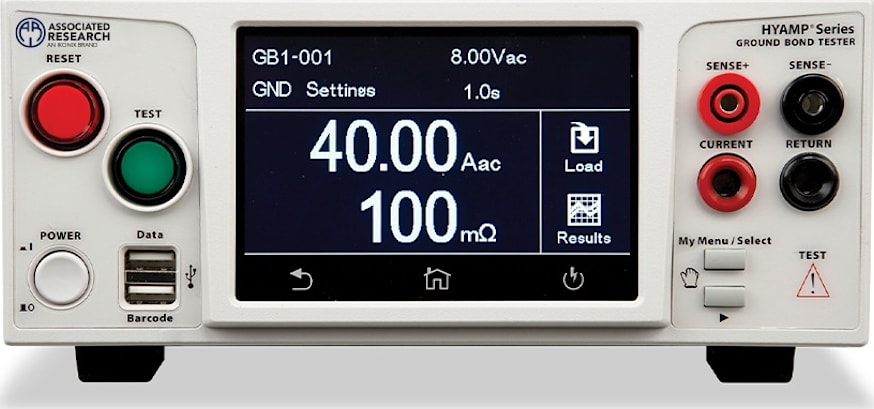

| Ground Bond Test Mode |
| Output Voltage (Open Circuit Voltage) |
Range:
Resolution:
Accuracy: |
3.00 – 8.00 VAC/DC
0.01 VAC/DC
± (3% of setting + 3 counts) |
| Output Frequency |
50 or 60 Hz, User Selectable/DC |
| Output Current |
Range:
Resolution:
Accuracy: |
0 – 150 mΩ for 30.01 – 40.00 A
0 – 200 mΩ for 10.01 – 30.00 A
0 – 600 mΩ for 1.00 – 10.01 A
0.1 A
± (3% of setting + 3 counts |
| Maximum Loading |
Range:
Resolution:
Accuracy: |
1.00 – 10.00 A, 0 – 600 mΩ
10.01 – 30.00 A, 0 – 200 mΩ
30.01 – 40.00 A, 0 – 150 mΩ
1 mΩ
± (2% of setting + 2 counts) |
| HI and LO-Limit Resistance |
Range:
Resolution:
Accuracy: |
0 – 150 mΩ for 30.01 – 40.00 A
0 – 200 mΩ for 10.01 – 30.00 A
0 – 600 mΩ for 1.00 – 10.01 A
1 mΩ
± (2% of setting + 2 counts |
| HI and LO-Limit Voltage |
Range:
Resolution:
Accuracy: |
0.00 – 6.00 V
0.01
± (2% of settings + 2 counts |
| Dwell Time Setting |
Range: |
0, 0.5 – 999.9 sec (0=Continuous |
| Ω Offset Capability |
Range:
Resolution:
Accuracy: |
0 – 100 mΩ
1 mΩ
± (2% of setting + 2 counts) |
| V Offset Capability |
Range:
Resolution:
Accuracy: |
0.00 – 4.00 V
0.01 V
± (2% of setting + 2 counts) |
| Current Display |
Range:
Resolution:
Accuracy: |
0.00 – 40.00 AAC/DC
0.01 AC/DC
± (3% of reading + 1 count) |
| Voltage Display |
Range:
Resolution:
Accuracy: |
0.00 – 8.00 VAC/DC
0.01 AC/DC
± (2% of reading + 2 counts) |
| Ohmmeter Display |
Range:
Resolution:
Accuracy: |
0 – 600 mΩ for 1.00 – 5.99 A
1 mΩ
± (3% of reading + 3 counts) |
| |
Range:
Resolution:
Accuracy: |
0 – 600 mΩ for 6 – 40 A
1 mΩ
± (2% of reading + 2 counts) |
