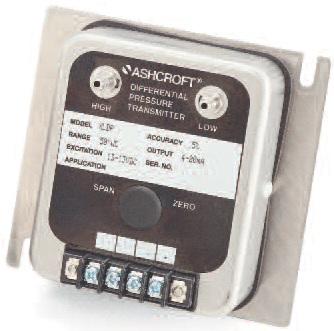

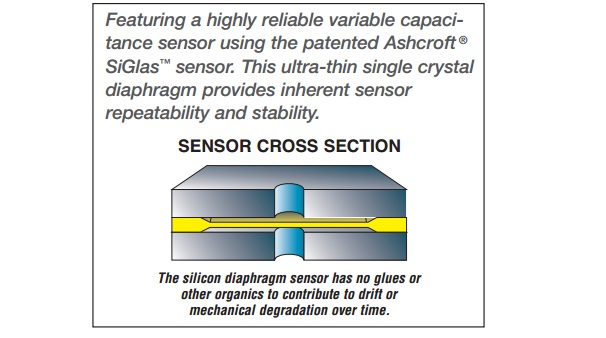

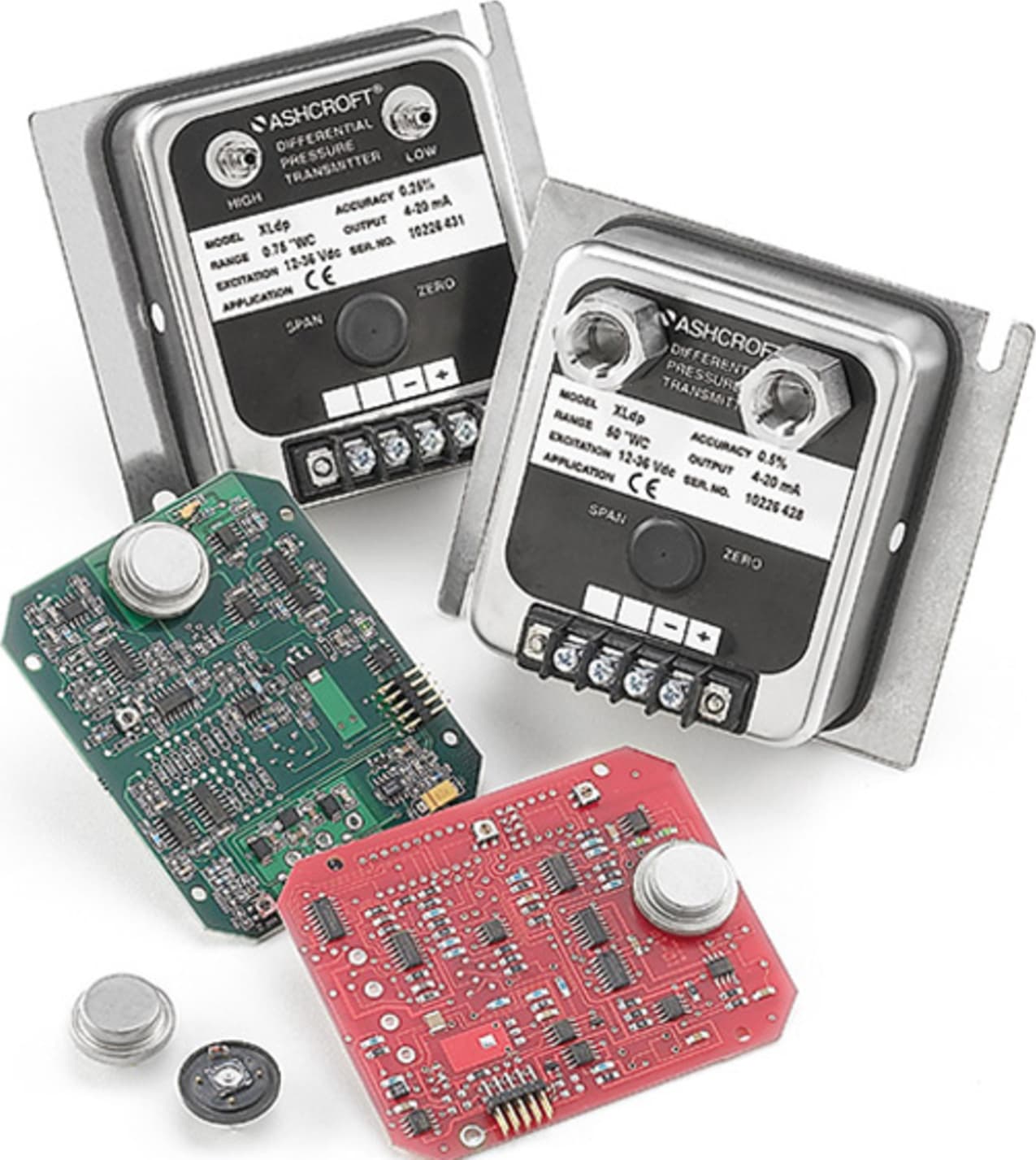

| PERFORMANCE SPECIFICATIONS |
| Ref. Temperature |
70°F ±2°F (21°C ±1°C) |
| Accuracy Class (of Span) Two Options |
±0.25%, ±0.50%
Includes non-linearity (Terminal Point Method), hysteresis, non-repeatability, zero offset and span setting errors. |
| Stability – Max. Change (Span/year) |
±0.25 % |
Standard Ranges (Inches W.C.)
Unidirectional Ranges |
Differential or Gauge
0/0.10
0/0.25
0/0.50
0/0.75
0/1.00
0/1.50
0/2.00
0/2.50
0/ 3.00
0/ 5.00
0/10.00
0/15.00
0/25.00
0/50.00 |
Standard Ranges (Inches W.C.)
Bidirectional Ranges |
Compound
±0.05
±0.10
±0.25
±0.50
±1.00
±2.00
±2.50
±3.00
± 5.00
±10.00
±25.00
±50.00 |
| Custom Ranges |
Special range calibrations (XCL) – consult factory |
| Standard Response Time |
250msec
(Consult factory for damping options) |
| ENVIRONMENTAL SPECIFICATIONS |
| Temperature Limits |
Storage: –40 to 180°F
Operating: –20 to 160°F
(10-95% R.H. non-condensing)
Compensated Range: +35 to 135°F |
| Thermal Coefficients |
ZERO: ±0.015% Span/°F
SPAN: ±0.015% Span/°F |
| Vibration Sweep |
Less than 0.05% Span temporary effect with 5 g’s 0-60 Hz |
| CE Marked |
Per DoC
EMC Directive 2004/108/EC
IEC/EN 61326-1:Edition 1.0 Industrial
IEC/EN 61326-2-3:Edition 1.0 Annex BB Industrial |
| FUNCTIONAL SPECIFICATIONS |
| Overpressure Limits |
Proof: 15 psid
Burst: 25 psid
Max. static line pressure: 25 psi |
| Mounting Position Effect |
0.5˝ W.C. and higher ± 0.10% Span/g
0.25˝ W.C. ± 0.25% Span/g
0.1˝ W.C. ± 0.50% Span/g
Note: Calibrated horizontally standard unless
otherwise specified. Mounting Position Effect
easily corrected with zero potentiometer |
| ELECTRICAL SPECIFICATIONS |
| Output Signal |
4-20mA (2 wire)*
1-5 Vdc (3 wire)
1-6 Vdc (3 wire)
*Optional CE version |
| Power |
12-36 Vdc
12-36 Vdc
12-36 Vdc |
| Output Signal is Independent of Power Supply Changes |
12-36 Vdc range without effect on output signal |
| Reverse Wiring Protected Zero and Span Potentiometers |
Externally accessible, noninteractive, ±10% F.S. adjustment |
| Supply Current |
<6mA for voltage output |
| Warm-up Time |
5 seconds max. to meet stated
specifications
*Applies to 4-20mA output units with XCE option |

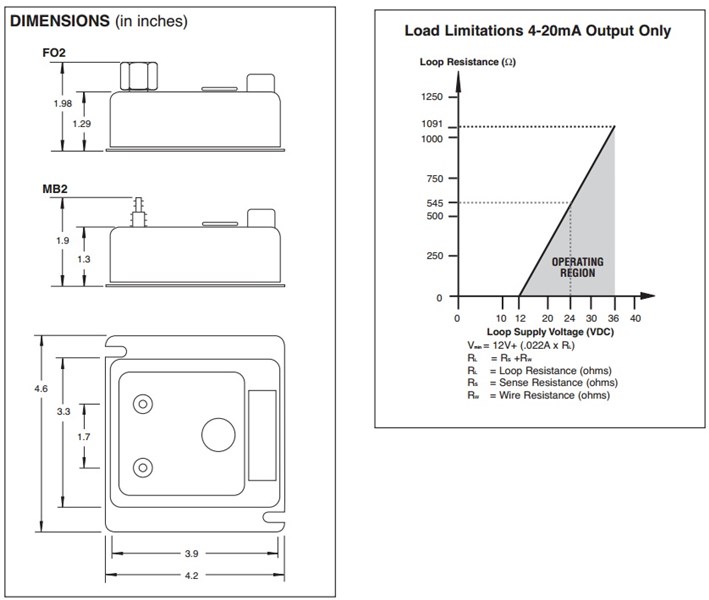

| PHYSICAL SPECIFICATIONS |
| Pressure Connections |
1⁄4˝ barbed stainless steel
1⁄8˝ barbed stainless steel (optional)
1⁄4 NPT female stainless steel (optional) |
| Electrical Connections |
Teminal strip |
| Weight |
14 oz, NEMA 2 Case |
| MATERIALS |
| Case |
300 series stainless steel |
| Media |
Clean, dry, non-corrosive gas (consult factory for use on other media)
DO NOT USE ON LIQUIDS |
| NOTES: |
• Calibration curve (0.25%) or data (0.50%)supplied with each transmitter
• Consult factory on other pressure range, temperature compensation or packaging variations |
