Ashcroft T2 Pressure Transducer Specifications
PERFORMANCE SPECIFICATIONS
Ref. Temperature, 21°C ±1°C (70°F, ±2°F)
Accuracy:
Static Accuracy Class: ±0.25% of span (BFSL Best-Fit Straight Line Method) including non-linearity, hysteresis, non-repeatability at reference temperature
(1% Total Error Band –20°/85°C and 1.50% Total Error Band –40°/–20°C and 85°/125°C)

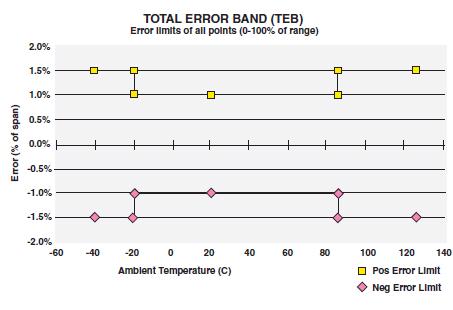

Temperature Effect:
–20°C to 85ºC < ±1% of Span – Total Error Band
–40°C to –20ºC <±1.5% of Span – Total Error Band
–85°C to 125ºC <±1.5% of Span – Total Error Band
Total Error Band includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors.
Stability: Less than ±0.25% span/year
Durability: Tested to 50 million cycles
ENVIRONMENTAL SPECIFICATIONS
Temperature:
Compensated –40 to 125°C (–40 to 257°F)
Operating –40 to 125°C (–40 to 257°F)
Storage –40 to 125°C (–40 to 257°F)
Humidity: 0 to 100% R.H., no effect
FUNCTIONAL SPECIFICATIONS
Select from over 25 pressure ranges starting at 30 psi and running through 20,000 psi. Compound (vacuum & pressure) ranges are also available, see below.
Overpressure (F.S.): Proof Burst
750 psi & below 200% FS 1000% FS
1500 psi 200% FS 500% FS
3000 psi 200% FS 500% FS
5000 psi 150% FS 500% FS
7500 psi 120% FS 500% FS
10,000 psi 120% FS 240% FS
20,000 psi 120% FS 240% FS
Vibration: Random vibration (20 g) over temperature range (–40° to 125°C). Exceeds typical MIL. STD. requirements
Shock: 100gs, 6 ms
Drop Test: Withstands 1 meter on concrete 3 axis
Response Time: Less than 1 msec
Warm-up Time: Less than 500 msec typical
Position Effect: Less than ±0.01% span, typical
ELECTRICAL SPECIFICATIONS
Output Signals Available:
Supply Voltage Output Excitation Current
0-5 Vdc, 3 wire 9-36 Vdc 5mA
0-10 Vdc, 3 wire 14-36 Vdc 5mA
1-5 Vdc, 3 wire 9-36 Vdc 4mA
1-6 Vdc, 3 wire 9-36 Vdc 4mA
Ratiometric Output 0.5-4.5 Vdc, 3 wire 5 Vdc ±0.5 Vdc 3.5mA
Current Output 4-20mA, 2 wire 9-36 Vdc
Reverse Polarity and Mis-wired Protected: Yes
Insulation Breakdown Voltage: 100 Vac
Insulation Resistance: Greater than 100 megohms at 100 Vdc
CE Compliance: Per EN 61326: 1997+ A1: 1998 +A2: 2001, Annex A (Heavy Industrial)
PHYSICAL SPECIFICATIONS
Wetted Materials: 304SS pressure connection and 17-4PH SS sensor diaphragm
Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1
Available Process Connections (Male):
1⁄8 NPT, 1⁄4 BSP, 1⁄4 NPT, G1⁄4 B, 7⁄16-20 UNF-2A
Ingress Rating: Enclosure meets NEMA 4X, IP65
ELECTRICAL TERMINATION
• Pigtail: 3 feet of shielded cable, PVC jacket, 24 AWG leads

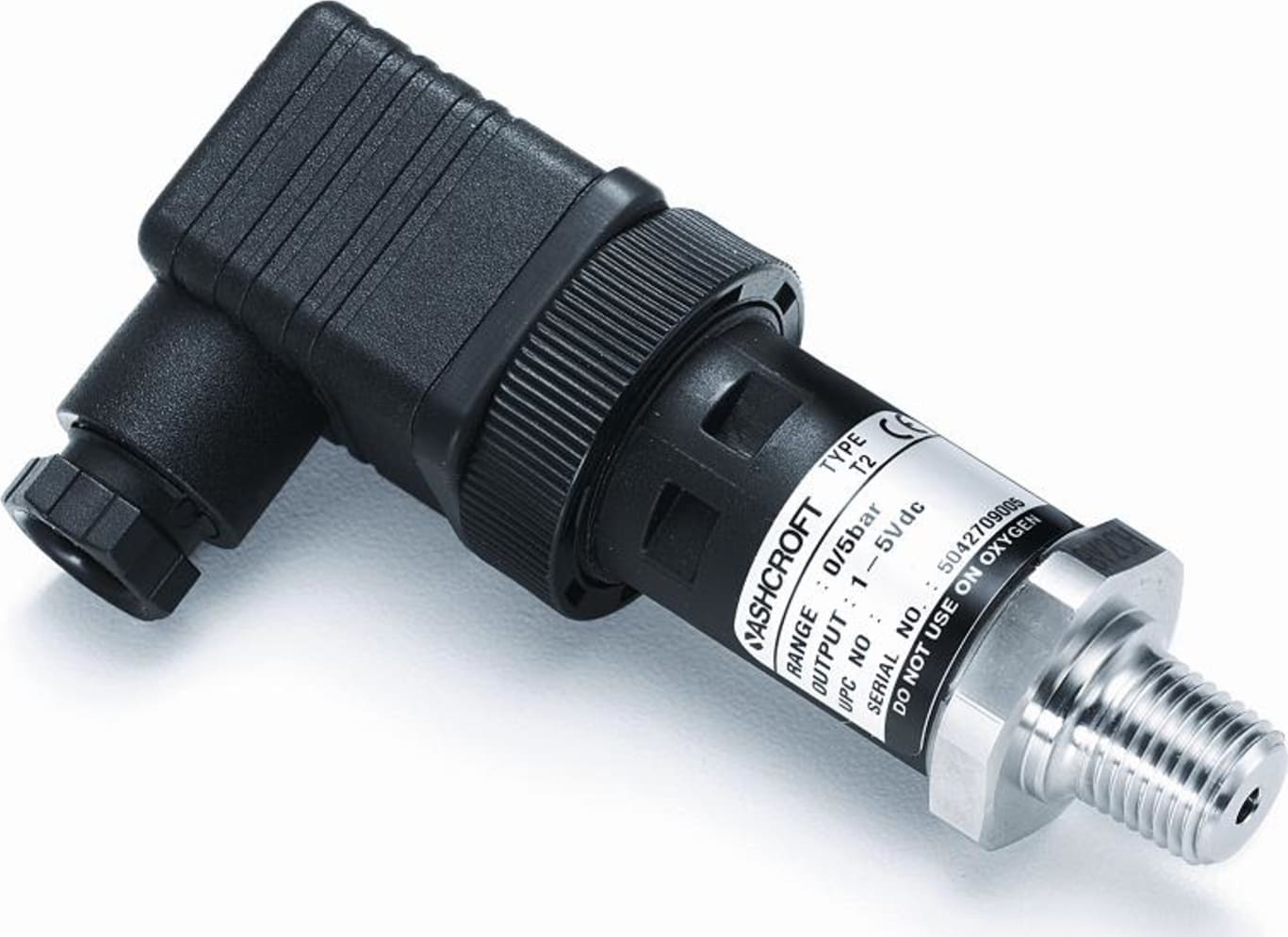

• EN 175301-803, Form A (DIN 43650, Form A)
• Bendix style 4 pin, PTO 2A-8-4P or similar
• M12 x 1, 4 pin, Circular style
