Ashcroft SL17 - Submersible Pressure Transmitter

Name: Ashcroft SL17 - Submersible Pressure Transmitter
Brand: Ashcroft
SKU: AshcroftSL17
Price: 556.71 USD
Availability: InStock

0 reviews | Model: Ashcroft SL17

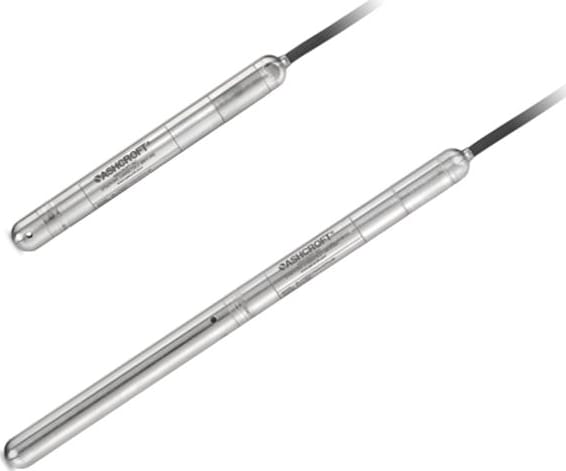

Ashcroft SL17 Submersible Pressure Xmitter

Compare

SL17 Submersible Pressure Level Transmitter. Small 17 mm Diameter. 316L SS NEMA 6P (IP68) Body and Polyurethane Cable. RANGES: 1.5 psig to 300 psig. Choice of Nose Fitting and Cable Length.

Small 17 mm OD designed to fit narrow bore application
Predefined and custom cable lengths
Proven and stable piezo-resistive sensor
Accuracy: ±0.25% for ranges >1.5 psi, ±0.5% for 1.5 psi
Pressure Ranges: 1.5 to 300 psi
Housing: NEMA 6P / IP68
Rugged 316L SS body with polyurethane cable
2-wire 4-20 mA Output

View Product Details

From: $566.42 - $2,780.01

In Stock:

Customize the item below to add to cart.

Non-Cancellable / Non-Returnable

Customize Your Product

Part Number: SL17

Price: $556.71

ADD TO CART

Add to Quote

Recommended for you

Ashcroft SL17 Accessories

Choose a Category

Boxes
Misc Connectors / Adapters

for the Ashcroft SL17

Ashcroft 041B127-01 041B127-01 Termination Box for SL17 Pressure Transmitter

Catalog: 041B127-01

(0)

In Stock!

Add to Cart

Ashcroft 041B127-02 041B127-02 Termination Box with Surge Protector for SL17...

Catalog: 041B127-02

(0)

In Stock!

Add to Cart

Ashcroft 572A116-01 572A116-01 Replacement Desiccant Filter for SL17 Submersible...

Catalog: 572A116-01

(0)

In Stock!

Add to Cart

Ashcroft SL17 - Submersible Pressure Transmitter

The Ashcroft® SL17 submersible transmitter provides a highly reliable platform for accurate pressure, level control, and monitoring. Its small O.D. allows it to be dropped into smaller bore holes or to be more easily bundled with other instruments. The SL17 is ideal for groundwater monitoring applications.

Ashcroft SL17 Submersible Pressure Level Pressure Transmitters
SPECIFICATIONS

PERFORMANCE SPECIFICATIONS

Accuracy

±0.50% FS, terminal point 1.5 psi range only
±0.25% FS, terminal point, all ranges greater than 1.5 psi
(Accuracy includes the effects of linearity,
hysteresis, and repeatability)

Stability

±0.25% FS/yr

Engineering Units

psi, ftH2O, mH2O, Bar, customer defined

Humidity

0-100% RH based on cable vented to clean, dry, non-corrosive atmosphere or proper use of termination desiccant box

Reference Condition

21°C(70°F)

ENVIRONMENTAL SPECIFICATIONS

Temperature Limits

Storage: –20 to 60°C (14 to 140°F)
Operating: –10 to 40°C (14 to 104°F)
Compensated: –20 to 60°C (14 to 140°F)

Temperature Effects (–10 to 40°C)

±1% TEB
(>5 psi) ±1.5% span, terminal point (<5 psi)

FUNCTIONAL SPECIFICATIONS

Overpressure (F.S.)

RANGE	Proof	Burst
1.5 - 5 psi	300%	500%
10 psi	300%	700%
15-30 psi	200%	500%
75 psi	187%	470%
150 psi	200%	400%
300 psi	200%	300%

ELECTRICAL SPECIFICATIONS

Output Signal (2-Wire)

4-20mA

Supply Voltage

10-36 VDC

Insulation Resistance

50Vdc (100Mohm)

Withstand Voltage

350 VDC

Approval CE Compliance

• EMI Class A/EMS Table 2 EN61326-1:2006
• Annex BB (Pressure Transducer) EN61326-2-3:2007
• ESD EN61000-4-2
• Burst EN61000-4-4
• Surge EN61000-4-5
• RoHS

MECHANICAL SPECIFICATIONS

Pressure Connection

M14 x 1.5

Enclosure Material

316L Stainless Steel

Enclosure Rating

NEMA 4X / IP68

Cable Jacket Sheath

Coated (0.03 inch) black polyurethane

Cable Internally

4-wire 22 AWG conductors (red +, black -, green case, white unused), bare wire is shield

Vent Tube

0.060 inch ID polyethylene
Semi-rigid PVC with shield and Kevlar strength member

Cable Pull Strength

180 lb

Cable Voltage Rating

300 V

Weight

Sensor 120 g. Standard Nose Cone adds 13g. P5C Nose cone adds 225g. Use the P5C as weight for the SL17 to sink to the bottom

Pressure Ranges

Ashcroft_SL17-pressure-ranges

Tech Specs

Continuous Level template
Type (Level)	Pressure
Wetted Part Material	Stainless Steel (SS)
Output Types (Level)	4-20 mA
Process Connection	None (suspended from electrical connection)
Electrical Connection (Process)	Flying Leads / Pigtail
Electrical Enclosure Type (Level)	NEMA 4 / IP65 or better weatherproof
Display	No
Power (Level)	DC Loop
Process / Calibration/Pressure Transmitters Template
Type (Pressure)	Gauge
Display (Xmitters)	No
Maximum Pressure	300 psi
Enclosure Type (Press Xmitter)	Submersible
Electrical Connection (Press Xmitter)	Flying Leads / Pigtail
Output Types (Xmitter)	4-20 mA
Power (Transmitters)	DC Loop
Test Equipment General Attributes
Safety Approval	CE, RoHS
Interfaces I/O	Analog Output Interfaces I/O 4-20 mA output
IP Rating	IP68 IP Rating NEMA 6P / IP68
ECCN Number	EAR99
Country of Origin	United States
