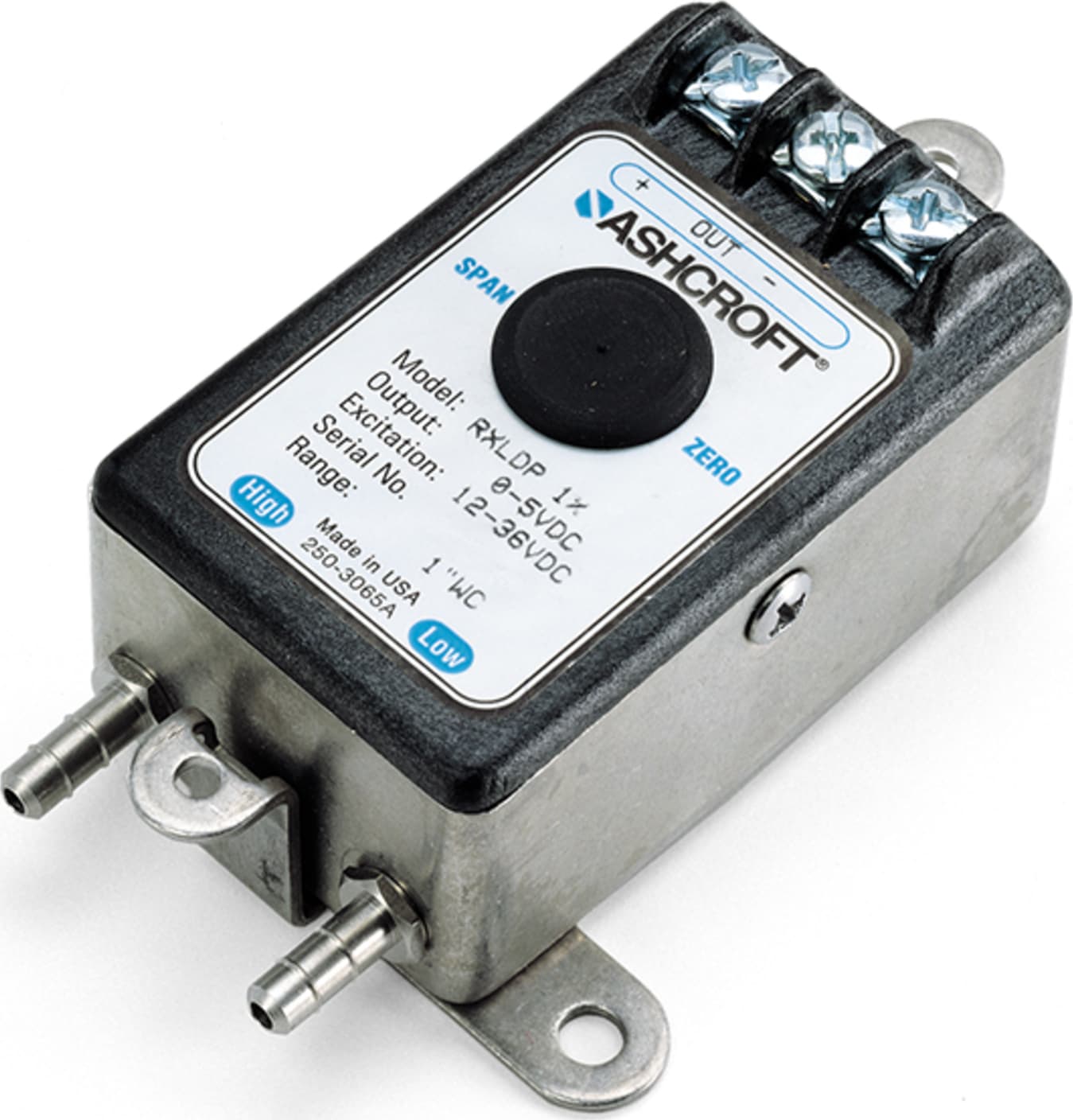

Ref. Temperature |
70°F ±2°F (21°C ±1°C) |
Accuracy Class (of Span) |
1.0%
Includes non-linearity (Terminal Point Method), hysteresis, non-repeatability, zero offset and span setting errors. |
Stability – Max. Change (Span/year) |
±0.5 % |
Standard Ranges (Inches W.C.)
Unidirectional Ranges |
Differential or Gauge
0/0.10
0/0.25
0/0.50
0/0.75
0/1.00
0/1.50
0/2.00
0/2.50
0/3.00
0/5.00
0/10.0
0/25.0
0/50.00 |
Standard Ranges (Inches W.C.)
Bidirectional Ranges |
Compound
±0.10
±0.25
±0.50
±1.00
±2.50
±5.00
±10.00
±25.00
±50.00 |
Custom Ranges |
Special range calibration, (XCL) – Consult factory |
Standard Response Time |
250ms (factory set) (Consult factory for dampening options) |
Temperature Limits |
Storage: –40 to 180°F
Operating: 0 to 160°F
(10-95% R.H. noncondensing)
Compensated Range: 40 to 125°F |
Thermal Coefficients |
ZERO: ±0.025% Span/°F
SPAN: ±0.025% Span/°F |
Vibration Sweep |
Less than ±0.05%F.S. temporary effect with 5 g’s 0-60Hz |
Overpressure Limits |
Proof 15 psid
Burst 25 psid
Max. Static Line Pressure: 25 psi |
Mounting Position Effect |
0.5˝ W.C. and higher 0.1% Span/g
Below 0.5˝ W.C. 0.25% Span/g
Note: Calibrated horizontally standard, unless otherwise specified. Mounting Position Effect easily corrected with zero potentiometer. |
Output Signal |
4-20 mA* (2 wire)
0-5 Vdc (3 wire)
1-5 Vdc (3 wire)
1-6 Vdc (3 wire)
0-10 Vdc (3 wire)
*Optional CE versions available |
Power |
12-36Vdc
12-36Vdc
12-36Vdc
12-36Vdc
12-36Vdc
12-36Vdc |
Output Signal is Independent of Power Supply Changes |
12-36 Vdc range without effect on output signal |
Reverse Wiring Protected Zero and Span Potentiometers |
Externally accessible; non-interactive
ZERO: ±5% Span
SPAN: ±3% Span |
Supply Current |
<6mA for voltage output |
Warm-up Time |
Five seconds max. to meet stated specifications |
Pressure Connections |
Stainless steel 1⁄8 NPT female, 1⁄4˝ and 1⁄8˝ barbed connection |
Electrical Connections |
Terminal strip |
Weight |
4.5 oz, NEMA 1 Case |
Media |
Clean, dry and noncorrosive gas (consult factory for use on other media)
NOT FOR USE ON LIQUIDS |
Factory Mutual approvals* |
Use “XFM” option
Intrinsically Safe:
Class I, II, III; Div. 1
Groups A, B, C, D, E, F and G
When properly installed with an approved FM intrinsically safe barrier.
Non-Incendive:
Class I, II, III; Div. 2
Groups A, B, C, D, E, F and G
*Note:FM option (XFM) cannot be combined with options X1D or XX2. |
Case/Cap |
Stainless steel/Lexan |
