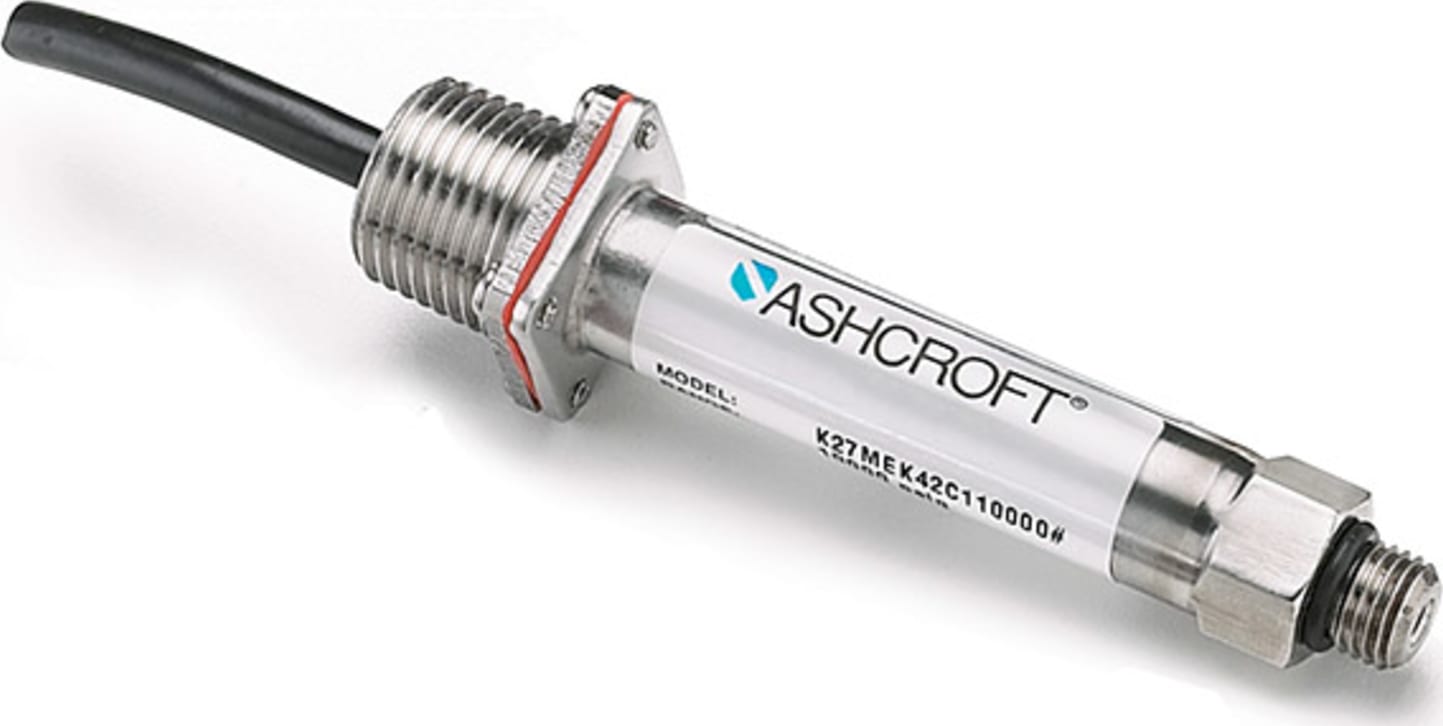

| PERFORMANCE SPECIFICATIONS |
| Accuracy Class (Span) |
±0.5%, ±1.0%
Includes non-linearity
(Terminal Point Method), hysteresis,
non-repeatability, zero offset
and span setting errors
Best Fit Straight Line (BFSL)
Non-linearity
±0.25%, ±0.4% |
| Interchangeability Durability |
±0.5%, ±1.0% |
| Durability |
10^8 cycles 20/80% span with negligible
performance change |
| Stability |
±0.5% Span/yr |
| ENVIRONMENTAL SPECIFICATIONS |
| Temperature Limits |
Storage: –54 to 121°C (–65 to +250°F)
Operating: –28 to 82°C (–20 to +180°F)
Comp. Range: –28 to 71°C (–20 to +160°F) |
| Thermal Coefficients: (68°F (20°C) ref.) % Span/°F |
| Accuracy Class |
0.5% |
1% |
ZERO
SPAN |
±0.028%
±0.028%
±0.014%(Optional)
±0.014%(Optional) |
±0.04%
±0.04% |
| Humidity: |
No performance effect at 95% relative
humidity-noncondensing |
| FUNCTIONAL SPECIFICATIONS |
| Standard |
Ranges (psi) |
Gauge |
Compound |
0/15*
0/30*
0/60*
0/100
0/150
0/200 |
0/300
0/500
0/750
0/1000
0/2000
0/3000 |
0/5000
0/7500*
0/10,000*
0/15,000*
0/20,000* |
vac./60*
vac./45*
vac./30*
vac./15*
vac./0* |
*1% accuracy ranges only.
Consult factory for nonstandard ranges\. |
| Overpressure Limits (F.S.) |
|
15-2000 |
3000-5000 |
7500-20,000 |
| Proof |
200% |
150% |
120% |
| Burst |
800% |
300% |
150% |
| Vibration Sweep |
Less than ±0.1%F.S. effect for 0-2000 Hz at 20 g’s in any axis |
| Shock |
Less than ±0.05% F.S. effect for 100 g's, 20ms shock in any axis |
| Response Time |
Less than 5 ms |
| Position Effect |
Less than 0.01% Span |
| ELECTRICAL SPECIFICATIONS |
| Output (Sensitivity) |
2mV/V
3mV/V
10mV/V
20mV/V |
| Power Requirements |
5-10 Vdc regulated, <3mA |
| Circuit to Case Insulation Resistance |
100 M ohms @ 50 Vdc |
| PHYSICAL SPECIFICATIONS |
| Enclosure |
NEMA 4X (NEMA 1 only if <500 psig if electrical termination is Bendix® or Hirschmann®) |
| Weight |
2 oz. (approx. w/o cable) |
| MATERIALS |
Case: 300 series stainless steel
Cable: No. 24 AWG, 36˝ PVC, shielded, vented,UL approved
Diaphragm: 17-4 PH stainless steel |
| Standard Process Connections: (316 stainless steel) |
1⁄8 NPT male or female
1⁄4 NPT male or female
1⁄4 SAE-J-514 male
1⁄4 AMINCO female required for pressures over
10,000 psi
Other connections available |
