| PERFORMANCE SPECIFICATIONS |
| |

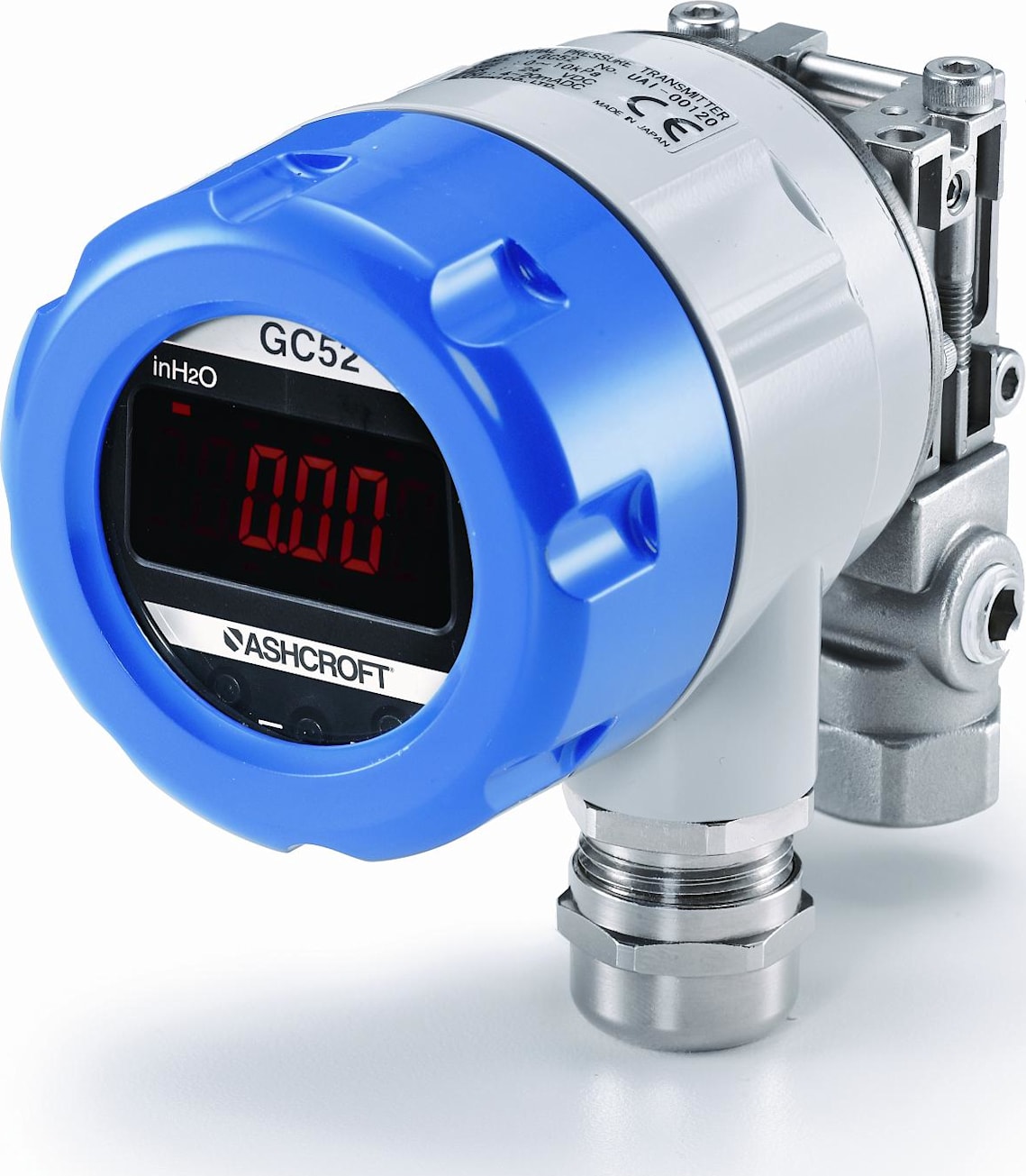

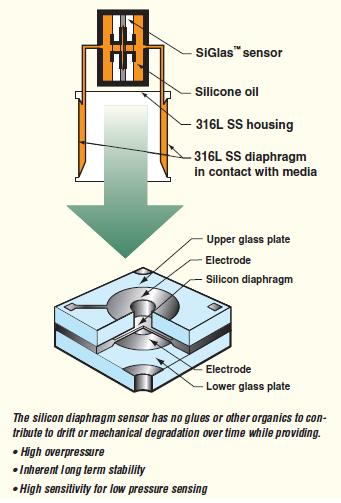

GC52 Wet/Wet DP Xmitter |
| Accuracy |
±0.50% FS (URL)
(Accuracy includes the effects of linearity,
hysteresis, and repeatability) |
| Reference Condition |
23°C ±2° (73°F) |
| Stability |
±0.25% FS/year |
| Response Time |
100 msec |
| Output Resolution |
0.1% FS (URL) |
| Display |
Type: 4 digit, 10mm LCD with LED backlight
Accuracy: ± 0.25% FS (URL) + last digit |
| Ranges |
Standard Ranges (Bi-Directional, Inches W.C.):
±4, ±8, ±20, ±40, ±80, ±200
Standard Ranges (Uni-Directional, Inches W.C.):
0-4, 8, 20, 40, 80, 200, 400 |
| ENVIRONMENTAL SPECIFICATIONS |
| Temperature Limits |
Storage: –15 to 65°C (5 to 150°F)
Operating: –10 to 60°C (14 to 140°F)
Compensated: –10 to 60°C (14 to 140°F) |
| Temperature Effects (–10 to 60°C) |
±0.03% FS/C° (from reference, 23°C (73°F) |
| FUNCTIONAL SPECIFICATIONS |
| Overpressure (F.S.) |
Static (Line) Pressure
| RANGE |
Proof |
Burst |
| All |
300 psi |
800 psi |
Static (Line) Pressure EffectRS
| RANGE |
Effect |
| 20 inW.C., ±8 inW.C. |
±0.3% FS /100psi |
| 8 inW.C., ±4 inW.C. |
±0.7% FS /100psi |
| 4 inW.C. |
±1.5% FS /100psi |
Single Side (Differential) Limits
| RANGE |
Proof |
Burst |
| 8 inW.C., ±4 inW.C. |
30 psid |
130 psid |
| 20 inW.C., ±8 inW.C. |
100 psid |
130 psid |
|
| Vibration |
5g’s 150Hz |
| Shock |
10g’s 16ms |
| ELECTRICAL SPECIFICATIONS |
| Output Signal |
4-20mA (2 Wire) |
| Supply Voltage |
12-32Vdc Loop Power |
Rangeablility / Adjustment
(Accuracy and output resolution based upon
full scale (URL) value)
|
Zero –10% to +110% FS
Span –10% to +110% FS
|
| Insulation Resistance |
50Vdc (>100Mohms) |
| CE Compliance |
EMC Directive 2004/108/EC
• IEC/EN 61326-1: 2006 (EMI Class A/ EMS Table 2)
• IEC/EN 61326-2-3: 2006 (Annex BB (Pressure Transducer)) |
| MECHANICAL SPECIFICATIONS |
| Pressure Connection |
1⁄4 inch Female NPT |
| Enclosure Material |
Epoxy coated aluminum |
| Enclosure Rating |
NEMA 4X / IP65 |
| Electrical Connection (Options) |
1/2 inch Female NPT conduit or
Cable Gland (Diameters 0.46 to 0.47 inch) |
| Weight |
1 lb |
| Mounting |
Mounting Bracket |
| Media |
Fluids and gases compatible with 316SS, Viton and Alumina Ceramic |
