| PRODUCT SPECIFICATIONS |
| Analog Output (1- 5Vdc) |
Accuracy: ± 1.5% FS (accuracy includes effects of linearity, hysteresis and repeatability)
Response time: 50msec
Output resolution: 25mV
Analog scaling: User may configure analog output scaling to any range within full scale of sensor range |
| Pressure Switch Output |
Type: NPN or PNP open collector up to 30Vdc/80ma
Setting Accuacy: ± 1.5% F.S.
Number of contacts: 2
Time delay: 5 msec –2.0 sec (by user)
Hysteresis: Variable (by user)
Switch setting: User may adjust switch actuation and deadband to any points within full scale sensor range |
| Display |
Type: 31⁄2 digit, 10mm LED
Accuracy: ±1.5% FS + last digit
Display setting: User may re-configure display scaling, set to capture MIN or MAX value, and adjust display update rate. |
| Inches of Water Column (˝ W.C.) Ranges: Standard Ranges (Gauge) |
0 to 0.25˝ W.C., 0.50˝ W.C., 1.0˝ W.C., 2.5˝ W.C., 5.0˝ W.C., 10˝ W.C., 25˝ W.C. |
| Standard Ranges (Compound) |
±0.25˝ W.C., ±0.50˝ W.C., ±1.0˝ W.C., ±2.5˝ W.C., ±5.0˝ W.C., ±10˝ W.C., ±25˝ W.C. |
| ENVIRONMENTAL SPECIFICATIONS |
| Temperature Limits |
Storage: –22 to 140°F (–30 to 60°C)
Operating: –4 to 140°F (–20 to 60°C)
Compensated: 14 to 122°F (–10 to 50°C) |
| Temperature Effects |
Zero/Span: (from 73°F/23°C reference temperature)
±0.09%/°F (±0.15%/°C) ±2.5˝ W.C., 0/2.5˝ W.C. and below
±0.06%/°F (±0.10%/°C) ±5.0˝ W.C., 0/5.0˝ W.C. and above |
| Humidity |
0-85% RH (Non-Condensing) |
| FUNCTIONAL SPECIFICATIONS |
Proof pressure: 7.5psid (50kPa)
Burst pressure: 25psig (170kPa)
Max static (line) pressure: 7.5psi (50kPa)
CE Compliance: EN61326-1 2006, EN61326-2-3 2006 |
| ELECTRICAL SPECIFICATIONS |
| Power Supply Requirements |
Supply voltage: 11-27Vdc
Current consumption: 30mA (max) |
| Switch Contacts |
(2) NPN or PNP open collector outputs
NPN Type: 30Vdc / 80mA (max)
PNP Type: voltage drop 1Vdc (max)/80mA (max) |

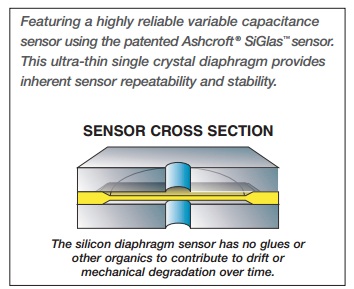

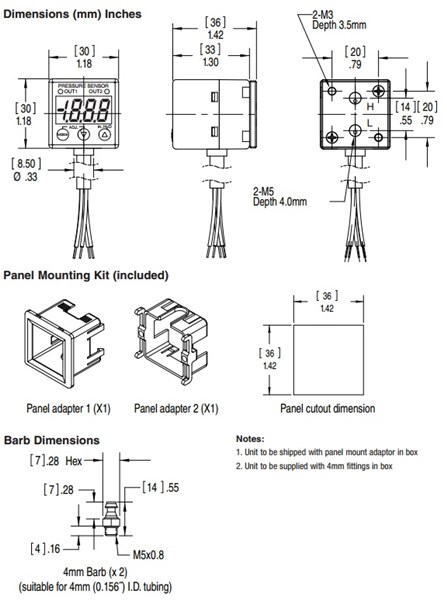

| MECHANICAL SPECIFICATIONS |
| Pressure Connection |
4mm barb |
| Enclosure |
ABS, polycarbonate, aluminum |
| Rating |
IP40 |
| Electrical Connection |
6ft (2m) cable pigtail |
| Weight |
Approx. 75 grams |

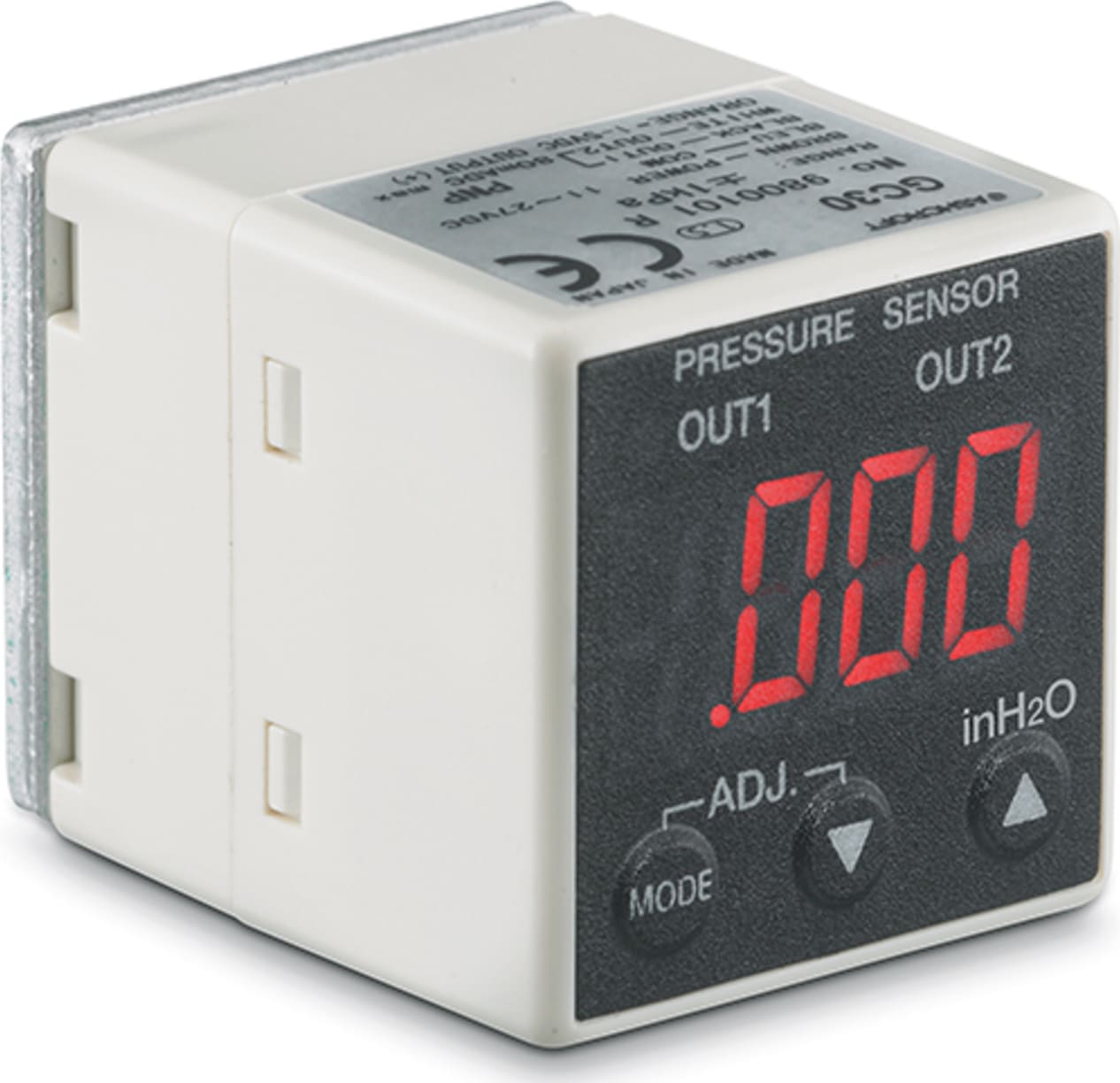

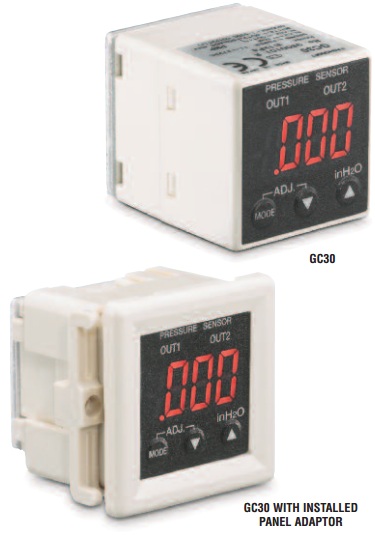

| Mounting |
Panel mounting bracket included |
| Media |
Clean, dry air/gases compatible with Aluminum, ABS, Ceramic, Silicon, and Silicone RTV |
