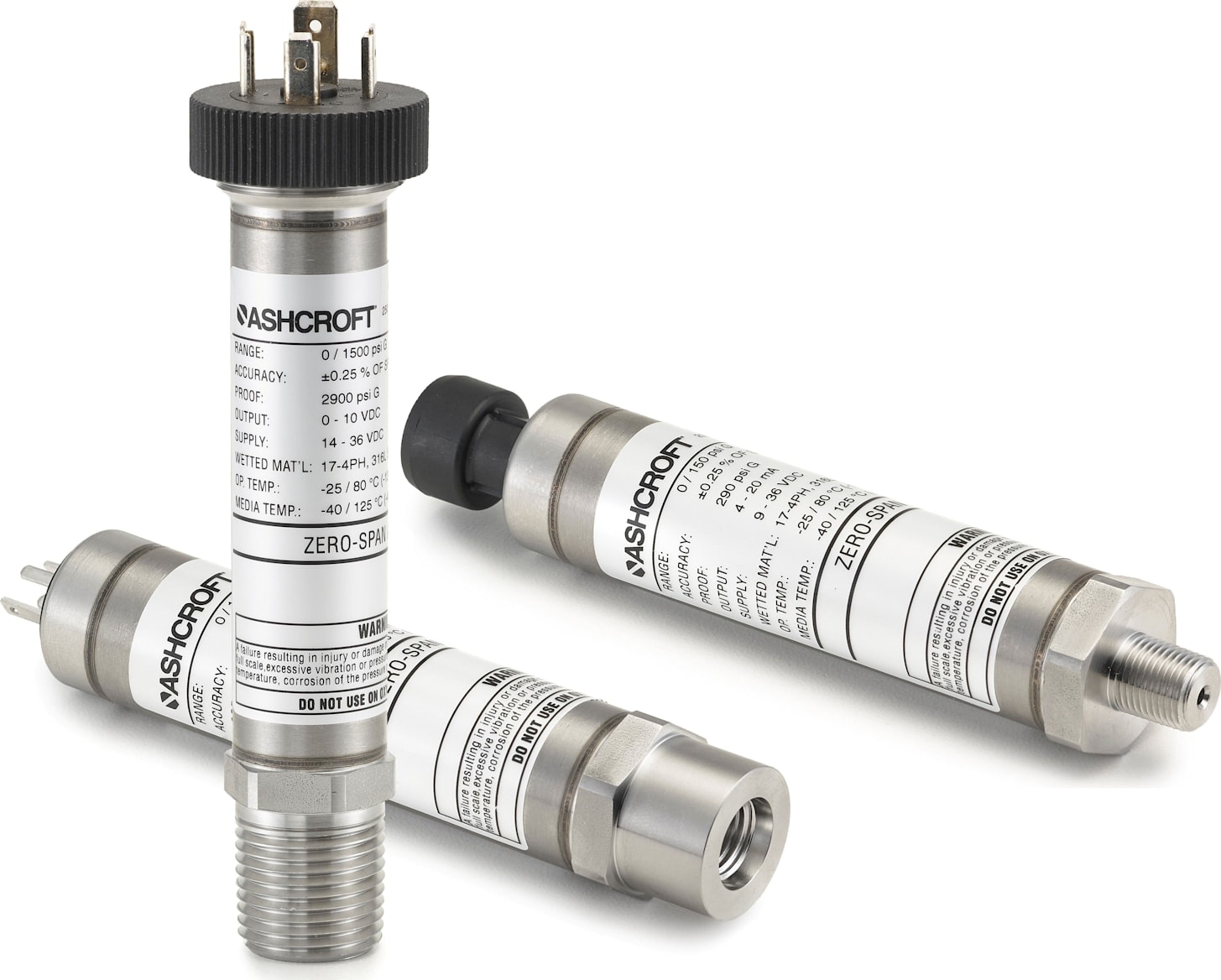

Ashcroft E2G General Industrial Pressure Transducers / Transmitters

Name: Ashcroft E2G General Industrial Pressure Transducers / Transmitters
Brand: Ashcroft
SKU: AshcroftE2G
Price: 295.75 USD
Availability: InStock

0 reviews | Model: Ashcroft E2G

Compare

E2G General Industrial Pressure Transducer / Transmitter

E2G is temporarily not available due to global semiconductor shortage. Consider instead models K2 or A2
Highly configurable - broad selection of pressure ranges, output signals, pressure connections and electrical terminations
Accuracy: ± 0.25%, ±0.50%, or ±1.00% span
Pressure Ranges: Vacuum to 20,000 psi
Housing: NEMA 4X IP65 optional IP67
Output signal: current or voltage
Scheduled to replace the popular K1
Diaphragm material: 316L, 17-4H or A286 stainless steel
Process Connection: 316L stainless steel

View Product Details

From: $320.81 - $638.01

In Stock:

Customize the item below to add to cart.

Non-Cancellable / Non-Returnable

Customize Your Product

Part Number: E2G

Price: $295.75

ADD TO CART

Add to Quote

Items in This Series



Product	Ashcroft E2G E2G General Industrial Pressure Transducer / Transmitter	Ashcroft K1 K1 Pressure Transducer / Transmitter	Ashcroft K2 K2 Pressure Transducer with mV/V Output	Ashcroft KX KX Flush Mount Pressure Transducer	Ashcroft KS KS Sanitary Transducer / Transmitter	Ashcroft K8 K8 mV/V Pressure Transducer
Price
In Stock
Type (Pressure)	Absolute, Compound (Vacuum to Gauge), Gauge, Vacuum	Compound (Vacuum to Gauge), Gauge	Compound (Vacuum to Gauge), Gauge, Vacuum	Gauge	Vacuum	Gauge
Display (Xmitters)	No	No	No	No	No	No
Maximum Pressure	20000 psi	20000 psi	20000 psi	5000 psi	1000 psi	20000 psi
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Ashcroft E2G

E2G is temporarily not available due to global semiconductor shortage. Consider instead models K2 or A2
Ranges vac through 20,000 psi
IP66/67 Ingress rating
Wide selection of electrical and process connections available
Customizable configurations
External magnetic offset and span adjustment

General Industrial Pressure Transducers / Transmitters

The Ashcroft E2G general industrial pressure transducer is the optimal choice for a rugged, precise and repeatable solution for measurement requirements that are needed on a wide array of applications. It's designed with 316L stainless steel housing and is available with a wide selection of electrical terminations, process connections and analog outputs, to accommodate nearly any customized application.

Typical Uses

Off-Road equipment
Construction machinery
HVAC/Refrigeration
Compressor control
Pump monitoring
Agricultural equipment
Diagnostic kits
Engine monitoring
Process automation & controls
Hydraulic & pneumatic sensing

Performance Specifications
Reference Temperature	21°C ±2°C
Static Accuracy	±0.25% of span, ±0.50% of span, ±1.0% of span, (0-1.5# Range only available in ±0.5% and 1.0% accuracy) Terminal Point Method includes: hysteresis, linearity, repeatability, offset and span
Stability	±0.25% year at reference conditions
Environmental Specifications
Thermal Coefficients	Offset: ±0.009% /°C from -40°C to 125°C Span: ±0.009% /°C from -40°C to 125°C
Temperature Limits	Storage: -58°F to 257°F (-50°C to 125°C) Operating: -40°F to 257°F (-40°C to 125°C) Media: -40°F to 257°F (-40°C to 125°C)
Humidity	0-100% (non-condensing)
Fuctional Specifications
Response Time (Output)	4 ms
Gauge/Compound Pressure Ranges	VAC to 20,000 psig
Shock	80g, 6 ms, Haversine
Vibration	Random: 10g RMS 20-2000 Hz
Absolute Pressure Ranges	0 to 500 psia
Electrical Specifications
Circuit Protection	Reverse polarity protected
Output Signal	Supply Voltage: (unregulated)
	Min.	Max:
0-5 Vdc (3 Wire) 1-5 Vdc (3 Wire) 1-6 Vdc (3 Wire) 0-10 Vdc (3 Wire) 1-11 Vdc (3 Wire) 0.1-5 Vdc (3 Wire) 0.1-10 Vdc (3 Wire) 0.5-4.5 Vdc (3 Wire) 4-20 mA (2 Wire) 20-4 mA (2 Wire)	9 Vdc 9 Vdc 9 Vdc 14 Vdc 14 Vdc 9 Vdc 14 Vdc 9 Vdc 9 Vdc 9 Vdc	36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc 36 Vdc
Adjustability	±5% of span non-interactive offset & span
Supply Current	<8 mA (Vout)
Curent Source/Sink for Voltage Output	1 mA (source)/ 0.1 mA (sink) MAX.
Withstand/Breakdown	100 Vdc/Vac, optional 500 Vdc/Vac
Physical Specifications
Ingress Rating	IP66 (NEMA 4X) (STD.) IP67 (IP69K Consult Factory)
Wetted Material
Diaphragm	Sensor: A B C D	Material: 17-4PH Stainless steel 316L Stainless steel 316L Stainless steel, liquid isolated A286
Process Connection	316L Stainless steel
Non-Wetted Material
Housing	316L Stainless steel
Emc Testing
EMC	Directive 2014/30/EU, and EN61326-1, EN61326-2-3 (Industrial Env.)
Immunity	61000-4-2 (ESD) 61000-4-3 (Radiated RF) 61000-4-4 (EFT/Burst) 61000-4-5 (Surge) 61000-4-6 (Conducted RF) 61000-4-8 (Line Freq. Magnetic)	±4kV/±8kV (Contact/Air) 10 V/m to 1GHZ, 3 V/m to 2GHz, 1 V/m to 2.7GHz ±1kV (5/50ns, 5kHz) ±1kV, Earth to Shield over all I/O lines 3V/ (0.15 to 80MHz) 30A/m
Emissions	EN 55011 (CISPR 11) Class A, Group 1 & FCC (47 CFR 15)

Process / Calibration/Pressure Transmitters Template
Type (Pressure)	Absolute, Compound (Vacuum to Gauge), Gauge, Vacuum
Display (Xmitters)	No
Maximum Pressure	20000 psi
Enclosure Type (Press Xmitter)	Compact (cigar type), Weatherproof
Process Connection	BSP (British Pipe Thread), NPT (National Pipe Thread), UNF (Unified Fine / SAE), VCR / VCO (Vacuum)
Electrical Connection (Press Xmitter)	Amphenol/Bendix/DIN/Hirschman, Conduit, Flying Leads / Pigtail
Output Types (Xmitter)	4-20 mA, DC Voltage
Wetted Part Material	Stainless Steel (SS)
Power (Transmitters)	DC
Test Equipment General Attributes
Unique Features	Vacuum to 20,000 psi pressure range
Warranty	1 YEARS
Interfaces I/O	Analog Output
Product Weight	1 LBS
Shipping Weight	1 LBS
ECCN Number	EAR99
Country of Origin	United States
