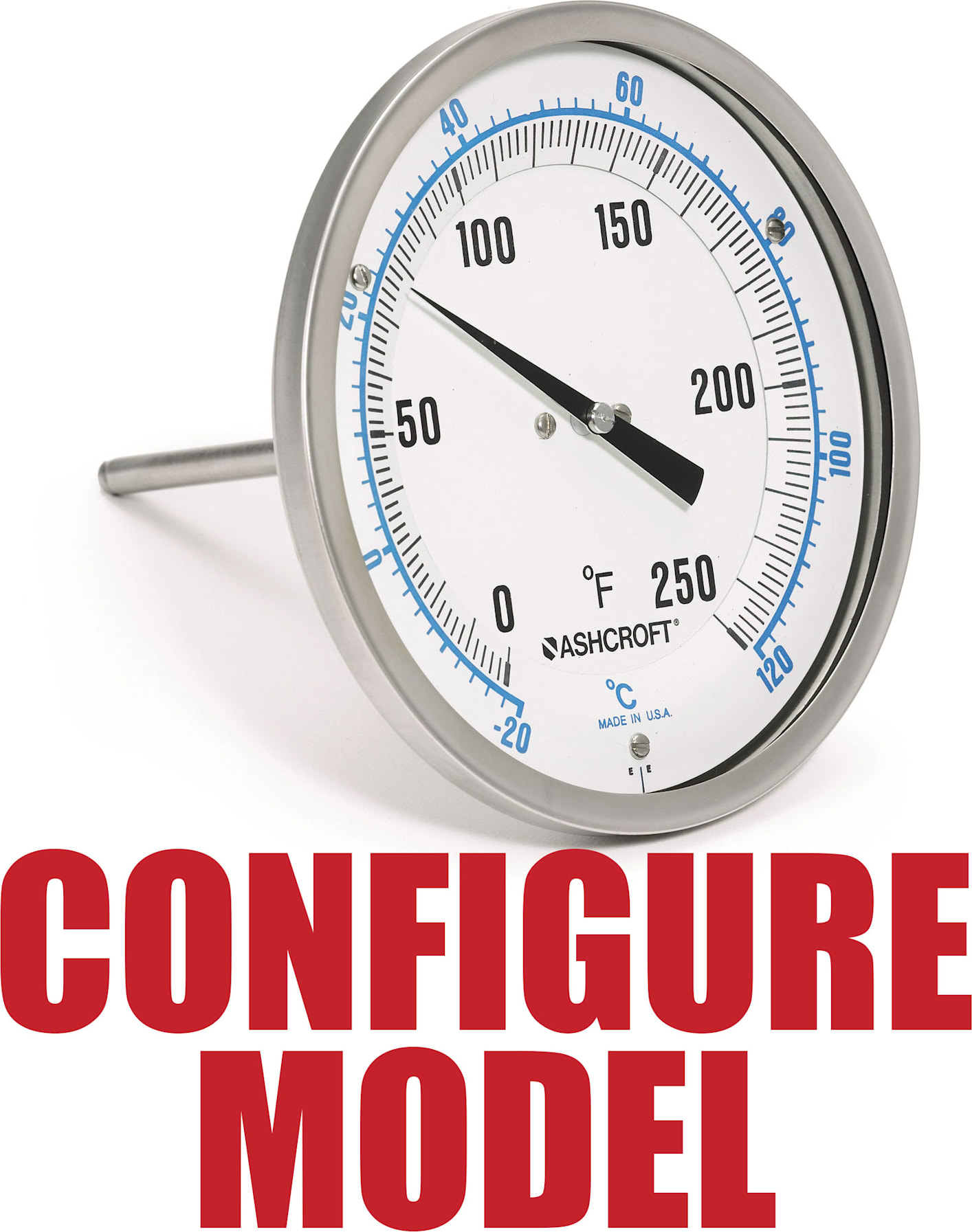

Ashcroft EL Bimetal Liquid Filled Thermometers, 5 inch Dial Size, ±1%, Configure Model: Temperature Ranges from –40/160°F to 50/550°F, –20/120°C to 0/300°C, Stem Lengths: 2-1 / 2 to 36 inch, Rear Connection

Name: Ashcroft EL Bimetal Liquid Filled Thermometers, 5 inch Dial Size, ±1%, Configure Model: Temperature Ranges from –40/160°F to 50/550°F, –20/120°C to 0/300°C, Stem Lengths: 2-1 / 2 to 36 inch, Rear Connection
Brand: Ashcroft
SKU: Ashcroft50EL60R
Price: 114.28 USD
Availability: InStock

0 reviews | Model: Ashcroft 50EL60R

Compare

Ashcroft EL Bimetal Liquid Filled Thermometer, 5 inch Dial Size, 1/2 inch NPT Connection, Rear Connection Location

Robust, hermetically sealed case. Silicone liquid fill
Dial size: 5 inch. Connection: 1/2 inch NPT
Rear Connection
External adjustment allows quick, limited span adjustments; reduces maintenance and recalibration costs
Maxivision® dial for easy readability and parallax elimination
Accuracy: ±1% full scale ASME B40.200 (B40.3 Grade A)
NEMA 4X / IP66 Enclosure

View Product Details

From: $114.28 - $424.72

In Stock:

Customize the item below to add to cart.

Non-Cancellable / Non-Returnable

Customize Your Product

Part Number: 50EL60R

Price: $114.28

ADD TO CART

Add to Quote

Items in This Series



Product	Ashcroft 50EL60R Ashcroft EL Bimetal Liquid Filled Thermometer, 5 inch Dial Size, 1/2 inch ...	Ashcroft 50EL42E Ashcroft EL Bimetal Liquid Filled Thermometer, 5 inch Dial Size, 1/2 inch ...	Ashcroft 50EL60E Ashcroft EL Bimetal Liquid Filled Thermometer, 5 inch Dial Size, 1/2 inch ...	Ashcroft 50EL EL Bimetal Liquid Filled Thermometer, 5-inch Dial Size	Ashcroft 30EL60 EL Bimetal Liquid Filled Thermometer, 3 inch Dial Size, 1/2 inch NPT Conne ...
Price
In Stock
Type (Contact Thermometers)	Analog	Analog	Analog	Analog	Analog
Number of Probe Inputs/Channels	1	1	1	1	1
Accuracy	±1% full scale ASME B40.200 (B40.3 Grade A)	±1% full scale ASME B40.200 (B40.3 Grade A)	±1% full scale ASME B40.200 (B40.3 Grade A)	±1% full scale ASME B40.200 (B40.3 Grade A)	±1% full scale ASME B40.200 (B40.3 Grade A)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Ashcroft EL Bimetal Thermometer

The Ashcroft® EL bimetallic thermometer provides high quality and performance. An ideal choice for accurate temperature measurement when vibration is present.

Ashcroft_EL_Bimetal_Dimensions

1. Figures in parenthesis ( ) are in millimeters. All other dimensions are in inches.
2. Standard “S” dimensions are 2 1⁄2, 4, 6, 9, 12, 15, 18 and 24 inches. Standard stem diameter is 1⁄4 inch.
3. Add 1 oz. for every 2 inches of stem length.

The EL liquid fill bimetallic thermometer is ideal where consistent, reliable temperature measurement is essential:

Process Market:

Offshore Oil Rigs
Chemical and Wastewater Pressure Control
Pulp and Paper
Refineries
Power

Industrial Market:

General Industrial
HVAC
Equipment Skids

Medical and Life Sciences:

Pharmaceutical / Biotech
Food and Beverage

Ashcroft EL Bimetal Thermometer Specifications

Dial Sizes	5 inch
Stem Length	2 1⁄2˝-24˝⁽¹⁾
Case & Stem	304 stainless steel, hermetically sealed
Stem Dia	.250˝
Window	Durable polycarbonate window
Dial	Maxivision®, black figures on white background
Pointer	Black
Connection	1⁄2 NPT
Connection Location	Rear
Ranges	–40/160°F -50/550°F –20/120°C -0/300°C
Options	Code Description C4 Individual calibration cert. XCS Dual scale XDM Dial marking XNH Stainless steel tag XNN Paper tag X3B 3⁄8˝ stem dia. with 1⁄2 NPT X02 1⁄4 NPT when 1⁄2 NPT is standard⁽³⁾ XYW(4) 316 SS housing⁽⁴⁾and stem

⁽¹⁾ Special or longer length available, consult factory
⁽²⁾ Everyangle™ NA on 3˝ dial
⁽³⁾ Only available on rear connection
⁽⁴⁾ Only available on 5˝ Everyangle™ with 60 connection

Thermowells must be used on all pressure or velocity applications, to protect the stem of thermometer from corrosion and physical damage, and to facilitate removal of the thermometer without disturbing the process. Maximum ambient temperature is 150°F (65°C).

Ashcroft_EL_Bimetal_Ranges

Ashcroft_EL_Bimetal_Ordering_Information

Tech Specs

Thermometers/Contact Thermometers Template
Type (Contact Thermometers)	Analog
Number of Probe Inputs/Channels	1
Accuracy	±1% full scale ASME B40.200 (B40.3 Grade A)
Test Equipment General Attributes
Unique Features	Robust, hermetically sealed case External adjustment allows quick, limited span adjustments; reduces maintenance and recalibration costs Maxivision® dial for easy readability and parallax elimination Everyangle™ provides almost 360-degree dial positioning
Warranty	5 YEARS Warranty Limited
Safety Approval	RoHS
IP Rating	IP66
ECCN Number	EAR99
Country of Origin	United States
