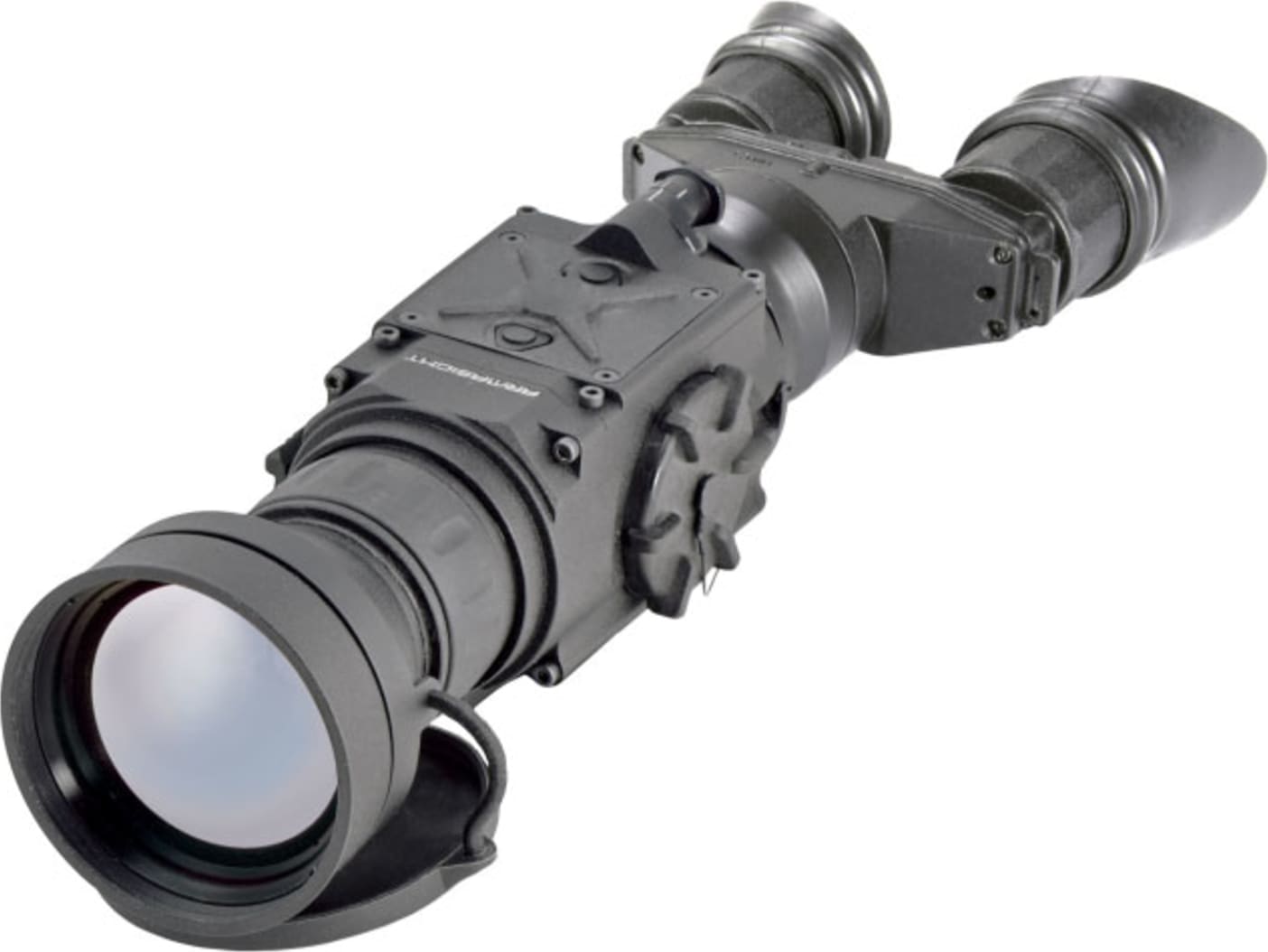

Armasight Helios 640-2 60Hz 3-24x75 Thermal Imaging Bi-Ocular.

The Armasight Helios HD is a family of Thermal Imaging bi-oculars with professional 75mm and 100mm Germanium (Ge) objective lenses. The bi-ocular design is better for sustained viewing periods and improved depth perception. The Helios HD product line is based on the latest FLIR Tau 2 VOx microbolometer core technology, and includes a variety of different models, each optimizing performance, price, and state-of-the-art capabilities for a variety of uses and missions. The Helios HD is a solid-state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions.

Helios HD Thermal Imaging bi-oculars are characterized by their simple but intuitive controls, functions, and features that are layered among direct button adjustments, direct combination button functions, and electronic menu selections. The Helios HD has the ability to record imagery and is equipped with video-out capabilities.

All Armasight thermal imagers are based on FLIR Tau 2.7.2 or later cameras that allow to improve overall image quality in a wide range of dynamic thermal environments, the imagers has employed special user-adjustable imaging tools that include:

• Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
• Second Generation Digital Detail Enhancement (DDE) –  a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
• Smart Scene Optimization (SSO) –  a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
• Information Based Histogram Equalization (IBHEQ) – a “Sky/Sea” enhancement – information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.
• User Controlled Manual Non Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Armasight thermal imagers allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
• Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Zeus models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.
