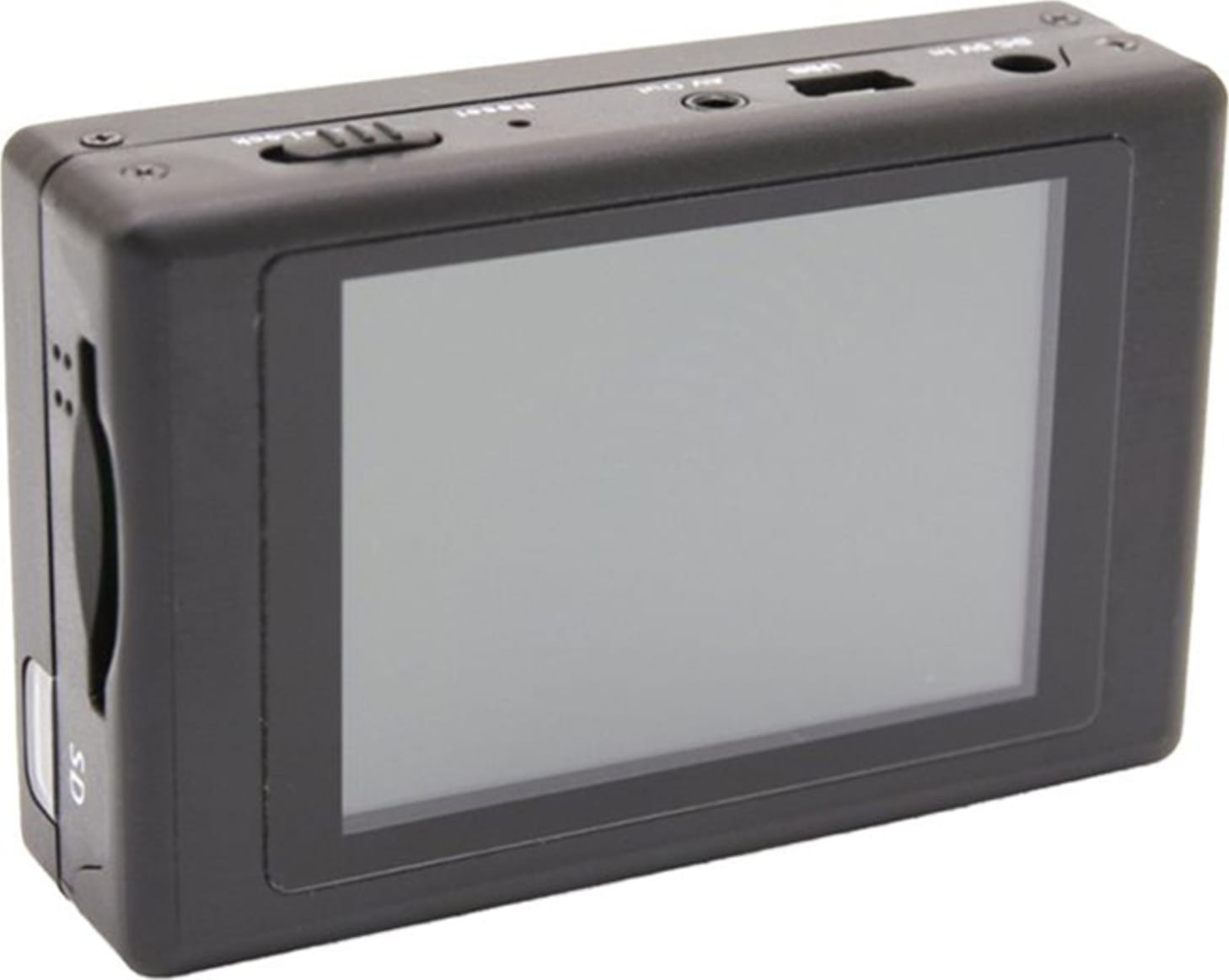

High Definition Digital Recorder

• Built-in 2.5" TFT display
• 3 built-in resolution options (NTSC 720x480, PAL 720x576, and VGA 640x480)
• 15 fps and 30 fps frame rates
• Motion detection recording functionality
• Video IN/OUT directly connect with camera, TV, monitor
• Low power consumption
• Storage type: hard disk and SD card(FAT 32 ,support over 32G)

The Armasight HD DVR is a high-performance, high-definition digital video recorder (DVR). It has an easy to use main menu structure consisting of three sub-menus including Recorder Setting, System Setting, and even Playback. It has three built-in resolution options to choose from including NTSC 720x480, PAL 720x576, and VGA 640x480. It also has a 15 fps and a 30fps setting. Choose the 30fps frame rate for the best video quality. The HD DVR includes powerup recording functionality as well as motion detection and manual recording options. To ensure proper video recording, you must format your SD card(not included) in the HD DVR. Failure to format the SD card will cause dropped frames, missing audio, video, and corrupt files.

The HD DVR is lightweight but durable and robust. the DVR has a 1/4”-20 thread that allows you to mount it anywhere.


1. Power On/Off
2. Charge Led
3. Internal Microphone
4. AV Input/DC Out jack
5. Low Power LED
6. Record / Stop Button
7. Power On/Record LED
8. DC5V In Jack

9. USB Port
10. AV Out and Remote Trigger Switch Jack
11. Reset Button
12. Lock Switch
13. Internal Speaker
14. SD Socket
15. IR Sensor

16. Down Button
17. Up Button
18. Enter Button
19. Esc Button(OSD OFF)
20. Menu Button
