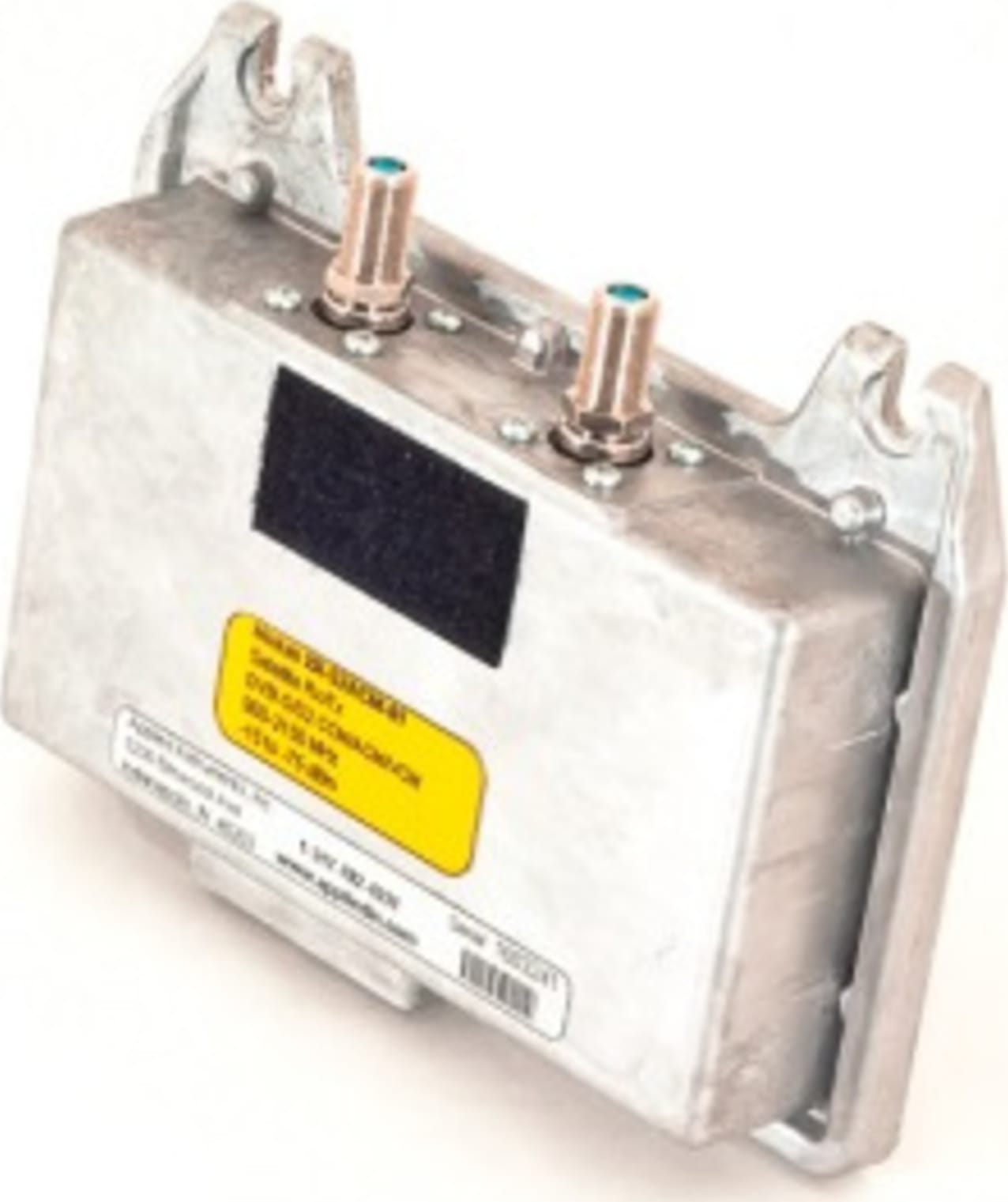

Applied XR-S2ACM-01 - Satellite Meter Module

Name: Applied XR-S2ACM-01 - Satellite Meter Module
Brand: Applied Instruments
SKU: AppliedXR-S2ACM-01
Price: 355.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Model: Applied Instruments XR-S2ACM-01

Compare

Satellite Meter Module 900-2150 MHz (VSAT / Broadcast TVRO / Intl. DTH) for XR3

Satellite Meter Module (VSAT / Broadcast TVRO / DTH)
Compatible with XR-3 Modular Test Instrument
Satellite ID by "align-to-lock" or "automatic scan“
Friendly user interface
ID multi-lock algorithm eliminates false positives
Powers LNBs and multi-switches
Use for L, C, X, Ku, or Ka band applications
High sensitivity assures alignment optimization
Geo-sensitive "Field Guide" software database stores all compatible satellites and transponders per global region
Program and store up to 256 custom transponders
Controls multi-LNBs/switches with 22kHz DiSEqC tone
Manually tune to custom transponders using front panel keypad
Audible tone for signal lock or peak
Store measurements for Proof-of-performance reporting
"Limit Scan" Pass/Fail for key transponders
Displays antenna settings (AZ / EL / Skew) based on user's postal code or latitude and longitude coordinates
Field replaceable type F barrel connectors
Fast system boot-up time in less than 5 seconds

View Product Details

Your Price: $355.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series


Product	Applied Instruments XR-S2ACM-01 Satellite Meter Module 900-2150 MHz (VSAT / Broadcast TVRO ...	Applied Instruments XR-TS2-01 Satellite Meter Module 250-2150 MHz (North American DBS / Br ...	Applied Instruments XR-CA-02 CATV Off-Air Signal Meter Module (Cable J.83B / UHF / VHF / D ...	Applied Instruments XR-S2XACM-02 Satellite Meter Module (VSAT / Broadcast TVRO / DTH) with ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Applied Instruments XR-S2ACM-01 Accessories

Choose a Category

Noise Generators

for the Applied Instruments XR-S2ACM-01

Applied Instruments NS-1 Portable Handheld Broadband White Gaussian Noise RF Test...

Catalog: NS-1

(3)

In Stock!

Add to Cart

Applied XR-S2ACM-01 - Satellite Meter Module

Satellite Meter Module (VSAT / Broadcast TVRO / DTH)
Compatible with XR-3 Modular Test Instrument
Satellite ID by "align-to-lock" or "automatic scan“
Friendly user interface
ID multi-lock algorithm eliminates false positives

The XR-3 VSAT module represents a new standard in satellite identification capability. Rather than loading a limited set of satellites or a large number of channel plans to select from, the XR-3 VSAT module holds all of the compatible satellite transponder information for the entire continent.

You just tell it where you are, and what type of system you are connected to, and the XR-3 accesses all compatible satellite transponders visible to that system. The basic operation becomes extremely simple:

Left arrow button - goes to next orbit east
Right arrow button - goes to next orbit west
Up arrow button - next higher transponder
Down arrow button - next lower transponder

Measurements

Demodulates DVB-S, DSS / DIRECTV Legacy, & DVB-S2 (CCM, ACM, & VCM) signals
Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
Signal Quality (IRD, C/N, Eb/No, or Es/No)
Pre-FEC & Post-FEC BER (Bit Error Rate)
PER (Packet Error Rate)
Voltage output of IRD / IDU (29V max)
Current draw of LNB
LNB frequency deviation (LNB LO drift estimate)
Symbol Rate error
Spectrum Screen (frequency on x-axis, amplitude on y- axis)
Constellation Screen (I and Q demodulator values)

Connections

ODU / LNB - connects to the LNB (or receiver side of a multi-switch)
IDU / IRD - connects to the IRD (receiver or modem) – NOT REQUIRED

ODU / LNB Connection
The ODU / LNB connector has two functions:

Supplies voltage to power the LNB
Sends commands to control multi-LNB head or external multi-switch
Receives RF signals coming from LNB output port or multi-switch output port

IDU/ IRD Connection
The IDU /IRD connector has two functions:

Measures voltage supplied by the IDU/ IRD
Allows voltage supplied by IDU / IRD to power the LNB extending the battery life of meter

However, the meter itself is always powered by its internal battery or by the external AC to DC switching power supply while connected to AC power.

Note: In order to prevent damage to the meter’s circuitry, do NOT input more than 30 volts to the XR-3’s TS2 module

Applied XR-S2ACM-01 Specifications
Frequency Range:	900-2150 MHz
Tuning Resolution:	4 kHz
Signal Level Range:	-75 to -15 dBm (+34 to +94 dBμV)
RF Level Accuracy:	+/- 2 dB typical, 3 dB max
Signal Lock Formats:	DVB-S (QPSK), DVB-S2 (QPSK, 8PSK, 16APSK, 32APSK, CCM, VCM, ACM), DSS / DIRECTV Legacy (QPSK)
Impedance:	75 Ohm
LNB Power:	13VDC for V/R, 18VDC for H/L 21VDC for DIRECTV SWiM LNBs, 29VDC
Switch Control:	22 kHz, DiSEqC
RF Connector:	F barrel, field replaceable
Warranty:	12 month limited
