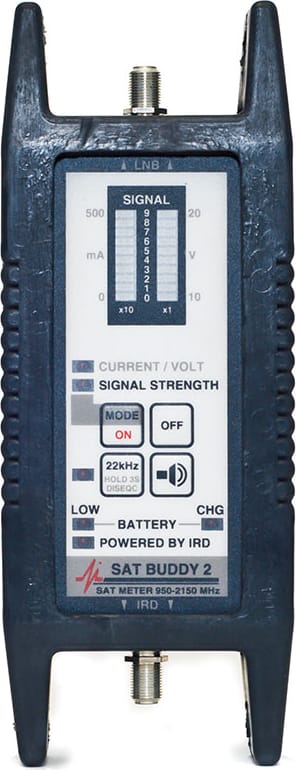

Applied SAT Buddy 2 Satellite Signal Meter

Name: Applied SAT Buddy 2 Satellite Signal Meter
Brand: Applied Instruments
SKU: AppliedSAT Buddy 2
Price: 199.00 USD
Availability: InStock

0 reviews | Model: Applied Instruments Sat Buddy 2

Compare

DBS Installer's Basic Satellite Peaking Meter w/22 kHz And DiSEqC Switch Control

Field replaceable connectors
22 kHz switch control (also DiSEqC™ standard)
Bright LED display, easy to read even in direct sunlight
Strong audible tone
Able to power LNB from internal battery or IRD
Rugged metal enclosure
Economical and easy to use
Includes: wall charger and car charger

View Product Details

List Price: $199.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Applied Instruments Sat Buddy 2

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Satellite Signal Meter (950-2150 MHz)

The Sat Buddy 2 measures relative RF signal strength when connected to a dish antenna. It's great for aligning a dish antenna to receive maximum signal strength, and for verifying signal presence within the in-house cabling network. The 22 kHz and DiSEqC™ switching capability allows the Sat Buddy to operate through many multi-switches. The Sat Buddy 2 is built with the same rugged weather-resistant metal enclosure as the Dual Buddy that will allow it to stand tough and give years of dependable service.

Measures:

Signal strength (RF energy 950 to 2150 MHz)
LNB current draw (mA)
Voltage supplied by the IRD set top box
Internal battery voltage

Frequency range	950 to 2150 MHz
Impedance	75Ω
Measurable input level	-48 to -8 dBm total power -60 to -20 dBm per transponder
Insertion loss	14 dB (950 to 1450 MHz) 22 dB (1450 to 2150 MHz)
Size (H x W x D)	6.5" x 2.7" x 1.1", 1.0 lbs (16.5cm) x (6.9cm) x (2.8cm), 455g
Temperature range	0°F to 125°F (-17°C to +50°C)
Connectors	Type F female (field replaceable)
Power	Uses IRD power when connected, otherwise uses internal battery. IRD voltage loss through the SAT Buddy is 1.3 V. Current consumed by the SAT Buddy is 90 mA.
LNB Power	Current limited at 475 mA.
Internal Battery Pack	Rechargeable 12 cell NiMH 300 mAh, 12-16 V nominal, automatic shutoff, 1.8 hours typical use per charge.
Battery Charge Time	±12 hours from wall charger
Wall Charger Output	12 VDC, 200 mA, center pin positive, 2.1mm I.D.
Signal Measure Mode	Signal Level Display: Bargraph LEDs left row x 10, right row x 1 Audible Tone: Dual beep rate with solid tone at peak
Current/Voltage Mode	LNB Current Draw: 0 to 500 mA (each LED segment is 50 mA) LNB Supply Voltage: 10 to 20 volts (each LED segment is 1V, above 9V)
Standard Accessories	Padded carrying case with belt clip Wall transformer for charging battery, 120V or 240V Automobile cigarette-lighter adapter battery charge

Tech Specs

Signal Level Meters - CATV / CCTV / Satellite/Satellite Signal Level Meter Template
Minimum Frequency Range	950 MHz
Maximum Frequency Range	2150 MHz
Battery Run Time	1.8 HR
Field Replacement F Connectors	Yes
Satellite Capability	Bell TV, DirecTV, Dish Network, WildBlue/Telesat
Measurements	IRD (voltage), LNB (current), Signal Level
Wild Blue Compatibiltiy	Yes
Zip Code Lookup for Spot Beam Placement	No
Ability to add new Satellites Manually	No
Database upgradeable via PC	No
Backlight	No
Spectrum Display	No
Digital Constellation	No
Test Equipment General Attributes
Unique Features	The Sat Buddy 2 satellite peaking meter displays relative RF signal strength. It is built tough with a metal enclosure and a rubber shock-absorbing case. The Sat Buddy 2 can output a 22kHz tone and DiSEqC tones for controlling LNBs, multi-LNBF systems, and external multi-switches.
Warranty	12 MONTHS (1 YEARS)
Warranty Details	The Applied Instruments Sat Buddy 2 satellite meter is warranted against defects in materials and workmanship for a period of twelve months. Applied Instruments agrees to repair or replace any assembly or component found to be defective under normal use during this period. Exposing the unit to moisture (i.e. rain), physical abuse, or opening the case to the unit will void the warranty. Our obligation under this warranty is limited solely to repairing the instrument proven to be defective within the scope of the warranty when returned to the factory. Transportation to the factory is to be prepaid by the customer. Authorization (RMA#) by Applied Instruments is required prior to shipment.
Product Weight	1.5 LBS
Product Height	1.1 IN
Product Length	6.5 IN
Product Width	2.7 IN
Shipping Weight	10 LBS
Data Logging	No
HTS/Schedule B Number	9030.40.00
ECCN Number	5B991
Power Supply Voltage	120V 50/60 Hz
Country of Origin	United States
Shipping Height	3 IN
Shipping Length	8 IN
Shipping Width	8 IN
