Applied Instruments XA-S2XACM-01 - Satellite Signal Level Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument

Name: Applied Instruments XA-S2XACM-01 - Satellite Signal Level Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument
Brand: Applied Instruments
SKU: AppliedXA-S2XACM-01
Price: 505.00 USD
Availability: InStock

0 reviews | Model: Applied Instruments XA-S2XACM-01

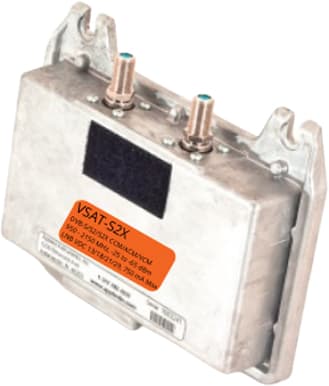

Applied Instruments XA-S2XACM-01 Main Image

Compare

Satellite Meter Module (VSAT / Broadcast TVRO / DTH) for RFSD-2XA Rack-Mount RF Signal Monitor Instrument (950-2150 MHz)

Image for illustrative purposes. The actual product may vary
Requires RFSD-2XA Rack-Mount RF Signal Monitor Instrument
Compatible with XR-3 Modular Test Instrument
Satellite ID by "align-to-lock" or "automatic scan“
ID multi-lock algorithm eliminates false positives
Powers LNBs and multi-switches
Use for L, C, X, Ku, or Ka band applications
High sensitivity assures alignment optimization
Geo-sensitive "Field Guide" software database stores all compatible satellites and transponders per global region

View Product Details

List Price: $505.00

In Stock:

View Payment Options

Recommended for you

Applied Instruments XA-S2XACM-01 - Satellite Signal Level Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument

Image for illustrative purposes. The actual product may vary
Requires RFSD-2XA Rack-Mount RF Signal Monitor Instrument
Compatible with XR-3 Modular Test Instrument
Satellite ID by "align-to-lock" or "automatic scan"
ID multi-lock algorithm eliminates false positives

Satellite signal level meter module for VSAT, Broadcast TVRO, & International DTH.

Measurements

Demodulates DVB-S, DSS / DIRECTV Legacy, DVB-S2 & DVB-S2X (CCM, ACM, & VCM) signals
Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
Signal Quality (IRD, C/N, Eb/No, or Es/No)
Pre-FEC & Post-FEC BER (Bit Error Rate)
PER (Packet Error Rate)
Voltage output of IRD / IDU (29V max)
Current draw of LNB
LNB frequency deviation (LNB LO drift estimate)
Symbol Rate error
Spectrum Screen (frequency on the x-axis, amplitude on the y-axis)
Constellation Screen (I and Q demodulator values)

Applied Instruments XA-S2XACM-01 Specifications
Frequency Range	950-2150 MHz
Tuning Resolution	4 kHz
Signal Level Range	-65 to -25 dBm (+44 to +84 dBμV)
RF Level Accuracy	+/- 2 dB typical, 3 dB max
Signal Lock Formats	DVB-S (QPSK), DVB-S2 & DVB-S2X (QPSK, 8PSK, 16APSK, 32APSK, CCM, VCM, ACM), DSS / DIRECTV Legacy (QPSK)
Impedance	75 Ohm
LNB Power	13VDC for V/R, 18VDC for H/L 21VDC for DIRECTV SWiM LNBs, 29VDC
Switch Control	22 kHz, DiSEqC
RF Connector	F barrel, field replaceable
Specifications are subject to change without notice.

Tech Specs

Signal Level Meters - CATV / CCTV / Satellite/Satellite Signal Level Meter Template
Minimum Frequency Range	950 MHz
Maximum Frequency Range	2150 MHz
Satellite Capability	DirecTV, Other
Measurements	Bit Error Rate, dB, IRD (voltage), LNB (current), LNB Frequency Deviation Estimate, Other, Signal Level
Signal Level Units of Measure	dBµV, dBm, dBmV
Max RF Signal Range	-25 dB
Min RF Signal Range	-65 dB
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	3.2 LBS
Shipping Weight	3.68 LBS
