Applied Instruments XA-CA-02 - CATV Off-Air Signal Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument

Name: Applied Instruments XA-CA-02 - CATV Off-Air Signal Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument
Brand: Applied Instruments
SKU: AppliedXA-CA-02
Price: 665.00 USD
Availability: InStock

0 reviews | Model: Applied Instruments XA-CA-02

Compare

CATV Off-Air Signal Meter Module (Cable J.83B / UHF / VHF) for RFSD-2XA Rack-Mount RF Signal Monitor Instrument (5- 1000 MHz)

Requires RFSD-2XA Rack-Mount RF Signal Monitor Instrument

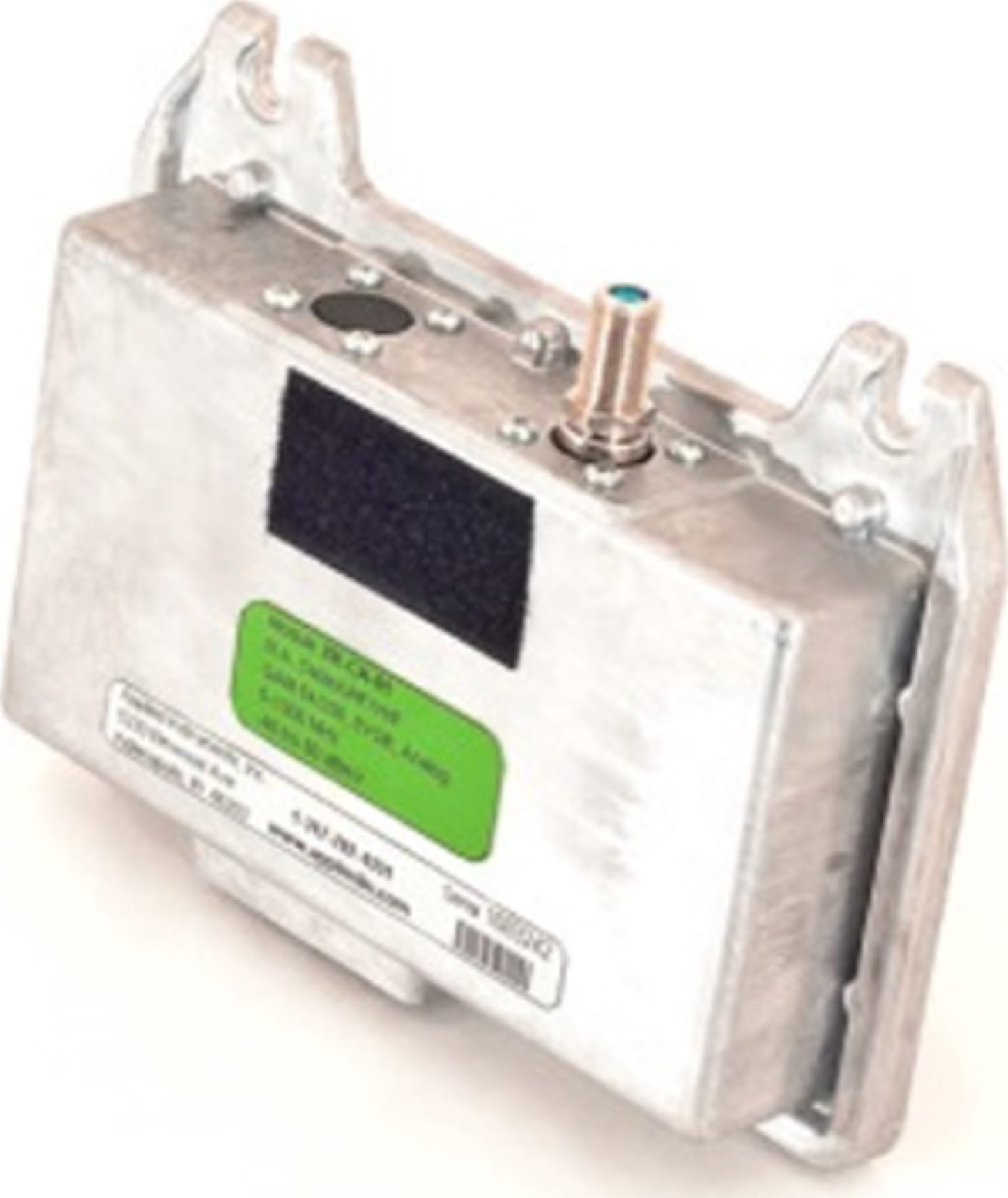

Image for illustrative purposes. The actual product may vary
Friendly user interface
Tune by frequency or tune by channel number
Field replaceable type F-female barrel connector
Fast system boot-up time in less than 5 seconds
Compatible with digital signals
Store measurements for Proof-of-Performance
Programmable Pass/Fail limit scan for all channels
A quick scan of all channels
Easily create new custom channel plans or use standard base plans
Constellation Screen (I and Q demodulator values)

View Product Details

List Price: $665.00

In Stock:

View Payment Options

Recommended for you

Applied Instruments XA-CA-02 - CATV Off-Air Signal Meter Module for RFSD-2XA Rack-Mount RF Signal Monitor Instrument

Requires RFSD-2XA Rack-Mount RF Signal Monitor Instrument
Image for illustrative purposes. The actual product may vary
Friendly user interface
Tune by frequency or tune by channel number
Field replaceable type F-female barrel connector

VHF/ UHF / Off-Air Features

Supplies Pre-Amp / LNA power
Simultaneously displays signal level and quality of multiple channels
Displays measurements for digital signals
High signal sensitivity assures Off-Air antenna alignment optimization
Manually tunes to custom channels
Audible tone for signal lock and peak

Measurements

Digital Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
Digital Signal Quality (MER & BER)
Locks on 8VSB (ATSC A/53) UHF digital Off-Air signals
Locks on 64QAM and 256QAM (ITU-T J.83, Annex B) CATV signals
Tilt
Current draw of off-air antenna preamp / LNA

MMDS Features

Powers frequency block downconverters

CATV Features

Compatible with digital CATV signals
Frequency range from 5 MHz to 1 GHz
Tilt measurement

Applied Instruments XA-CA-02 Specifications
Frequency Range	5-1000 MHz
Tuning Resolution	Standard channel spacing
Signal Level Range	-40 to +60 dBmV
RF Level Accuracy	+/- 1.5 dB typical
Compatible Digital Signal Lock Formats	8VSB (ATSC A/53)
Compatible Digital Signal Lock Formats	64QAM, 256QAM (ITU-T J.83, Annex B)
Nominal Impedance	75 Ohm
LNA/Pre-Amp Power	5,13,18 VDC
RF Connector	Type F-female barrel, field replaceable
Warranty	12 month limited

Signal Level Meters - CATV / CCTV / Satellite/Satellite Signal Level Meter Template
Minimum Frequency Range	5 MHz
Maximum Frequency Range	1000 MHz
Satellite Capability	Other
Measurements	dB, Other, Signal Level
Signal Level Units of Measure	dBµV, dBm, dBmV
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	3.2 LBS
Shipping Weight	3.68 LBS
