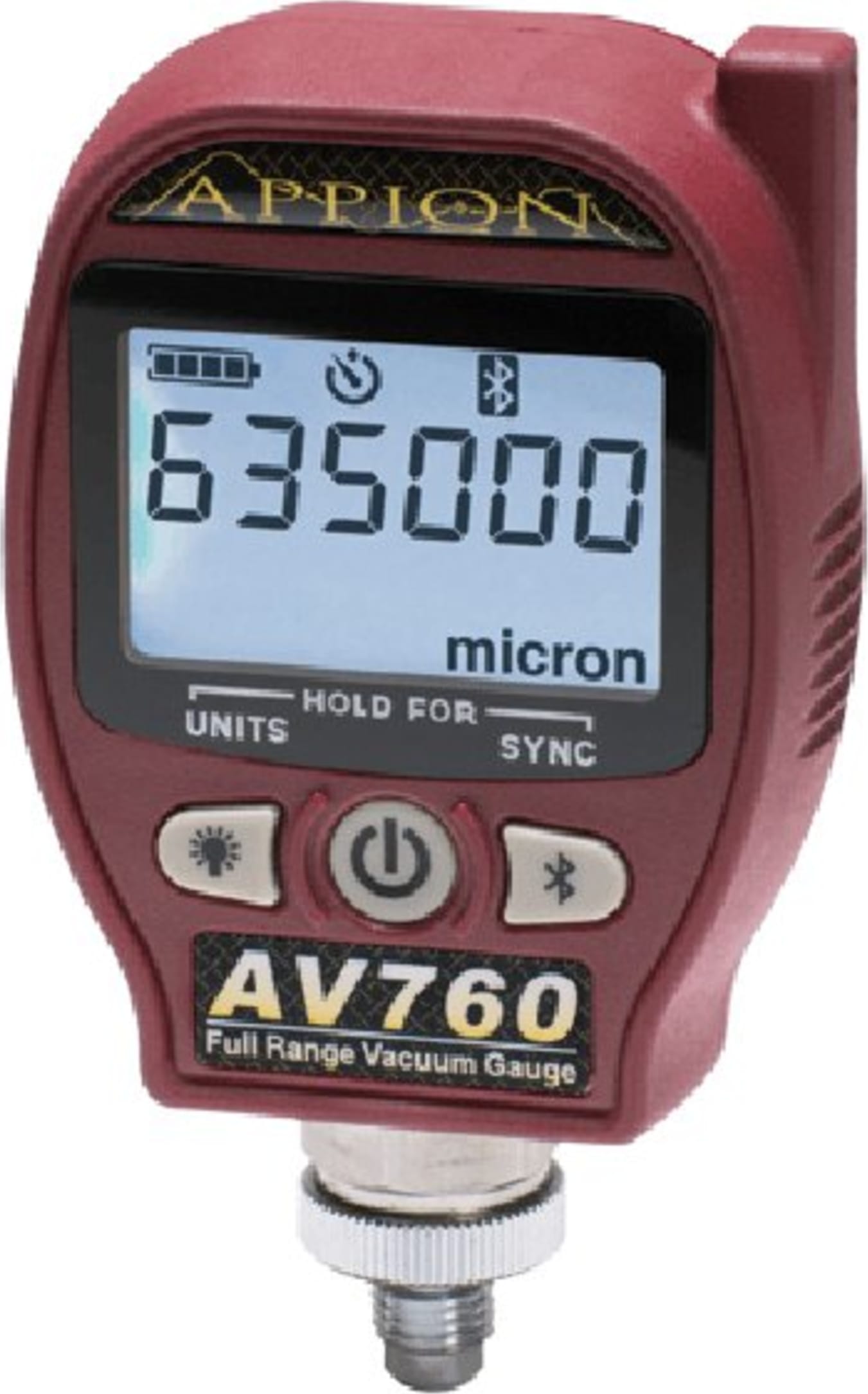

Appion AV760 - Wireless Vacuum Gauge

Name: Appion AV760 - Wireless Vacuum Gauge
Brand: Appion
SKU: AppionAV760
Price: 429.99 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | UPC: 818369010390 | Model: Appion AV760

Compare

Wireless Vacuum Gauge

Multiple simultaneous measurements to ensure a deep vacuum throughout the entire system
Filter & oil catch to keep sensors clean and maintain accurate measurement
Rubberized water-resistant and dust tight housing (IP65 Rated)
Full-Range response with accurate measurements from 760,000 Microns (atmosphere) to 1 Micron

View Product Details

List Price: $539.99

Your Price: $429.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Appion AV760 Accessories

Choose a Category

for the Appion AV760

Appion CTEE14 MegaSeal Low-Loss Charging T-Fitting, 1/4"

Catalog: CTEE14

(5)

In Stock!

Add to Cart

Appion MGABAS MegaFlow Basics 1/2in Hose Evacuation Kit - For 1/4in System Connections

Catalog: MGABAS

(8)

In Stock!

Add to Cart

Appion MGABRO MegaFlow Basics 1/2in Hose Evacuation Kit - For 5/16in System Connections

Catalog: MGABRO

(0)

In Stock!

Add to Cart

Appion MH120006EAK MegaFlow 1/2in Evacuation Hose - Black 6ft 3/8in FL to 1/4in FL

Catalog: MH120006EAK

(5)

In Stock!

Add to Cart

Appion SPDKIT-V MegaFlow Vacuum Speed Kit

Catalog: SPDKIT-V

(0)

In Stock!

Add to Cart

Appion KT2110-R Vacuum Gauge Oil Catch Filters - 10 pack plus 2 Fitting O-rings

Catalog: KT2110-R

(0)

In Stock!

Add to Cart

Appion TEZ8 Tez8, Two Stage Vacuum Pump 8cfm 115V

Catalog: TEZ8

(0)

In Stock!

Add to Cart

Appion CCT14 1/4 inch Core Control Tool

Catalog: CCT14

(0)

In Stock!

Add to Cart

Appion CCT516 5/16 inch Core Control Tool

Catalog: CCT516

(0)

In Stock!

Add to Cart

Appion MGAVCR MegaFlow Vacuum Rated Valve Core Removal Tool 5/16" System Connection

Catalog: MGAVCR

(7)

In Stock!

Add to Cart

Appion MGAVCT MegaFlow Vacuum Rated Valve Core Removal Tool 1/4" System Connection

Catalog: MGAVCT

(13)

In Stock!

Add to Cart

Appion AV760

Accurate measurement from 760,000 to 1 micron
NIST traceable accuracy with 10 point certification
Compatible with free ION HVAC app for wireless measurements

Wireless Vacuum Gauge

The AV760 Wireless Vacuum Gauge is a full range micron gauge, measuring from atmosphere to 1 micron. The full range measurement can help differentiate between contaminants left in a system and a leak during a "blank-off" test. The AV760 is the only micron gauge with NIST-traceable accuracy (±5%) and 10-point certification. The gauge is also surrounded by an IP65 rated case and is protected against positive pressure (up to 400psi). The filter and the oil catch help keep the sensors clean and maintain accurate measurements.

Wireless Gauge Features with the ION HVAC/R App

The ION HVAC/R App enables remote, real-time viewing and system analysis for appION Wireless Digital Gauges. Multiple, simultaneous remote readings are now possible! The app is easy to use and perfect for advanced system analysis on evolving, complex, high-efficiency systems.

The ION HVAC/R App features custom layout configurations, multiple alarms, Rate of Change calculations, live data logging and reporting, and more. More functionality, reduced bulk!

The ION HVAC/R App is available on the App Store for iPhone, iPad, and iPod Touch. The ION HVAC/R App for Android™ is available for download on Google Play.

Appion AV760 Specifications
Range	760,000 Microns to 1 Micron
Accuracy	+/-5% or 10 Microns (1 to 5k) +/-5% (5k to ATM)*
Resolution	1 Micron (1-499), 5(500-2k), 50(2k-5k), 250(5k-15k), 1k(15k-ATM)
Units	Microns, mTorr, kPa, mBar, in/Hg, psia
Max Overpressure	400 psi
Fitting	1/4" Male Flare
Included Adapters	1/4" F Flare to 1/4 F Flare Connector
Dimension	4.65in. x 2.75in. x 1.2in. (118mm x 70mm x 30mm)
Weight	6.9oz (196 grams)
Power	(3) AA Batteries
Battery Life	120 Hours (Continuous usage with radio turned off)
Operating Temp	0° - 140°F (-17.8° - 60°C)

Tech Specs

Test Equipment General Attributes
Product Weight	0.5 LBS
Product Height	1.2 IN
Product Length	4.65 IN
Product Width	2.75 IN
HTS/Schedule B Number	9026.20.8000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

No, a calibration certificate does not come included. If you require a calibration certificate, please inform our sales team.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Great product

5.0

Product appears to be a high quality instrument

Very good on Sep 24, 2023

Recommend to a Friend

Nice atmosphere-to-zero vacuum gauge

5.0

Purchased as affordable alternate/redundant vacuum measurement of laboratory grade zero atmosphere chambers. Our pumps are upscale analytical grade versions of HVAC pumps used as scrubber, coupled with 90,000-rpm turbo pumps to achieve near zero vacuum. Performed three; atmosphere-to-1 micron test cycles and gauge compared favorably with existing $3k instrumentation at most pause points until well under 50 micron. Error increased as pressure decreased and by 1 micron the gauge read 15, 18 and 22. Gauge did hold value when isolated so appears to have no measurable internal leaks, yet a little concerned about amount of std dev at lower values. Certainly not a show stopper considering the manufacturers intended mission of the device...

gerickson on Apr 05, 2018
