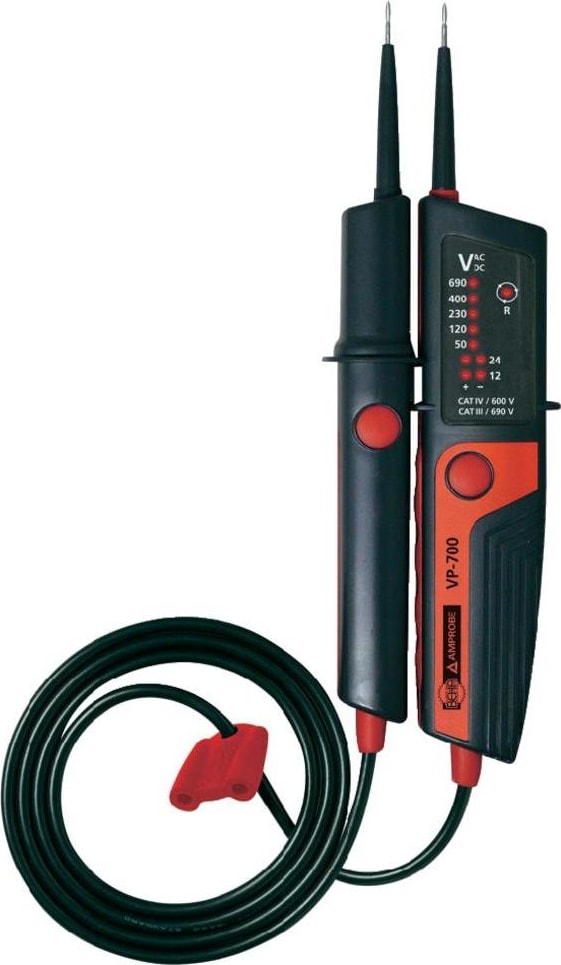

Amprobe VP-700-E Voltage Tester with Phase Rotation

Name: Amprobe VP-700-E Voltage Tester with Phase Rotation
Brand: Amprobe
SKU: AmprobeVP-700-E
Price: 44.23 USD
Availability: InStock

0 reviews | UPC: 095969499682 | Model: Amprobe VP-700-E

Compare

VOLTAGE TESTER W/ PHASE ROTATION, VP-700-E

Voltage test
Two pole phase rotation indication, »no third hand required«
Indication of polarity
Switchable Load of 140 W with two push buttons, tripping of 30 mA RCD
IP 64, splash-proof and dust-tight protection
Probe tip protection for reducing the danger of injuries (attached to lead - permantly available)
No unawared tripping of RCD
No battery required
Quick single-hand on 19 mm contact distance outlets, without removing test probe from instrument

View Product Details

List Price: $59.95

In Stock:

View Payment Options

Recommended for you

Display	LED row ±12, ±24, 50, 120, 230, 400, 690 V
Voltage range	12...690 V AC/DC
Frequency range	DC, 40…70 Hz
Voltage AC/DC automatic indication
Internal load	approx. 2,4 W at 690 V
Test current	≤ 3,5 mA (without use of push buttons)
Switchable load	approx. 140 W at 690 V (with use of push buttons, temporary)
Test current with load	≤ 200 mA (with use of push buttons)
Operation time (DT)	30 s
Power Supply	from test object
Auto-Power-On	> 12 V AC/DC, with use of push buttons > 24 V AC/DC, without use of push buttons
Phase Rotation Indication
Voltage range	100...400 V AC (against earth)
Frequency range	40…70 Hz
Measurement category	CAT IV / 600 V, CAT III / 690 V
Pollution degree	2
Protection degree	IP 64, splash-proofed and dust-tight protection
Safety complying to	EN 61243-3
Dimensions	approx. 280 x 78 x 35 mm
Weight	approx. 255 g
