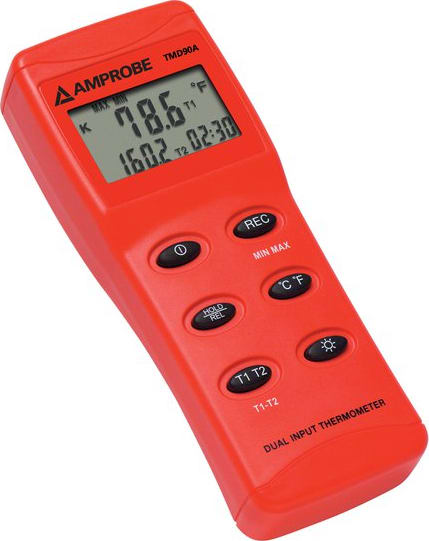

Amprobe TMD90A Digital Thermometer

Name: Amprobe TMD90A Digital Thermometer
Brand: Amprobe
SKU: AmprobeTMD90A
Price: 118.01 USD
Availability: InStock

0 reviews | UPC: 095969398893 | Model: Amprobe TMD90A

Compare

DUAL INPUT DIGITAL THERMOMETER, -200 TO 1760 DEGREE C

High accuracy, multiple type input thermometer
Displays T1, T2, and T1-T2 simultaneously
Accepts six different thermocouple types
Outputs real time measurement data with time stamp
Measures from -328°F / -200°C to 3200°F / 1760°C
Deluxe carrying case and two Type K probes
RS232 output with optional cable and software, TM-SW

View Product Details

List Price: $159.95

In Stock:

View Payment Options

Recommended for you

The TMD90A is a dual input thermometer that offers a wide temperature range and accepts type K, J, T, R, S, and E thermocouples and is ideal for HVAC/R technicians, electricians, research, industrial process, and quality control. The dual inputs allow easy super-heat and sub-cool temperature measurement as well as cut-out and in temperature measurements. The triple display with backlight shows T1, T2, and T1 - T2 and includes hold, min/max, relative, and timer/date stamp functions.

The TMD90A supports dual channel real time data acquisition using the built-in RS-232 interface and optional software and data transfer cable (Model TM-SWA).

Operating conditions	0°C to 50°C (32°F to 122°F) at 0 to 85 % R.H. (non-condensing)
Ambient coefficient	0°C to 18°C and 28°F to 50°C (ambient temperatures) for each °C ambient below 18°C or above 28°C, add the following tolerance into the accuracy spec: 0.01 % of reading +0.03°C (0.01 % of reading +0.06°F)
Temperature Accuracy
T/C Type	Range	Resolution	Accuracy
Type K	-200 °C to 1370 °C (-328 °F to 2498 °F)
Type J	-200 °C to 760 °C (-328 °F to 1400 °F)
Type T	-200 °C to 390 °C (-328 °F to 730 °F)
Type R and S	0 °C to 1760 °C (32 °F to 3200 °F)
Type E	-200 °C to 736 °C (-328 °F to 1832 °F)
Type K	-200 °C to 650 °C 651 °C to 1370 °C -328 °F to 1000 °F 1001 °F to 2498 °F	0.1 °C 1.0 °C 0.1 °F 1.0 °F	(0.1 % rdg + 0.7 °C) (0.1 % rdg + 0.7 °C) (0.1 % rdg + 1.4 °F) (0.1 % rdg + 1.4 °F)
Type J	-200 °C to 500 °C 501 °C to 760 °C -328 °F to 940 °F 941 °F to 1400 °F	0.1 °C 1.0 °C 0.1 °C 1.0 °F	(0.1 % rdg + 0.7 °C) (0.1 % rdg + 0.7 °C) (0.1 % rdg + 1.4 °F) (0.1 % rdg + 1.4 °F)
Type T	-200 °C to 390 °C -328 °F to 730 °F	0.1 °C 0.1 °F	(0.1 % rdg + 0.7 °C) (0.1 % rdg + 1.4 °F)
Type R/S	0 °C to 1000 °C 1001 °C to 1760 °C 32 °F to 1000 °F 1001 °F to 3200 °F	0.1 °C 1.0 °C 0.1 °F 1.0 °F	(0.3 % rdg + 0.7 °C) (0.3 % rdg + 0.7 °C) (0.1 % rdg + 1.4 °F) (0.1 % rdg + 1.4 °F)
Type E	-200 °C to 380 °C 381 °C to 736 °C -328 °F to 720 °F 721 °F to 1832 °F	0.1 °C 1.0 °C 0.1 °F 1.0 °F	(0.3 % rdg + 0.7 °C) (0.3 % rdg + 0.7 °C) (0.1 % rdg + 1.4 °F) (0.1 % rdg + 1.4 °F)

Tech Specs

Test Equipment General Attributes
Product Height	2.20 IN
Product Length	11.50 IN
Product Width	7.50 IN
ECCN Number	EAR99
Country of Origin	China
Shipping Height	2.20 IN
Shipping Length	11.50 IN
Shipping Width	7.50 IN
