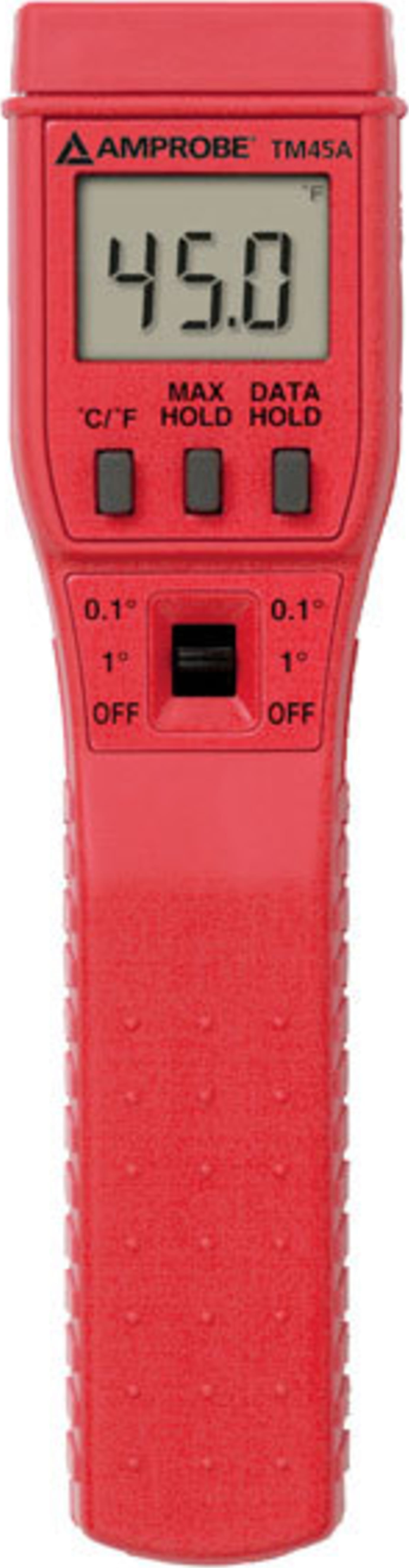

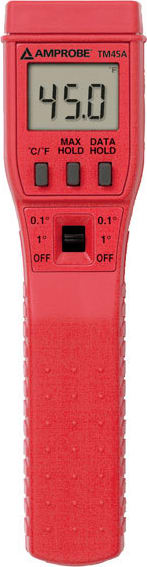

Amprobe TM45A Discontinued Products

Name: Amprobe TM45A Discontinued Products
Brand: Amprobe
SKU: AmprobeTM45A
Price: 60.46 USD
Availability: InStock

0 reviews | UPC: 0 95969 41473 9 | Model: Amprobe TM45A

Compare

3 1/2 DIGIT THERMOMETER, STICK STYLE

View Product Details

List Price: $81.95

In Stock:

Recommended for you

General Specifications

Display	31 ⁄2 dgt LCD, 1999 counts
Display Update Rate, Digits	2.5/sec, nom.
Power Supply	Four 1.5 V AAA size UM-4 R03 batteries
Battery Life (typical)	200 hours zinc-carbon
Low Battery Indication	When battery voltage drops below operating level
Operating Temperature	0°C to 50°C, < 80 % R.H.
Storage Temperature	- 20°C to 60°C, < 70 % R.H., battery removed
Dimensions	(HxWxD) 170 mm x 44 mm x 40 mm (6.7 in x 1.73 in x 1.57 in)
Weight	(including batteries) 250 g (9 oz)
Input Connector	Accepts standard miniature thermocouple connectors (flat blades, spaced 7.9 mm, center to center)


Electrical Specifications (23 °C ± 5 °C, < 75 % R.H. non-condensing) (for 1 year, not including thermocouple error)

Function	Range	Accuracy
Temperature
°C Mode	- 50.0 °C to 199.9 °C, 0.1 °	± (0.3 % rdg + 1 °C)
	- 50 °C to 1000 °C, 1 °	± (0.3 % rdg + 1 °C)
	1001 °C to 1300 °C	± (0.5 % rdg + 1 °C)
°F Mode	- 58.0 °F to 199.9 °F, 0.1 °	± (0.3 % rdg +2 °F)
	- 58 °F to 1832 °F, 1 °	± (0.3 % rdg +2 °F)
	1833 °F to 1999 °F	± (0.5 % rdg +2 °F)
Resolution, selectable	0.1 ° or 1 °
Temperature Coefficient	0.1 times the applicable accuracy specification per °C from 0 °C to 18 °C and 28 °C to 50 °C
Supplied Temperature Probe
Probe Type	1.2 m (4 foot) type K thermocouple bead probe (teflon tape insulated)
Probe Accuracy	± 2.2 °C or ± 0.75 % of reading (whichever is greater) from 0 °C to 800 °C
Maximum Insulation Temperature	260 °C (500 °F)
Overload Protection
Temperature	24 V AC or DC
