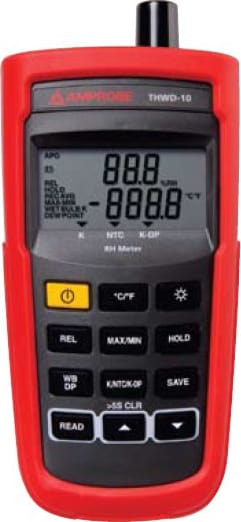

Amprobe THWD-10 RH Meter

Name: Amprobe THWD-10 RH Meter
Brand: Amprobe
SKU: AmprobeTHWD-10
Price: 132.76 USD
Availability: InStock

0 reviews | UPC: 095969556736 | Model: Amprobe THWD-10

Compare

RH METER

View Product Details

List Price: $179.95

In Stock:

Recommended for you

GENERAL SPECIFICATIONS
Display	5 digit liquid crystal display (LCD)
Polarity	Automatic, positive implied, negative polarity indication
Low Battery Indication	The battery icon is displayed when the battery voltage drops below the operating level
Operating Environment	0°C to 50°C (32°F to 122°F) <80% R.H.
Auto power off	5 minutes
Storage Environment	-20°C to 60°C (-4°F to 140°F) <70% R.H. with battery removed from meter
Accuracy	Stated accuracy at 23°C ±5°C, <75% R.H.
Battery	1.5Vx4pcs AAA size
Battery Life	200 hours typical
Dimensions	L241.3 X W157.98 X H76.2mm (9.5 X 6.22 X 3 in)
Weight	Approx. 286g (0.63 lb) including batteries

ELECTRICAL SPECIFICATIONS
Temperature Scale	Celsius or Fahrenheit user-selectable
Measurement Range	K-Type -50°C to 1000°C, (-50°F to 1832°F)
Resolution	0.1°C or 0.2°F
Accuracy	Accuracy is specified for operating temperatures over the range of 18°C to 28°C (64°F to 82°F), for 1 year, not including thermocouple error. ±(0.1% rdg + 1°C) on -50°C to 1000°C ±(0.1% rdg + 2°F) on -50°F to 1832°F ±(0.05% rdg + 1.4°F) -58°F to -328°F
Sensor	Thermistor temperature sensor
Range	0°C to 60°C, (32°F to 140°F)
Resolution	0.1°C/°F
Accuracy	±2°C on 0°C to 10°C ±0.5°C on 10°C to 45°C ±2°C on 45°C to 60°C ±4°F on 32°F to 50°F ±1°F on 50°F to 113°F ±4°F on 113°F to 140°F
RELATIVE HUMIDITY
Sensor	Capacitive Humidity Sensor
Range	0% to 100% RH
Accuracy	±2.5% at 25°C (77°F), 10% to 90% RH, ±5% at 25°C (77°F), 0% to 10% RH, 90% to 100% RH
Sensor Response Time for 90% of Total Range	60 sec typical
Sensor Hysteresis (excursion of 10% to 90% to 10% RH)	±1%RH typical
Temperature	0.1 times the applicable accuracy
Coefficient	Specification per °C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)
Input Protection	24V dc or 24V ac rms maximum input Voltage on any combination of input pins
Input Connector	Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm, center to center)

Test Equipment General Attributes
Product Height	3.00 IN
Product Length	7.50 IN
Product Width	11.00 IN
ECCN Number	EAR99
Country of Origin	Taiwan
Shipping Height	3.00 IN
Shipping Length	7.50 IN
Shipping Width	11.00 IN
