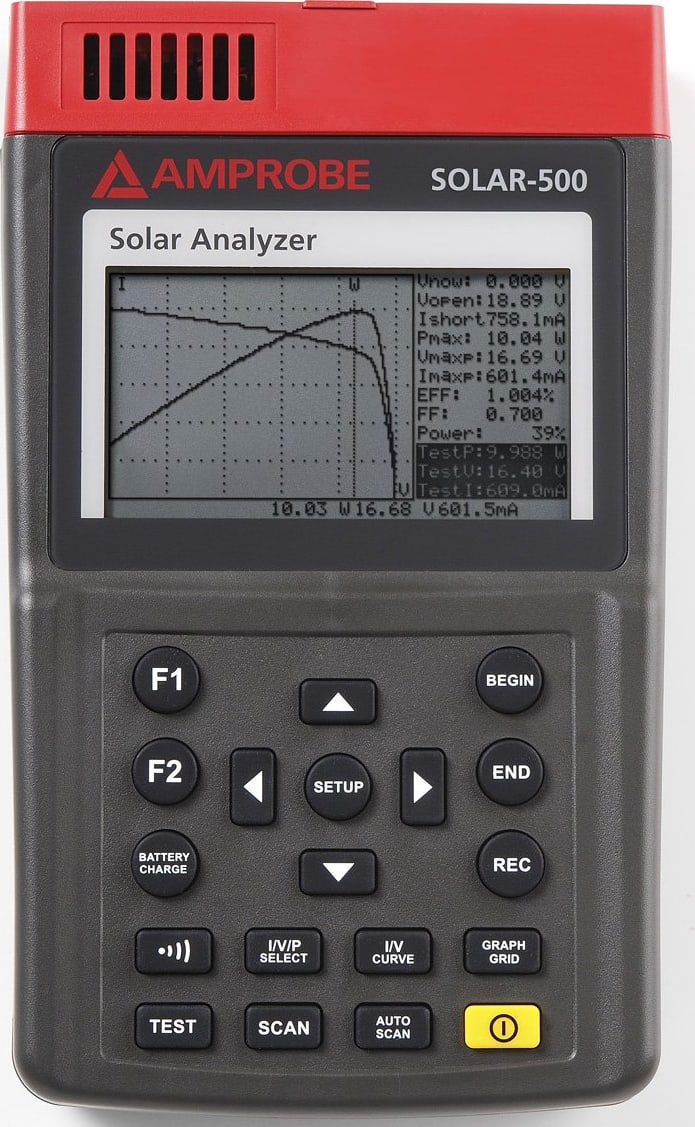

Amprobe SOLAR-500 Solar Analyzer

Name: Amprobe SOLAR-500 Solar Analyzer
Brand: Amprobe
SKU: AmprobeSOLAR-500
Price: 1844.34 USD
Availability: InStock

0 reviews | UPC: 095969499224 | Model: Amprobe SOLAR-500

Compare

SOLAR ANALYZER

View Product Details

List Price: $2,499.95

In Stock:

Recommended for you

DC Voltage Range	0~6V / 6~10V / 10~60V
Resolution	0.001V / 0.001V / 0.01V
Accuracy	±1% ± (1% of Vopen ± 9 mV) / ±1% ± (1% of Vopen ± 0.09 V) / ±1% ± (1% of Vopen ± 0.09 V)
DC Current Range	0~0.6A / 0.6~1A / 1~6A
Resolution	0.1mA / 0.1mA / 1mA
Accuracy	±1% ± (1% of Ishort ± 0.9 mA) / ±1% ± (1% of Ishort ±9 mA) / ±1% ± (1% of Ishort ±9 mA)
Battery Type	1.2V AA rechargeable battery x 8 (2500mAh)
AC Adaptor	AC 110V or 220V input, DC 12V/3A output

Power Measurement/Solar Analyzer Template
I-V Curve Test	Yes
Auto Scan for Power Pmax	Yes
Vmax @ Pmax	Yes
Imax @ Pmax	Yes
Vopen	Yes
Ishort	Yes
Test Equipment General Attributes
Unique Features	I-V Curve test for solar cell Maximum Solar Power (Pmax) search by auto-scan (60V, 6A) Maximum Voltage (Vmaxp) at Pmax Maximum Current (Imaxp) at Pmax Voltage at open circuit (Vopen) Current at short circuit (Ishort) I-V curve with cursor Calculation of panel efficiency (%) Manual single point test
Warranty	1 YEARS
Interfaces I/O	RS-485
Product Weight	2.6 LBS
Product Height	2.2 IN
Product Length	10.1 IN
Product Width	6.1 IN
Data Logging	Yes
Power Supply Voltage	120V 50/60 Hz, 220V Only, Battery Powered
Country of Origin	Taiwan
Shipping Height	7.25 IN
Shipping Length	11.00 IN
Shipping Width	8.00 IN
