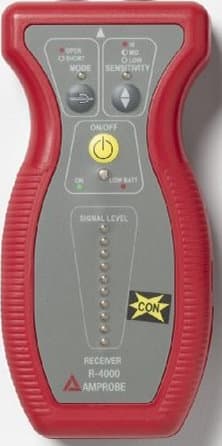

Amprobe R-4000 CON Reciever
Using the R-4000 Receiver
1. Turn the R-4000 "ON" by pressing the Power ON/OFF push button
2. Select the "High" sensitivity by pressing the sensitivity push button(LED "ON").
3. Select the appropriate mode by pressing the MODE push button (LED "ON" : Open tracing; LED "OFF" : Short tracing)
4. If the indication on the display is too strong (7-10 LEDs), change the sensitivity level to MID (LED "blinking").
IMPORTANT: Always conclude your tracing with the "MID" or "LOW" sensitivity because the built in detector has a 360° detection range. It will be a good idea to have the transmitter on the low signal transmission depending on the length of the wire you are tracing.
5. When tracing, move the R-4000 back and forth slowly over the path of the wire. The strongest signal confirms the path of the wire.

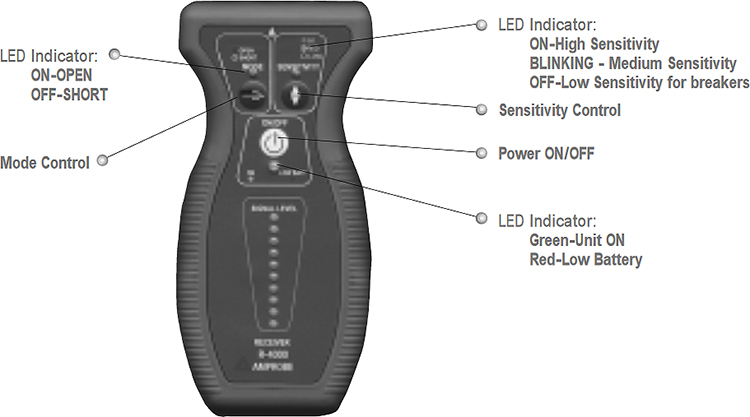

Unit Description
