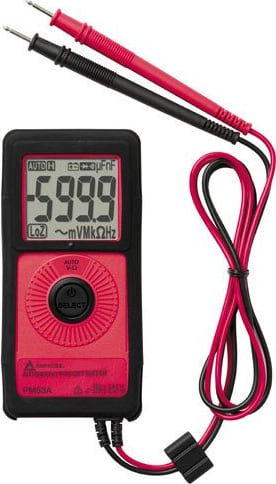

| Function |
Range |
Accuracy |
| RF field @ 3 V/m |
|
Specified accuracy + 45 d
(capacitance not speci?ed) |
| DC Voltage |
| |
6.000 V |
± (0.5 %+3 dgt) |
| |
60.00 V |
± (1.0 %+5 dgt) |
| |
450.0 V |
± (1.2 %+5 dgt) |
| NMRR > 30 dB @ 50 Hz/60 Hz |
|
> 30 dB @ 50 Hz/60 Hz |
| CMRR |
|
> 100 dB @ DC, 50 Hz/60 Hz; Rs=1 kW |
| Input impedance |
AutoTect™ Lo-Z V AC: 160 kW, 160 pF nominal |
| V DC AutoTect™ threshold > |
|
> +1.2 V DC or < -0.6 V DC nominal |
| AC Voltage |
| 50 Hz - 60 Hz |
6.000 V, 60.00 V, 450.0 V |
± (1.5 %+5 dgt) |
| CMRR |
|
> 60 dB @ DC to 60 Hz, Rs=1 kW |
| Input impedance |
|
AutoTect™ Lo-Z V AC: 160 kW, 160 pF nominal |
| Hi-Z ACV 5 MW, 90 pF nominal |
|
| ACV AutoTect™ threshold |
|
> 1.5 V AC (50 Hz/60 Hz) nominal |
| Capacitance |
| |
100.0 nF, 1000 nF, 10.0 µF |
|
| |
100.0 µF |
± (3.5 %+6 dgt) |
- Accuracy below 50 nF is not specified
- Accuracies with ?lm capacitor or better
- Top range. Updates > 1 minute on large values
- Speci?ed with battery voltage above 2.8 V (half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approx. 2.4 V.
|
| Resistance |
| |
6.000 kΩ |
± (1.2%+6 dgt) |
| |
60.00 kΩ, 600.0 kΩ |
± (1.0%+4 dgt) |
| |
6.000 MΩ |
± (2.0%+4 dgt) |
| Open circuit voltage |
|
0.4 V DC typical |
- AutoTect is for 6.000 kW ~ 6.000 MW ranges
- Add 40 dgt to speci?ed accuracy while reading is below 20% of range
|
| Frequency |
| |
100 Hz, 1 kHz, 10 kHz |
± (0.5 %+4 dgt) < 20 V Sine-RMS |
| Sensitivity (Sine-rms): Hz in Auto-VW position:> 3 V |
| VolTect |
| Typical voltage |
Bar graph indication |
| 15 V to 55 V |
- |
| 30 V to 85 V |
-- |
| 55 V to 145 V |
--- |
| 85 V to 190 V |
---- |
| above 120 V |
----- |
| Indication |
Bar graph segments & audible beep tones proportional to field strength |
| Detection frequency |
50/60 Hz |
| Detection antenna |
Top left corner of the meter |
| Audible Continuity Tester |
| Open circuit voltage |
0.4 V DC typical |
|
| Audible threshold |
175 Ω |
±125 Ω |
