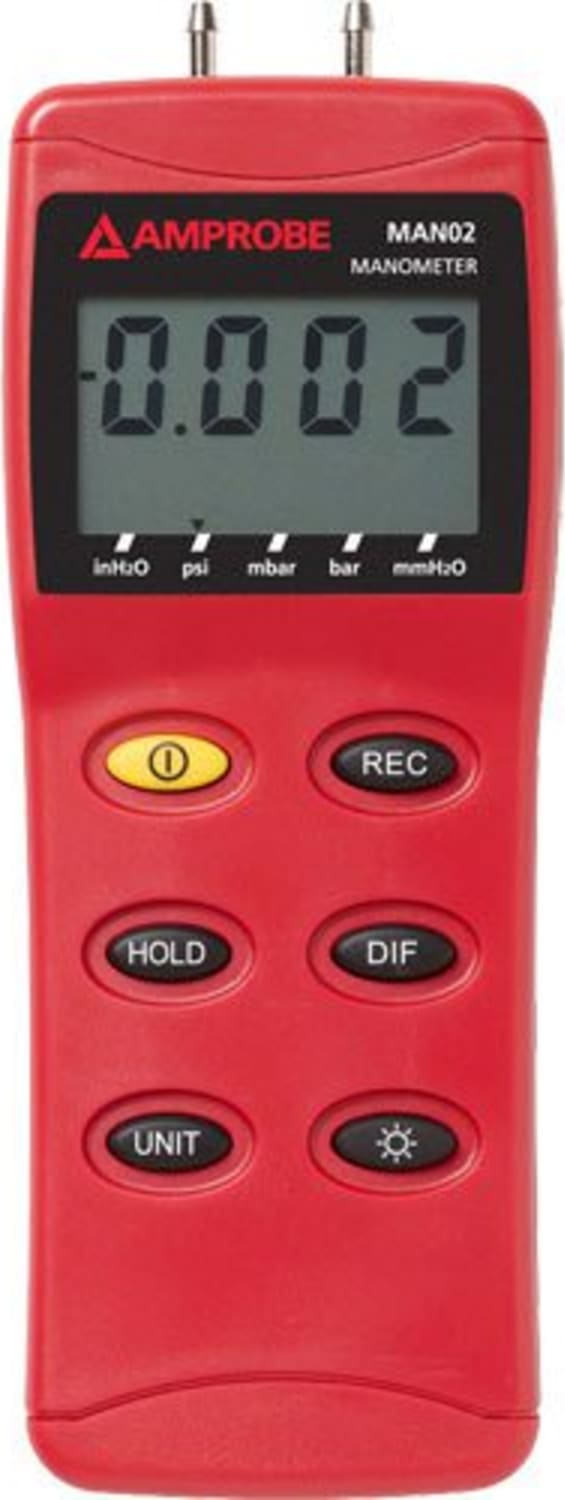

Amprobe MANO2-A Manometer for Differential Pressure with USB

Name: Amprobe MANO2-A Manometer for Differential Pressure with USB
Brand: Amprobe
SKU: AmprobeMANO2-A
Price: 179.26 USD
Availability: InStock

0 reviews | UPC: 095969499859 | Model: Amprobe MANO2-A

Compare

MANOMETER FOR DIFFERENTIAL PRESSURE W/USB

Also used for pneumatic controls
Five selectable units of measure: In H2O, psi, mbar, bar, mm H2O
Ideal for measuring HVAC/R pressure levels
Also used for pneumatic controls
Offers maximum and minimum value recordings
Data hold
Auto power off function
Large backlight LCD
Built-in RS-232 port downloads information to your PC with optional PC cable and Amprobe’s free download suite software
Includes connection hoses

View Product Details

List Price: $242.99

In Stock:

View Payment Options

Recommended for you

A portable, battery operated pressure measuring device. The right tool for HVAC/R technicians measuring pressure level, or anyone working with valves, control sensors in a pneumatic control environment. Large dual digital display shows gauge or differential pressure values. It also has a relative time clock for measuring when events happen. Such as minimums and maximum values. Or use the RS232 output to record continuous measurement values.

General
Range	0 to ±2 Psi
Accuracy	±0.3% full scale at 25°C (77°F)
Response Time	0.5 second
Sensitivity Resolution	per 0.401 in of H2O 0.001 per 0.0145 Psi 0.1 per mbar
Battery Life	14 hours
Electrical
Battery	1 x 9V Alkaline Battery (NE DA 1604A, IE C 6LR61) included
Mechanical
Dimension	182 x 72 x 30 mm (7.16 x 2.83 x 1.18 in)
Weight	0.220 Kg (0.485 lb)
Case	Hard Carrying Case
Environmental
Operating Humidity	80% RH
Operating Temperature	0 to 50°C / 32 to 122°F
Storage Temperature	-20 to 60°C / -4 to 140°F

Agency Approvals & Certifications	CE

Tech Specs

HVAC Equipment and Instruments/Manometer Template
Type (Manometer)	Digital
Max Pressure	2 psi (55.36 IN of H2O)
Engineering Units (HVAC)	inch H2O, psi
Measurement	Differential, Gauge
Min/Max/Hold	Yes
Anemometer Capability	No
Altitude Capability	No
Test Equipment General Attributes
Unique Features	Also used for Pneumatic controls Five selectable units of measure: InH2O, psi, mbar, bar, mmH2O Ideal for measuring HVAC/R pressure levels Also used for Pneumatic controls Offers Maximum and Minimum value recordings, Data Hold Auto power off function, Large backlight LCD Built-in RS-232 port downloads information to your PC with optional PC cable and Amprobe’s free Download Suite software Includes connection hoses
Warranty	1 YEARS
Product Weight	0.485 LBS Product Weight 0.220 Kg
Product Height	1.18 IN
Product Length	7.16 IN Product Length 182 x 72 x 30 mm
Product Width	2.83 IN
Data Logging	No
Country of Origin	China
Shipping Height	2.55 IN
Shipping Length	11.75 IN
Shipping Width	7.95 IN
