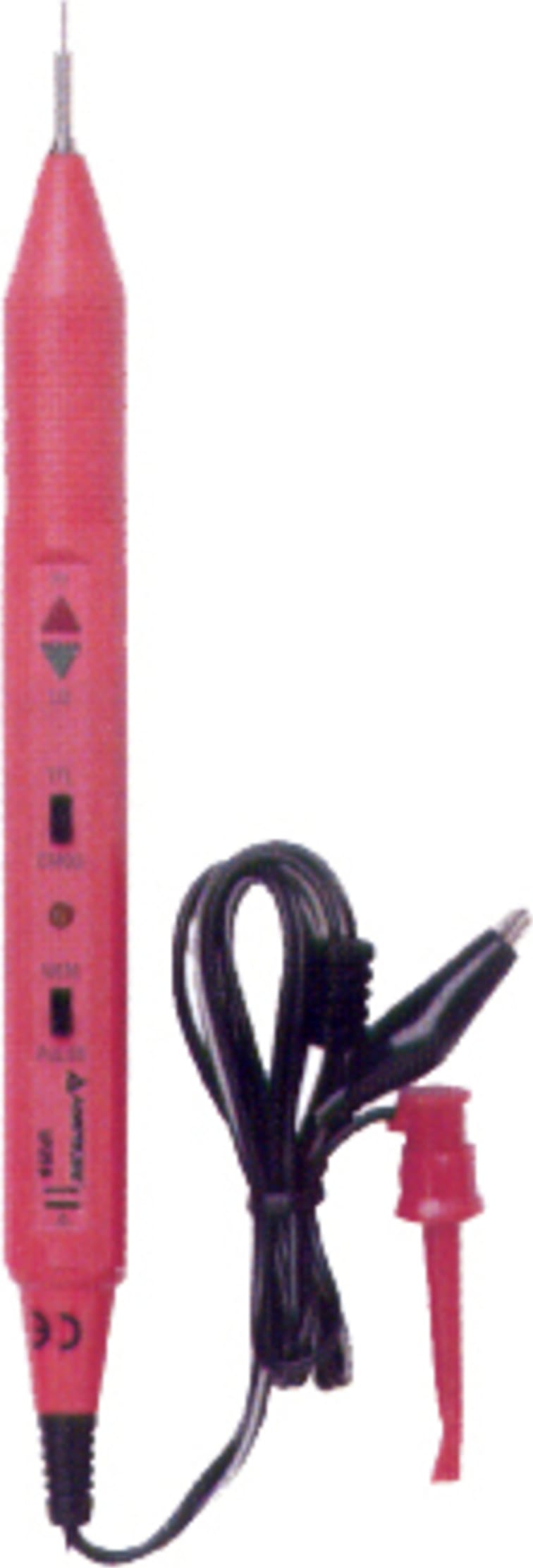

Amprobe LP10B Logic Probe

Name: Amprobe LP10B Logic Probe
Brand: Amprobe
SKU: AmprobeLP10B
Price: 15.46 USD
Availability: InStock

0 reviews | UPC: 095969414760 | Model: Amprobe LP10B

Compare

LOGIC PROBE, 17MHZ

Pen-size logic probe
Troubleshoot and analyze digital logic circuits
Evaluates most common circuits. Detects pulses>30 ns up to 17 MHz,TTL, CMOS levels and dual LEDs indicate hi/lo state.

View Product Details

List Price: $20.95

In Stock:

Recommended for you

Accessories/Probes/Logic Probes Template
Max Input Frequency	17 MHz
Minimum Detectable Pulse Width	30 ns
Input Impedance	1 M Ohms
TTL/CMOS Selectable	Yes
Pulse Function	Yes
Visual Indication	Yes
Audible Indication	No
Logic Capability	CMOS, TTL
Reverse Polarity Protection	No
Test Equipment General Attributes
Unique Features	Pen-size logic probes Troubleshoot and analyze digital logic circuits LP10B: Evaluates most common circuits. Detects pulses>30 ns up to 17 MHz,TTL, CMOS levels and dual LEDs indicate hi/lo state.
Warranty	1 YEARS
Product Weight	1.3 OUNCES (0.081 LBS) Product Weight 38.1gr.
Product Height	0.7 IN
Product Length	8.2 IN Product Length 210 mm x 18 mm x 18 mm
Product Width	0.7 IN
Data Logging	No
Battery Type	Other Battery Type 5 - 15 V DC
Power Supply Voltage	Battery Powered Power Supply Voltage 5 - 15 V DC
Country of Origin	United States
Shipping Height	0.60 IN
Shipping Length	10.00 IN
Shipping Width	3.80 IN
