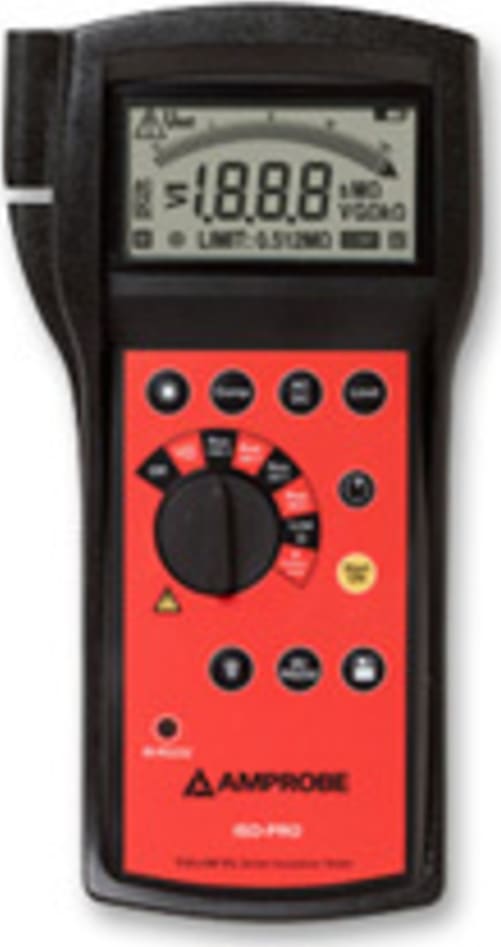

Amprobe ISO-PRO Telaris Series Insulation Tester

Name: Amprobe ISO-PRO Telaris Series Insulation Tester
Brand: Amprobe
SKU: AmprobeISO-PRO
Price: 553.28 USD
Availability: InStock

0 reviews | UPC: 0 95969 43620 5 | Model: Amprobe ISO-PRO

Compare

TELARIS SERIES INSULATION TESTER

Insulation measurement
Low Ohm measurement
Voltage measurement
Integrated memory for approx. 500 measurement values
Standard, built-in IR RS-232 interface for transferring measurement data to the PC
Software es control for recording test results is available as option
Pre-setable limit values for insulation measurement
Test lead compensation function for exact zero adjustment
Additional analogue bargraph for insulation measurement
Clear and large LCD providing the user with an optimum visual indication of both test values and limits
Backlight
Auto power off
Adjustable measurement value timer allows measurements over a longer time period
Test of trip voltage of overvoltage protection devices
Insulation measurement of floor and wall resistance

View Product Details

List Price: $749.95

In Stock:

Recommended for you

Display	LCD, 3½ digit, 1999 Count with Bargraph
Insulation Resistance Tester	0.005 to 1.999 MΩ / 1kΩ 2 to 19.99 MΩ / 10kΩ 20 to 199.9 MΩ / 100kΩ 200 to 1999 MΩ / 1MΩ
Insulation Test Voltage / Current	100/250/500/1000 V DC / < 2 mA
Timer Function	0, 10, 30, 180 s (selectable)
Voltage Protection level	10 to 1000 V DC, 6 to 625 V AC / 0 to 1000 V DC
Voltage Measurement/ Resolution	0 to 600 V AC; 0 to 600 VDC / 1 V
Low Ohm Measurement / Resolution	0.03 to 19.99 Ω / 0.01 Ω
Memory	approx. 500 Values
Safety Compliance	IEC 61010/EN 61010/DIN VDE 0411/IEC 61557/EN61557/DIN VDE 0413
Overvoltage category	CAT III/600 V
Pollution Degree	2
Power Supply	6 x 1.5 V, IEC LR6
Dimensions	235 x 105 x 70 mm
Weight	approx. 660g

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 100 V
Maximum Insulation Resistance	1999 M Ohms (2.00 G Ohms)
Minimum Insulation Resistance	0.005 Ohms (0.000000000005 G Ohms)
Variable Incremental Voltage	No
Continuity Test	No
Live Circuit Voltage Detection	No
Timer	Yes Timer 0,10,30,180S selectable
CAT Rating	III
Test Equipment General Attributes
Interfaces I/O	RS-232
Product Weight	600 GRAMS (1.32 LBS)
Product Height	70 MM (2.76 IN)
Product Length	235 MM (9.25 IN)
Product Width	105 MM (4.13 IN)
Data Logging	Yes Data Logging 500 measurement values
HTS/Schedule B Number	9030390100
ECCN Number	3A992
Power Supply Voltage	Battery Powered
Shipping Height	4.10 IN
Shipping Length	15.10 IN
Shipping Width	11.10 IN
