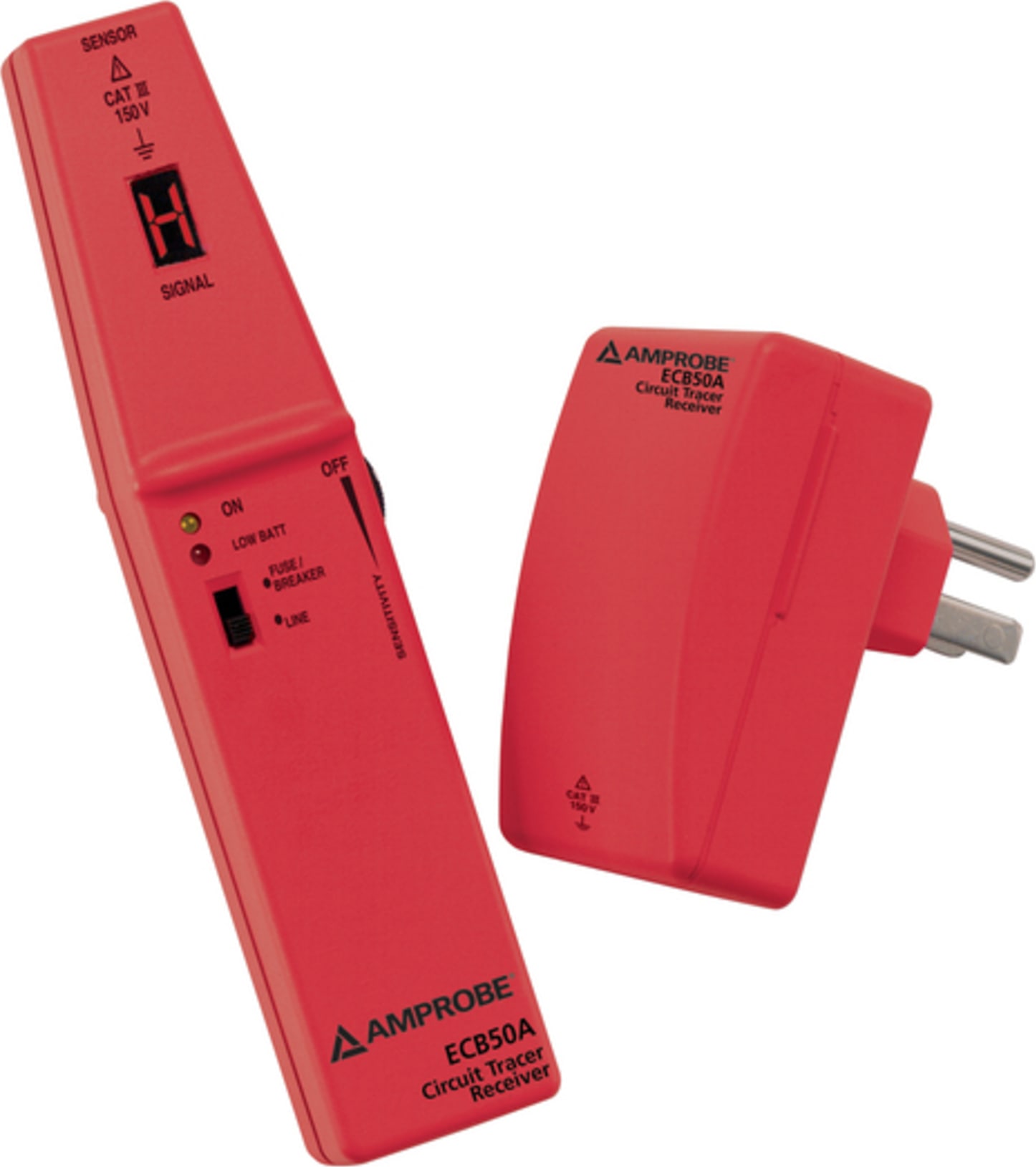

Amprobe ECB50A Circuit Breaker Finder, SHUKO Version

Name: Amprobe ECB50A Circuit Breaker Finder, SHUKO Version
Brand: Amprobe
SKU: AmprobeECB50A-FGIS
Price: 51.38 USD
Availability: InStock

0 reviews | UPC: 095969414883 | Model: Amprobe ECB50A-FGIS

Compare

CIRCUIT BREAKER FINDER, SHUKO VERSION

Three testers in one:
Identify circuit breaker to an electrical socket
Trace AC cables in walls
Sort wires in a bundle
Microprocessor controlled
Coded transmission allows easy separation of transmitter signal
Audible and visual indicators
Low battery indicator
Cable tracing depth – up to 40 cm
NEMA 5-15 plug

View Product Details

List Price: $69.95

In Stock:

View Payment Options

Recommended for you

General Specifications
Transmitter
Operating temperature range	-10 °C to 40 °C (14 ° to 104 °F ) at max 80 % R.H.
Dimensions	70 x 55 x 86 mm (2.8 x 2.1 x 3.4 in)
Weight	Approximately 65 g (2.3 oz)
Overvoltage	category CAT III 150 V
Pollution degree	2, Protection Class: IP20
Receiver
Sensitivity setting	Using On/Off control
Low battery indication	7.5 V
Switching fuse/cable	manually using Fuse-Line switch
Operating temperature range	-10 °C to 40 °C (14 ° to 104 °F) at max 80 % R.H.
Dimensions	22 x 162 x 34 mm ( 0.9 x 6.4 x 1.3 in)
Weight	Approximately 100 g (3.5 oz)
Overvoltage	category CAT III 300 V
Pollution degree	2, Protection Class: IP20
Power supply	9 V battery, IEC 6LR61, Alkaline only
Applicable directives	EMC: EN 50081-1 and EN 50082-1, EN61010-1:2001 and standards

Mechanical Specifications (Valid for 23 °C ± 5 °, for less than 80 % relative humidity)
Transmitter
Voltage range	100 V to 250 V
Power consumption	Approximately 1 W
Frequency range	50/60 Hz
Transmission frequency	Approximately 8 kHz
Transmitter frequency	Approximately 10 Hz
Receiver
Tracing depth for fuse	Approximately 0 to 10 cm (4 in) depending on local conditions
identification
Tracing depth for cable location	Approximately 0 to 40 cm (15 in) depending on local conditions
