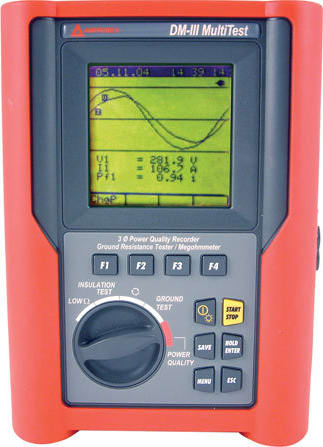

POWER QUALITY ANALYZER/ DATA LOGGER:

• Discontinued by Amprobe but still sold under the OEM as ZG47.
  True RMS (TRMS)
• - Measures and Records Broad Spectrum of Power Quality
• Parameters: AC Current, AC Voltage to 600V including Sags and Surges, Harmonics (THD &amo; individual up to 49th), Active, Reactive and Apparent Power & Energy, Peak Demand, Power Factor, Frequency measurement, Phase sequence
• Compatible with wide range of Current Transducers
  • DM-CT-100: 0.5A to 100A
  • DM-CT-HTA: 5 - 1000A
• Comes as a complete kit; CTs, Voltage Leads, Ground Probes & Leads, PC software and download cable are included with this product.
• Works with single and three phase systems (Y and Delta)
• Detects and records voltage anomalies, Sags and Surges
• Built in scope displays waveforms
• Phase sequence indication
• Records up to 64 parameters (single or three phase) simultaneously
• Manual and programmable recording Start and/or Stop
• Password protection
• Selectable fundamental frequency of 50 or 60 Hz
• Special data compression system and user selectable rates allow recording from several hours to several years
• Download capabilities, Windows compatible PC software
• Displacement power factor for power factor correction determination
• Line or battery powered
• Safety: CATIII, 600V Phase to phase, CATIII, 300V Phase to ground, EN 61010-1+A2(1996)

MEGOHMMETER FUNCTIONS:

• Tests insulation integrity of wires, cables, transformers and electrical motors
• Selectable test voltages up to 1000V
• Programmable timer to perform the Dielectric Absorption Ratio Test
• Sensitive Ohmmeter for checking resistance of motor windings
• Selectable polarization of ohmmeter for checking grounding continuity
• Automatic voltmeter protects against misuse on hazardous energized systems

GROUND RESISTANCE & RESISTIVITY FUNCTIONS:

• Three measuring modes;
  a) 2 point continuity/resistance test
  b) 3 point Fall of Potential test
  c) 4 point Earth Resistivity measurement
• Automatic voltage measurement prevents false measurements
• Automatically applies three testing frequencies for the most accurate readings
• Accumulates the average of multiple tests and displays the individual test results and the number of tests.
• Detects faulty test conditions such as poor soil conditions and noise at the inputs.
• Limited Life Time Warranty

PHASE SEQUENCE:

• Phase sequence indication
• Frequency measurement
• Phase – to – Phase voltage measurement.
