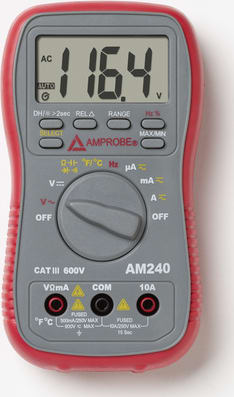

Amprobe AM-240 Digital Multimeter

Name: Amprobe AM-240 Digital Multimeter
Brand: Amprobe
SKU: AmprobeAM-240
Price: 51.61 USD
Availability: InStock

0 reviews | UPC: 0 95969 36603 8 | Model: Amprobe AM-240

Compare

DIGITAL MULTIMETER W/TEMPERATURE

Measure: AC/DC Voltage up to 600V, AC/DC
Current up to 10A, Resistance, Capacitance, Frequency, Duty Cycle
Temperature measurement with selectable F/C
AC/DC micro Amps for sensors diagnosis
Large Backlight LCD Display
Diode Test
Audible Continuity Test
Data Hold
MAX, MIN and Relative measurements
Auto and Manual Ranging
Auto Power Off (can be disabled)
Tilt stand
Safety: CAT III 600V
Warranty: Limited Lifetime

View Product Details

List Price: $69.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Amprobe AM-240

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Amprobe AM-240 Digital Multimeter, packs a full set of features into a small package. A large backlit LCD display makes readings of up to 600V AC/DC easy to view. This manual and autoranging multimeter takes many measurements with AC/DC voltage up to 600V, AC/DC current up to 10A, temperature, resistance, capacitance, frequency, duty cycle and microamps.

DC VOLTAGE
RANGE	Accuracy	Resolution
400mV	± ( 0.5%+2 )	0.1mV
4V	( 0.5%+2 )	1mV
40V	( 0.5%+2 )	10mV
400V	( 0.5%+2 )	100mV
600V	± ( 0.8%+3 )	1V
Overload protection	600V DC or AC RMS
Impedance	10M½, More than 100M½ on 400mV range
AC VOLTAGE
RANGE	Accuracy	Resolution
400mV	± ( 1.5%+3 )	0.1mV
4V	± ( 1.0%+2 )	1mV
40V	± ( 1.0%+2 )	10mV
400V	± ( 1.0%+2 )	100mV
600V ± ( 1.5%+3 ) 1V	600V ± ( 1.5%+3 ) 1V	600V ± ( 1.5%+3 ) 1V
Average sensing	Calibrated to RMS of sine wave
Frequency	40 ~ 400Hz
Overload protection	600V DC or AC RMS
Impedance	10M½ , More than 100M½ on 400mV range
DC CURRENT
RANGE	Accuracy	Resolution
400µA	± ( 1.2%+3 )	0.1µA
4000µA	± ( 1.2%+3 )	1µA
40mA	± ( 1.2%+3 )	10µA
400mA	± ( 1.2%+3 )	100µA
4A	1mA	1mA
10A	1mA	10mA
Overload protection	0.5A/250V, 10A/250V fuse
AC CURRENT
RANGE	Accuracy	Resolution
400µA	± ( 1.5%+3 )	0.1µA
4000µA	± ( 1.5%+3 )	1µA
40mA	± ( 1.5%+3 )	10µA
400mA	± ( 1.5%+3 )	100µA
4A	± ( 2.5%+5 )	1mA
10A	± ( 2.5%+5 )	10mA
Average sensing	Calibrated to RMS of sine wave
Frequency	40~400Hz
Overload protection	0.5A/250V, 10A/250V fuse
RESISTANCE
RANGE	Accuracy	Resolution
400½	± ( 1.0%+2 )	0.1½
4k½	± ( 1.0%+2 )	1½
40k½	± ( 1.0%+2 )	10½
400k½	± ( 1.0%+2 )	100½
4M½	± ( 1.0%+2 )	1k½
40M½	± ( 2.0%+3 )	10k½
Overload protection	250V DC or AC RMS
CAPACITANCE
RANGE	Accuracy	Resolution
40nF	± ( 3.0%+10 )	10pF
400nF	± ( 2.5%+5 )	100pF
4µF	± ( 2.5%+5 )	1nF
40µF	± ( 2.5%+5 )	10nF
400µF	± ( 5.0%+10 )	100nF
4000µF	± ( 20.0%+20 )	10µF
Overload protection	250V DC or AC RMS
DIODE AND AUDIBLE CONTINUITY TEST
Description	Test Condition
Display read approximately forward voltage of diode	Forward DC current approx. 0.4mA Reversed DC voltage approx. 2.8V
Built-in buzzer sounds if resistance is less than 50½	Open circuit voltage approx. 0.5V
Overload protection	250V DC or AC RMS
FREQUENCY
RANGE	Accuracy	Resolution
10Hz	± ( 0.1%+5 )	0.01Hz
100Hz	± ( 0.1%+5 )	0.1Hz
1000Hz	± ( 0.1%+5 )	1Hz
10kHz	± ( 0.1%+5 )	10Hz
100kHz	± ( 0.1%+5 )	100Hz
1000kHz	± ( 0.1%+5 )	1kHz
10MHz	± ( 0.1%+5 )	10kHz
Sensitivity	sine wave 0.6V RMS (10MHz: 1.5V RMS)
Overload protection	250V DC or AC RMS
Temperature Measurement
Temperature	-58° to 1382°F / (-50° to 750°C)

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	No
Maximum Voltage AC	600 V
Resolution AC Volts	0.1 mV
Maximum Voltage DC	600 V
Resolution DC Volts	0.1 mV
Maximum Current AC	10 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 uA (0.00010 mA)
Basic Accuracy V DC	± 0.8% Rdg + 3D
Counts	4000 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Duty Cycle %	0.1% to 99.99%
Test Equipment General Attributes
Unique Features	Auto Power Off, MAX, MIN and Relative Measurements, Tilt Stand
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Clamp-on Attachment, Single & Dual Input Thermocouple Adapter, Alligator Clips & Carrying Case
Product Weight	260 GRAMS (0.573 LBS)
Product Height	6.1 IN
Product Length	1.5 IN
Product Width	3.4 IN
Data Logging	No
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Shipping Height	11.00 IN Shipping Height Value not available
Shipping Length	2.25 IN Shipping Length Value not available
Shipping Width	7.50 IN Shipping Width Value not available
