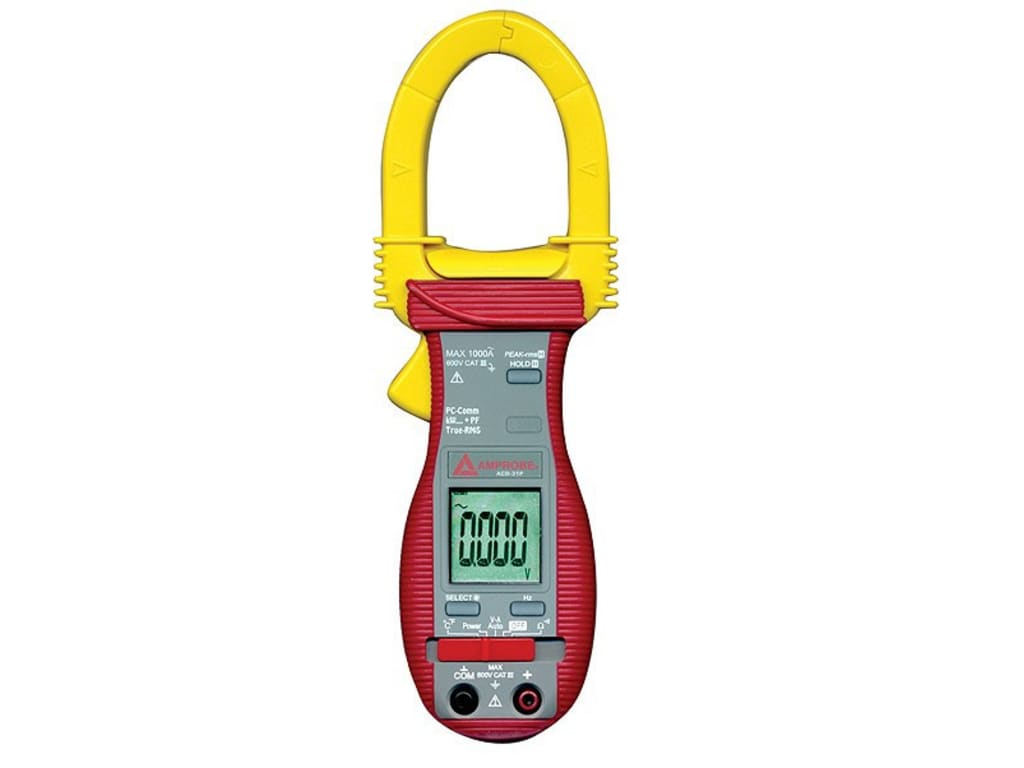

Amprobe ACD-40PQ - 1000A Clamp-on Power Quality Meter with THD-R

Name: Amprobe ACD-40PQ - 1000A Clamp-on Power Quality Meter with THD-R
Brand: Amprobe
SKU: AmprobeACD-40PQ
Price: 146.87 USD
Availability: InStock

0 reviews | UPC: 0 95969 36585 7 | Model: Amprobe ACD-40PQ

Compare

1000A Clamp-on Power Quality Meter with THD-R

TRMS sensing
Measurements: Total Harmonics Distortion THD, AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency, Temperature
AutoVA - Auto Selection of AC Volts, DC Volts
Data-logging 5400 points
Optional PC interface capability
Audible continuity
Auto power off
Automatic polarity
Low battery indication
Data hold

View Product Details

List Price: $199.95

In Stock:

View Payment Options

Recommended for you

Amprobe ACD-40PQ

TRMS sensing
AutoVA - Auto Selection of AC Volts, DC Volts
Large, easy to read LCD display with backlight
Accommodates conductors up to 1.77” (45mm) in diameter
Voltage overload protection for all functions up to 600V AC/DC
Safety CAT III 600V

1000A Clamp-on Power Quality Meter with THD-R

The ACD-40’s provide a simple and effective way to verify if the electrical system is affected by harmonics. Add on troubleshooting capabilities with the ACD-40PQ data logging feature or get complete Power analysis with the ACD-41PQ. Increase measuring efficiency with an optional PC interface kit.

General
TRMS	YES
AC Current	40.0 / 400.0 / 1000 A
AC Current Basic Accuracy	+/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz
DC Voltage	600.0V
DC Voltage Basic Accuracy	+/-(0.5% Rdg + 5 LSD)
AC Voltage	600.0V
AC Voltage Basic Accuracy	+/-(1.0% Rdg + 5 LSD) @ 50 / 60
Resistance	999.9 Ohms
Resistance Basic Accuracy	+/-(1.0% Rdg + 6 LSD)
Frequency	5.00Hz to 500.0Hz
Frequency Basic Accuracy	+/-(0.5% Rdg +4 LSD)
THD-R	0.0% to 99.9%
THD-R Basic Accuracy	1.5% of Reading + 6d @ Fund Frequency
Temperature	-58 F to 572 (-50 C to 300 C)
Temperature Basic Accuracy	+/-(2.0% Rdg + 6F) +/-(2.0 % Rdg + 3C)
Hi-Lo Logging	5400 Points
