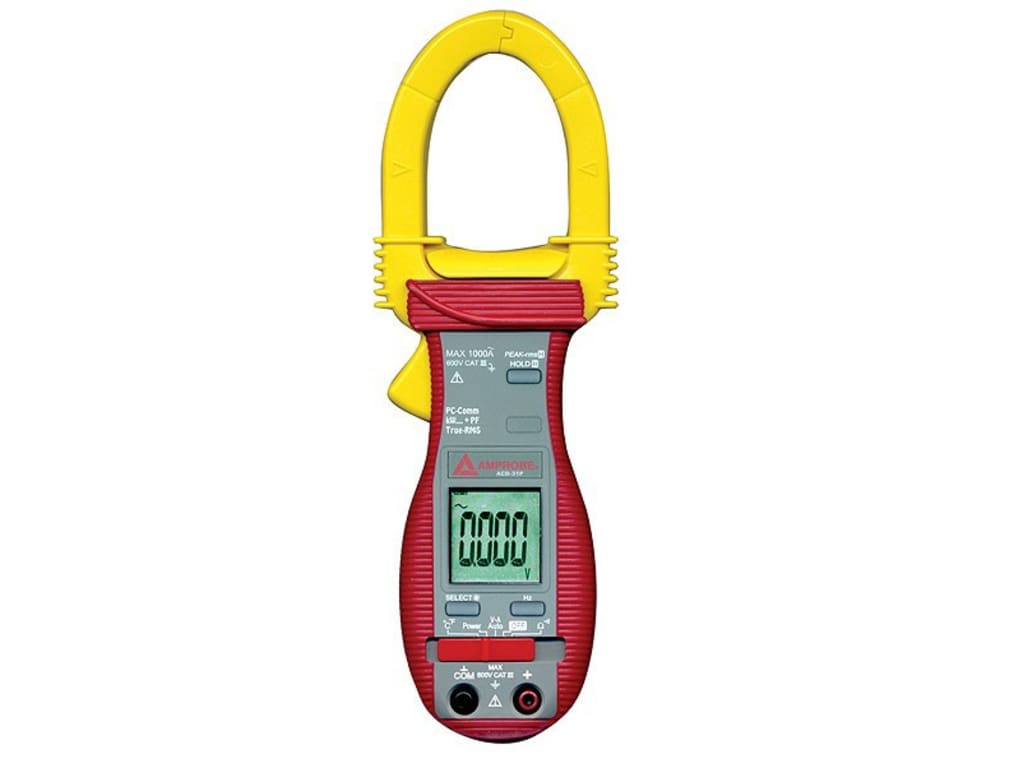

Amprobe ACD-30P - 1000A Clamp-on Power Meter, TRMS

Name: Amprobe ACD-30P - 1000A Clamp-on Power Meter, TRMS
Brand: Amprobe
SKU: AmprobeACD-30P
Price: 147.52 USD
Availability: InStock

0 reviews | UPC: 0 95969 36582 6 | Model: Amprobe ACD-30P

Compare

1000A Clamp-on Power Meter, TRMS

TRMS sensing
AutoVA - Auto Selection of AC Volts, DC Volts or AC Amps
Measurements: AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency, Active (W), Reactive (VAR) & Apparent (VA) Power with dual-display Power Factor readout
Large, easy to read LCD display
Accommodates conductors up to 1.77” (45mm) in diameter
Voltage overload protection for all functions up to 600V AC/DC
Peak hold
Data hold
Safety CAT III 600V
Optional PC interface capability

View Product Details

List Price: $199.95

In Stock:

View Payment Options

Recommended for you

Amprobe ACD-30P

TRMS sensing
AutoVA - Auto Selection of AC Volts, DC Volts or AC Amps
Audible continuity
Auto power off
Automatic polarity
Low battery indication

1000A Clamp-on Power Meter, TRMS

The Amprobe ACD-30P combines the standard features of professional clamp-on meters, with full Power analyzing capabilities! Measure: Active (W), Reactive (VAR), and Apparent (VA) Powers along with dual display Power Factor readout. Increase measuring efficiency with an optional PC interface kit.

General
TRMS	YES
AC Current	40.0 / 400.0 / 1000 A
AC Current Basic Accuracy	+/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz
DC Voltage	600.0V
DC Voltage Basic Accuracy	+/-(0.5% Rdg + 5 LSD)
AC Voltage	600.0V
AC Voltage Basic Accuracy	+/-(0.5% Rdg + 5 LSD) @ 50 / 60 Hz
Resistance	999.9 Ohms
Resistance Basic Accuracy	+/-(1.0% Rdg + 6 LSD)
Frequency	5.00Hz to 500.0Hz
Frequency Basic Accuracy	+/-(0.5% Rdg +4 LSD)
Active Power (W)	0 to 600.0 kW
Active Power (W) Basic Accuracy	+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Reactive Power (VAR)	0 to 600.0 kVAR
Reactive Power (VAR) Basic Accuracy	+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Apparent Power (VA)	0 to 600.0 kVA
Apparent Power (VA) Basic Accuracy	+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th
Power Factor	0.10 to 0.99
Power Factor Basic Accuracy	+/- 3 LSD @ Harmonics Fund to 21th
Safety	CAT III 600V
